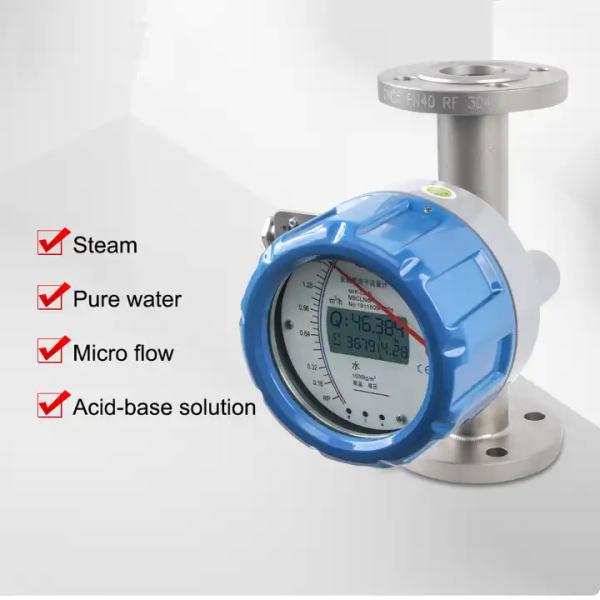

DN15-50 Digital Metal Tube Rotameter LCD Display High Accuracy Flow Meter
DN15-50 Digital Metal Tube Rotameter LCD Display High Accuracy Flow Meter
Specifications
Brand Name :
INSTE
Model Number :
INSTE H250
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
200$-1000$
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets per day
Delivery Time :
3 work days
Packaging Details :
wooden package
Explosion Proof Grade :
Exia II CT5Ga, Exd II BT5Gb
Connection Form :
Stabndard:DIN2501 standard flange
Port :
Shenghai/ Shenzhen
Display Type :
Analog
Installation Height :
250mm
Output :
4-20mA
Scale Units :
L/h
Precision Class :
1.5
Applicable Medium :
Gas, Liquid
Exportation :
Two-wire System 4~20MA
Measurement Range :
0-100 L/min
Connection :
Thread or Flanged
Flow Direction :
Bottom to Top
Warranty :
18 months
Temperature Rating :
Max. 100°C
Operating Temperature :
Max. 80°C
Material :
Metal
Keyword :
metal tube flowmeter
Measuring Medium :
Liquid Gas
After Service :
18 months
Float Material :
Stainless Steel
Tube Length :
200mm
Measuring Tube Material :
316L, 304, 304 lined with PTFE, etc
Accuracy Class :
Standard:1.5; Special: 1.0
Connection Type :
Flange
Delivery :
Express, Ship, Air
Description
DN15-50 Digital Metal Tube Rotameter LCD Display High Accuracy Flow Meter
The DN15-DN50 Digital Metal Tube Rotameter is a high-precision, variable-area flow meter designed for demanding industrial environments. Unlike standard glass-tube meters, these feature a rugged stainless steel structure and a smart LCD transmitter, making them ideal for measuring liquids, gases, and steam under high pressure or extreme temperatures.
Operating Principle
The Metal Tube Rotameter is a variable area flow meter where the differential pressure across the annulus area remains constant. Flow rate is measured as a function of the annulus area created by the float position. The position of the float is sensed by a magnet and indicated on the dial in terms of flow rate.
Technical Specifications
• Line Size: From 15 NB to 100 NB
• Flow Range: Between 25 to 63,000 LPH
• Face to Face Distance: 250 mm
• Accuracy: ±2% of Full Scale
Key Features
  • Cone-shape measuring tube design providing wide measuring range and excellent linearity
  • Wetted parts material options: SS304, SS316L, FEP, Hastelloy C, Titanium
  • Digital LCD display allows on-site flow range correction for different measuring media
  • Supports battery power supply in addition to AC/DC power options
  • HART protocol compatibility for configuration via handheld operator or host computer software
