Active Chlorine Grade Acrylic Rubber 15.6Mpa ACM Rubber Good Molding Flow
Active Chlorine Grade Acrylic Rubber 15.6Mpa ACM Rubber Good Molding Flow
Active Chlorine Grade Acrylic Rubber 15.6Mpa ACM Rubber Good Molding Flow
Active Chlorine Grade Acrylic Rubber 15.6Mpa ACM Rubber Good Molding Flow
Active Chlorine Grade Acrylic Rubber 15.6Mpa ACM Rubber Good Molding Flow
Active Chlorine Grade Acrylic Rubber 15.6Mpa ACM Rubber Good Molding Flow
Specifications
Brand Name :
CHENGUANG FSP
Model Number :
PA-1010A / PA-1010
Place of Origin :
China
Name :
ACM Rubber
Color :
Black / White / as your request
Tensile Strength :
15.60Mpa
Characteristics :
Heat Resistance / Oil Resistance / etc.
Product Feature :
excellent oil and heat resistance,good mold flow
Mooney (ML(1+4)@100°C) :
50
Description

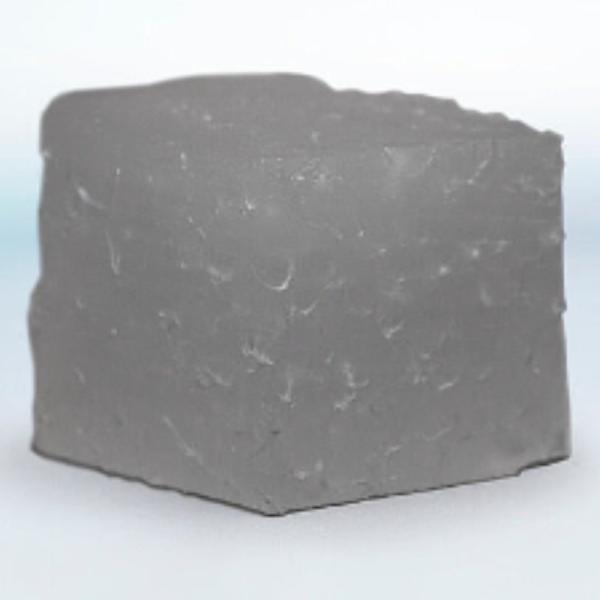

Active Chlorine Grade​ ACM Rubber

DESCRIPTION

Alkyl acrylate copolymer (ACM), commonly referred to as acrylic rubber, displays exceptional resistance to hot oil and oxidation. ACM exhibits a consistent working temperature of 150°C (302°F) and an intermittent threshold of 180°C (356°F). Furthermore, ACM is impervious to ozone and has minimal gas permeability. In comparison to ethylene acrylic rubber (AEM), ACM demonstrates superior resistance to swelling when exposed to mineral oils.

ADVANTAGES

ACM possesses a variety of traits that render it appropriate for use in various demanding applications. Its primary attribute is its exceptional ability to withstand hot hydraulic oil and oxidation, which makes it an excellent fit for hydraulic machinery and equipment. Additionally, ACM demonstrates inherent resilience to both ozone and weathering, making it significantly more advantageous than nitrile rubber (NBR).

PARAMETERS

ACM Rubber Physical Properties
Grade Density Moony Tensile Strength Elongtation Compression Set Tg Application Product Feature
g/cm3

ML1+4 @ 100℃
 Mpa
%
%, ASTM D395
Method B
150℃*70hr
℃
Active Chlorine Grade
PA-1010A
1.10
 50 15.60 200 40 -15

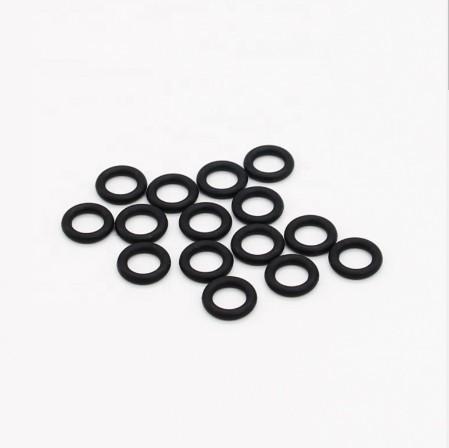

O-ring,Gasket
excellent oil and heat resistance,good mold flow
PA-1010 1.10 45 14.90 220 40 -18 O-ring,Gasket
excellent oil and heat resistance,good mold flow,emold release

APPLICATION

ACM is widely used in various high-temperature and oil-resistant environments and has become a sealing material that has been heavily developed and promoted in the automotive industry in recent years, especially for high-temperature oil seals, crankshafts, valve stems, cylinder gaskets, hydraulic oil pipelines, etc. used in automobiles.
