180 Degree Heat Resistant ACM Rubber PA500 68 Shore A Polyacrylate Rubber
180 Degree Heat Resistant ACM Rubber PA500 68 Shore A Polyacrylate Rubber
180 Degree Heat Resistant ACM Rubber PA500 68 Shore A Polyacrylate Rubber
180 Degree Heat Resistant ACM Rubber PA500 68 Shore A Polyacrylate Rubber
180 Degree Heat Resistant ACM Rubber PA500 68 Shore A Polyacrylate Rubber
180 Degree Heat Resistant ACM Rubber PA500 68 Shore A Polyacrylate Rubber
Specifications
Brand Name :
CHENGUANG FSP
Model Number :
PA-500
Certification :
ISO9001
Place of Origin :
China
Polymer :
Acrylic Elastomer PA500
Typical Properties :
Excellent oil and heat resistance / Low compression set / Excellent curing properties
Physical Form :
Off-white to light yellow
S.G. :
1.10g/cm3
Mooney Viscosity :
45 ML 1+10 @ 100℃
Volatile Matter :
≤1.0%
Tg :
-24℃
Description

Acrylic Elastomer PA500

180 Degree High Heat Resistant PA500 68 Shore A Acrylic Elastomer for Hose and Gasket

DESCRIPTION

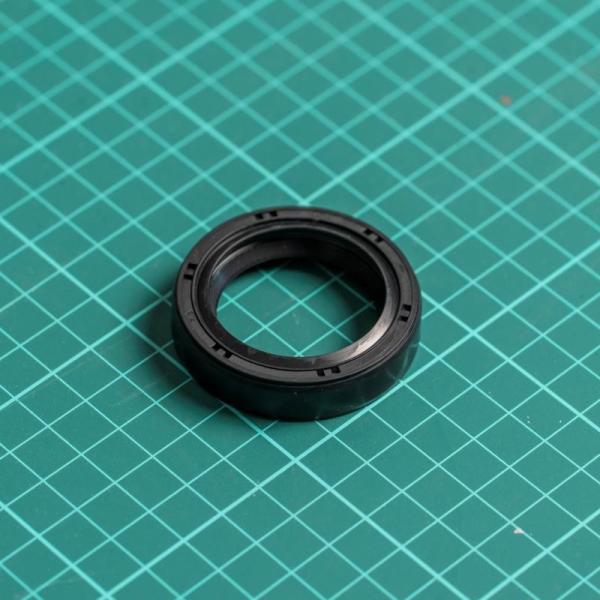

Acrylic rubber's widespread use in the automotive industry is due to its resistance to engine and transmission oil as well as automatic transmission fluids (ATF). With an operating temperature range between -20°C and +150°C, the latest generation of this rubber, HT-ACM (high-temperature-resistant polyacrylate elastomers), offers long-term thermal stability up to 175°C. ACM is utilized in the production of engine and transmission seals, turbocharger hoses, O-rings, diaphragms, hose applications, and roller coverings.

180 Degree Heat Resistant ACM Rubber PA500 68 Shore A Polyacrylate Rubber

PARAMETERS

Physical Properties
Press cured:180℃ @ 10min, post cured: 180 ℃ @ 4hour
Hardness, Shore A
68
Tensile strength, Mpa
13.1
Elongation at break, %
245
Compression set, % 150℃@70h
25
Heat Resistance Properties
175℃@70h in air
Tb change, %
-9
Eb change, %
-13
Hs change, Point
+2
Fluid Resistance
150℃@70h in ASTM No.1 oil
Tb change, %
-7
Eb change, %
+8
Hs change, Point
+2
Volume Swell, %
-1

Further safety and handing guide, can follow the product’s Material Safety Data Sheet or consult us.

APPLICATION

It is a low to middle viscosity mooney carboxyl type acrylic elastomer, it was designed for low
compression and excellent heat resistance and oil resistance product. PA500 universally used for hose
and gasket.
180 Degree Heat Resistant ACM Rubber PA500 68 Shore A Polyacrylate Rubber
180 Degree Heat Resistant ACM Rubber PA500 68 Shore A Polyacrylate Rubber
PACKING INFORMATION
PA500 is packaged in paper bag. The weight is 20kg net per bag.
SAFETY AND HANDING
Store in well ventilated place.
  • Avoid eye contact.
  • Keep adequate ventilation during mixing or processing.
  • Wash thoroughly any contacted skin and clothing after handling.
