Carboxylic Grade ACM Material Rubber 12Mpa Tensile Strength For Extrusion
Carboxylic Grade ACM Material Rubber 12Mpa Tensile Strength For Extrusion
Carboxylic Grade ACM Material Rubber 12Mpa Tensile Strength For Extrusion
Carboxylic Grade ACM Material Rubber 12Mpa Tensile Strength For Extrusion
Carboxylic Grade ACM Material Rubber 12Mpa Tensile Strength For Extrusion
Carboxylic Grade ACM Material Rubber 12Mpa Tensile Strength For Extrusion
Specifications
Brand Name :
CHENGUANG FSP
Model Number :
PA-600
Place of Origin :
China
Name :
Carboxylic Grade ACM Rubber
Tg :
-18℃
Tensile Strength :
16.60Mpa
Density :
1.10g/cm3
Elongation :
240%
Compression Set :
25%
Description

Active Chlorine Grade​ ACM Rubber

DESCRIPTION

In 2019, the Global Acrylic Rubber Market was valued at USD 750 million and is projected to exceed USD 1.2 billion in 2024, with a CAGR of approximately 8.2% from 2019 to 2024. Acrylic rubber, which is also referred to as ACM (alkyl acrylate copolymer) or Hy Temp, is a specialty rubber known for its high resistance to heat, aging, oil, ozone, ultraviolet radiation, and more. This makes it a popular choice for automotive transmissions, hoses, gaskets, adhesives, beltings, and O-rings. Additionally, acrylic rubber has dampening properties, which make it suitable for use in dampening mounts.

Carboxylic Grade ACM Material Rubber 12Mpa Tensile Strength For Extrusion

TEMPERATURE RANGE

Low Temp: -20°C (-5°F) Brittle: -25°C (-13°F)

High Temp: 150°C (300°F) Intermittent: 180°C (356°F)

PARAMETERS

ACM Rubber Physical Properties
Grade Density Moony Tensile Strength Elongtation Compression Set Tg Application Product Feature
g/cm3

ML1+4 @ 100℃
 Mpa
%
%, ASTM D395
Method B
150℃*70hr
℃
Carboxylic Grade
PA-515HE
1.10
 50 16.60 220 18

-18

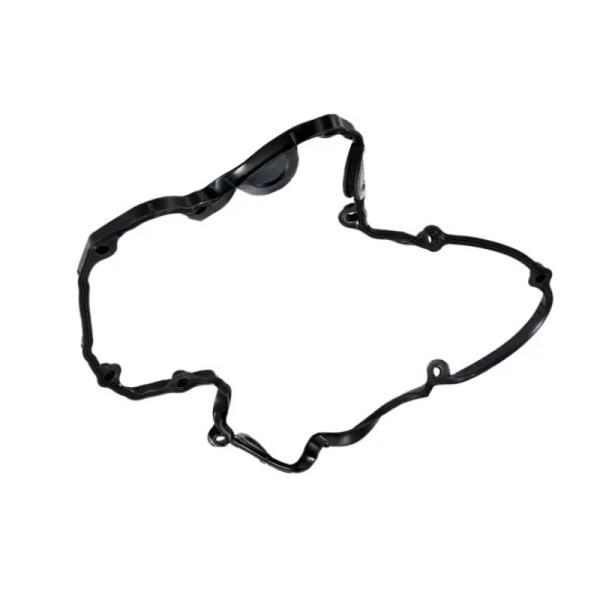

Gasket,Oil seal,O-ring
High strength,low compression, excellent
High temperature resistance(180℃)
PA-515E 1.10 40 13.60 190 20 -23

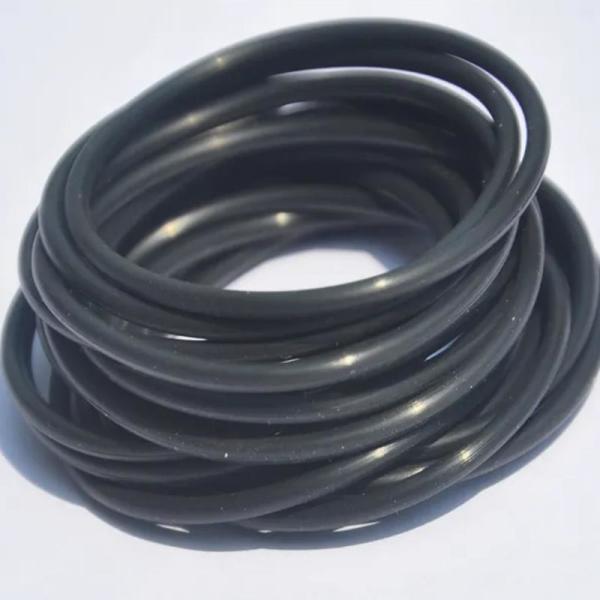

Hose,Gasket,Oil seal,Oring
Good for adhesion,good mold low,low compression,excellent high temperature resistance(180℃)

CLASSIFICATION

  • Epoxy Acrylate Rubber
  • Carboxyl Type Acrylate Rubber
  • Active Chlorine Acrylate Rubber
  • Dienes Acrylate Rubber

APPLICATIONS

The market growth is being propelled by the increasing production of automobiles and the need for durable products. Acrylic rubber is predominantly used for automotive seals and gaskets due to the escalating demand for oil-resistant rubber materials. Additionally, the market is positively impacted by the need for lower fuel consumption and the increasing temperatures in the engine compartment. The market will continue to expand steadily as end-users, such as customer merchandise and plastics, create a greater demand for acrylic rubber. Rapid industrialization, particularly in emerging economies such as China, will also play a crucial role in the market's growth in the coming years.

Carboxylic Grade ACM Material Rubber 12Mpa Tensile Strength For Extrusion
