14.2Mpa ACM Elastomer Polyacrylic Rubber Active Chlorine Grade 1020
14.2Mpa ACM Elastomer Polyacrylic Rubber Active Chlorine Grade 1020
14.2Mpa ACM Elastomer Polyacrylic Rubber Active Chlorine Grade 1020
14.2Mpa ACM Elastomer Polyacrylic Rubber Active Chlorine Grade 1020
14.2Mpa ACM Elastomer Polyacrylic Rubber Active Chlorine Grade 1020
14.2Mpa ACM Elastomer Polyacrylic Rubber Active Chlorine Grade 1020
Specifications
Brand Name :
CHENGUANG FSP
Model Number :
PA-1020
Place of Origin :
China
Name :
ACM Rubber
Color :
Black / White / as your request
Tensile Strength :
14.20Mpa
Density (g/cm3) :
1.10
Elongation :
220%
Mooney (ML(1+4)@100°C) :
40
Description

Active Chlorine Grade​ ACM Rubber

Active Chlorine Grade 1020 14.2Mpa ACM Elastomer Rubber with Good Demolding Performance

DESCRIPTION

Alkyl acrylate copolymer (ACM), commonly referred to as acrylic rubber, displays exceptional resistance to hot oil and oxidation. ACM exhibits a consistent working temperature of 150°C (302°F) and an intermittent threshold of 180°C (356°F). Furthermore, ACM is impervious to ozone and has minimal gas permeability. In comparison to ethylene acrylic rubber (AEM), ACM demonstrates superior resistance to swelling when exposed to mineral oils.

FEATURES

Acrylate rubber, commonly referred to as ACM, is composed of a polymerized ester and curing monomer. Ethyl acrylate rubber has a commendable resistance to heat and mineral oil, whereas butyl acrylate rubber offers superior cold flexibility. Meanwhile, polyacrylate showcases impressive resistance to mineral oil, oxygen, and ozone, even when exposed to high temperatures.

1. Outstanding resistance to hot hydraulic oil and oxidation.
2. Naturally resistant to ozone and weathering.
3. Suitable for use in hydraulic machinery and equipment.
4. Offers good resistance to mineral oil, oxygen, and high temperatures.

14.2Mpa ACM Elastomer Polyacrylic Rubber Active Chlorine Grade 1020

PARAMETERS

ACM Rubber Physical Properties
Grade Density Moony Tensile Strength Elongtation Compression Set Tg Application Product Feature
g/cm3

ML1+4 @ 100℃
 Mpa
%
%, ASTM D395
Method B
150℃*70hr
℃
Active Chlorine Grade
PA-1020
1.10
 40 14.20 220 40 -22

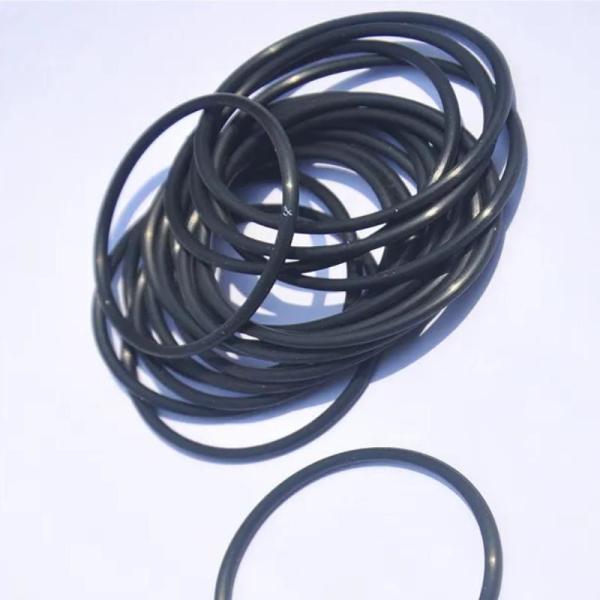

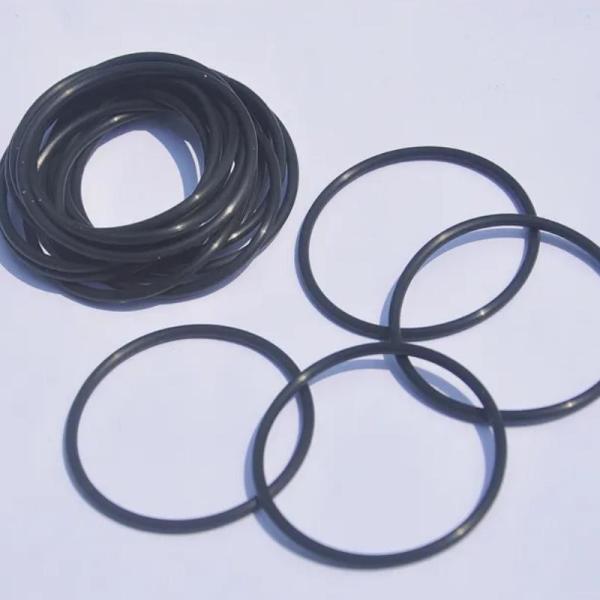

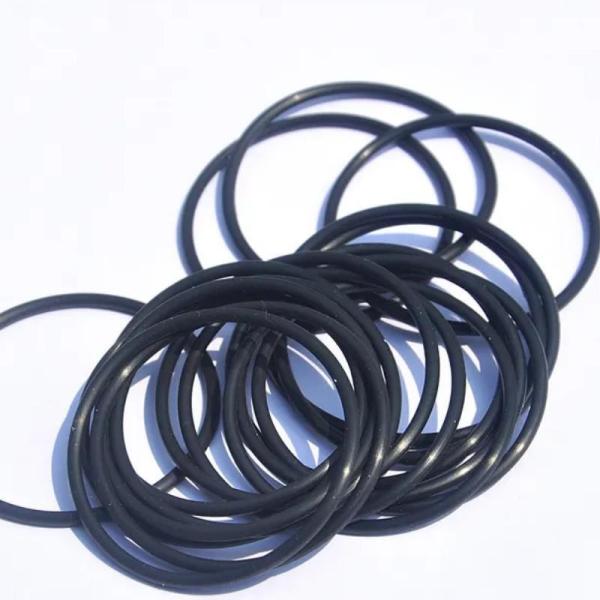

O-ring,Gasket,Hose
good mold flow,emold release
PA-1030 1.10 30 10.50 230 45 -35 O-ring,Gasket
good mold flow,emold release,good low temperature property

APPLICATION

ACM rubber finds its main application in areas where there is a requirement for exceptional resistance to industrial oils and operations at elevated temperatures (including those that involve hot air). The automotive industry frequently employs ACM rubber for seals, while the production of O-rings, hoses, adhesives, diverse types of binders, and covering materials also extensively utilize it. Moreover, ACM serves as a reliable foundation for sealing compounds.

14.2Mpa ACM Elastomer Polyacrylic Rubber Active Chlorine Grade 1020
