Singlemod G657A1 MPO to MPO Fiber Optic Patch Cord
Singlemod G657A1 MPO to MPO Fiber Optic Patch Cord
Singlemod G657A1 MPO to MPO Fiber Optic Patch Cord
Singlemod G657A1 MPO to MPO Fiber Optic Patch Cord
Singlemod G657A1 MPO to MPO Fiber Optic Patch Cord
Singlemod G657A1 MPO to MPO Fiber Optic Patch Cord
Singlemod G657A1 MPO to MPO Fiber Optic Patch Cord
Singlemod G657A1 MPO to MPO Fiber Optic Patch Cord
Specifications
Polish Type :
SM: PC;APC MM:PC
Cable Jacket :
PVC/LSZH/OFNP
Insertion Loss :
SM:APC≤0.7dB; MM:PC≤0.7dB
Place of Origin :
China
Cable Diameter :
3.0/5.0mm or more
Tensile Strength :
40N
MOQ :
100 pieces
Payment Terms :
T/T
Model Number :
DW-MPO-MPO-SMP
Delivery Time :
7-15 days
Brand Name :
DOWELL
CableType :
Bunch/Ribbon
Return Loss :
SM:APC≥55dB; SM:PC≥40dB,MM:PC≥20dB
Cable Outside Diameter :
3.0/5.0mm or more
Supply Ability :
500PCS Per Week

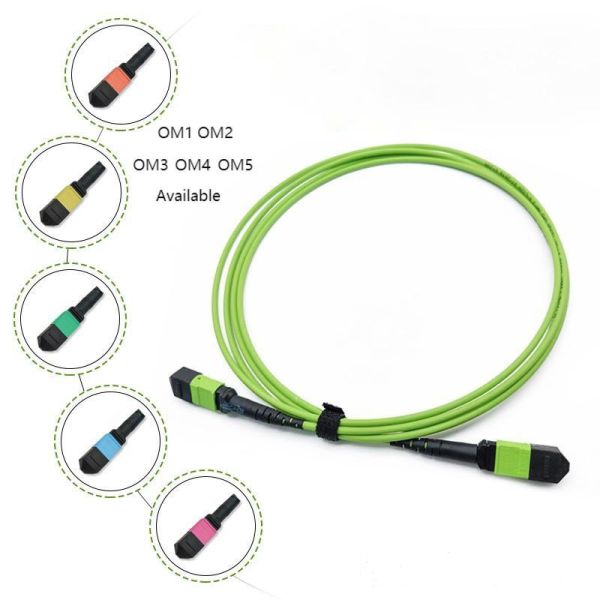

Cable Color :
SM: Yellow MM: Aqua(OM3); Violet(OM4); Lime Green(OM5)
Description

Singlemod G657A1 MPO to MPO Fiber Optic Patch Cord

Male Female MPOs are classified by the guide pins on the end of the connector and require 1 male and 1 female to mate properly. MPO connectors use a “barrel sleeve" adapter that simply holds one male and one female MPO “plug" together. The male guide pins fit into the female holes to ensure precise fiber alignment. It is never advised to mate two female connectors two male connectors due to both insertion loss and pin damage respectively. The standard for cables is female to female. This changes, however, when you need to extend a cable or connect two cables. You will then need a male to female cable plus adapter.

Specification:

Insertion Loss Standard loss: (SM:APC≤0.7dB; MM:PC:≤0.7dB) Low loss: (SM:APC≤0.35dB; MM:PC≤0.35dB)
Return Loss Standard loss: (SM:APC≥55dB; SM:PC≥40dB,MM:PC≥20dB) Low loss: (SM:APC≥60dB; SM:PC≥50dB, MM:PC≥25dB)
Wavelength SM: 1310/1550nm MM: 850/1300nm
Operating Temperature -20~70°C
Storage Temperature -40~70°C

Features:

  • 1.1 MPO connectors support multi-core fiber optic parallel connection, significantly increasing the wiring density, saving space, and are suitable for high-density environments such as data centers.
  • 1.2 It supports high-speed network transmission standards such as 40Gbps, 100Gbps, and 400Gbps, meeting the high-speed requirements of modern data centers.
  • 1.3 Low insertion loss (typically less than or equal to 0.5 dB) ensures high signal transmission efficiency.
Singlemod G657A1 MPO to MPO Fiber Optic Patch Cord

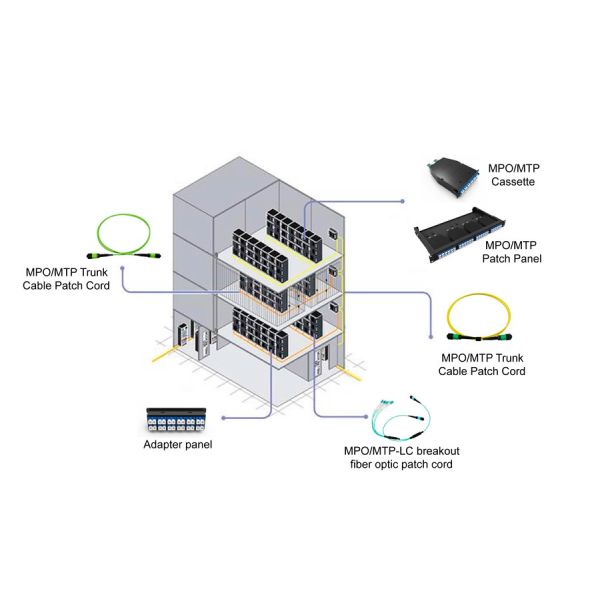

Application:

  • 2.1 MPO patch panel to patch panel connections in data centers
  • 2.2 Switch-to-panel and cassette-based MPO systems
  • 2.3 40G/100G/200G/400G OM4 multimode interconnects (short-reach)
  • 2.4 High-density structured cabling in plenum (OFNP) environments
Singlemod G657A1 MPO to MPO Fiber Optic Patch Cord

FAQ:

1. Q : Are you trading company or manufacturer?

A : 70% of our products we manufactured and 30% do trading for customer service

2. Q : How can you ensure the quality?

A : Good question! We are a one-stop manufacturer. We have complete facilities and over-15- years manufacturing experience to ensure product quality. And we have already passed ISO 9001 Quality Management System.

3. Q : Can you provide samples? Is it free or extra?

A : Yes, After price confirmation , we could offer the free sample, but the shipping cost need pay for by your side.

4. Q : How long is your delivery time?

A : In stock: In 7 days; No in stock: 15~20 days, depend on your QTY.

5. Q: Can you do OEM?

A: Yes , we can

6. Q: What is your payment term?

A: Payment <=4000USD, 100% in advance. Payment>= 4000USD, 30% TT in advance, balance before shipment.

7. Q: How we can pay?

A: TT, Western Union, Paypal ,Credit Card and LC

8. Q: Transportation?

A: Transported by DHL, UPS, EMS, Fedex, Air freight, Boat and Train
