LSZH OM4/OM3 MPO-MPO Multimode Female Fiber Optic Patch Cord
LSZH OM4/OM3 MPO-MPO Multimode Female Fiber Optic Patch Cord
LSZH OM4/OM3 MPO-MPO Multimode Female Fiber Optic Patch Cord
LSZH OM4/OM3 MPO-MPO Multimode Female Fiber Optic Patch Cord
LSZH OM4/OM3 MPO-MPO Multimode Female Fiber Optic Patch Cord
LSZH OM4/OM3 MPO-MPO Multimode Female Fiber Optic Patch Cord
LSZH OM4/OM3 MPO-MPO Multimode Female Fiber Optic Patch Cord
LSZH OM4/OM3 MPO-MPO Multimode Female Fiber Optic Patch Cord
Specifications
Place of Origin :
China
Connector :
MPO Female-Female, UPC polish
Supply Ability :
500pcs per 10 days
Insertion Loss :
≤0.35dB
Delivery Time :
7-15 days

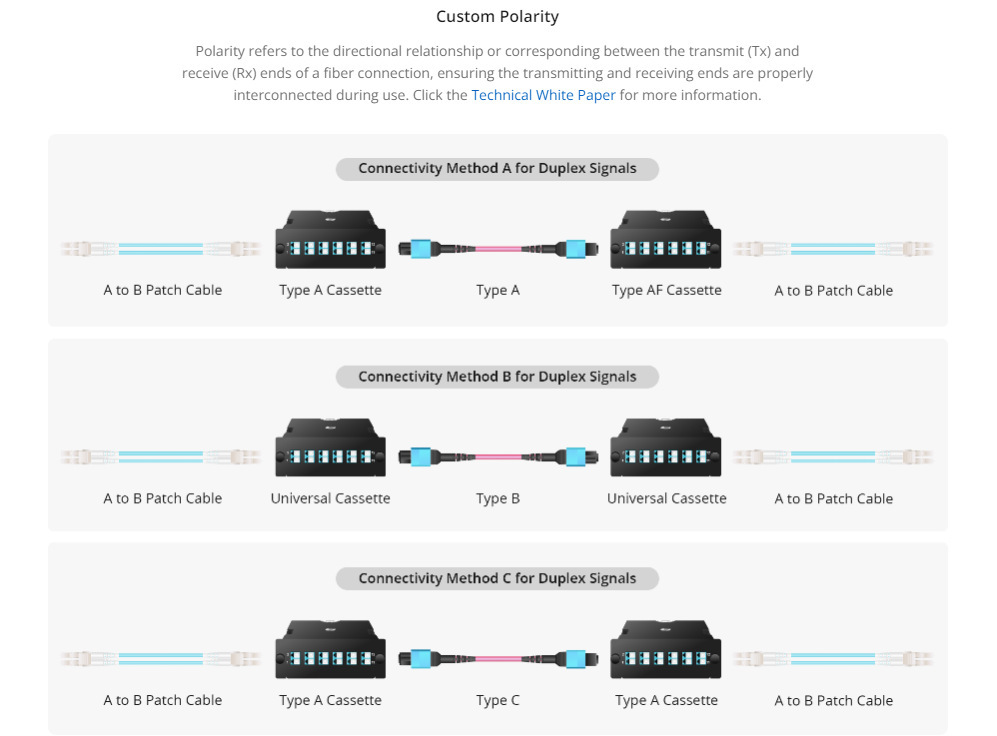

Polarity :
Type A/B customizable
MOQ :
100 pieces
Fiber Count :
8/12/24 cores
Payment Terms :
T/T
Jacket :
LSZH Aqua
Brand Name :
DOWELL
Fiber :
OM4 50/125μm Multimode
Description
LSZH OM4/OM3 MPO-MPO Multimode Female Fiber Optic Patch Cord

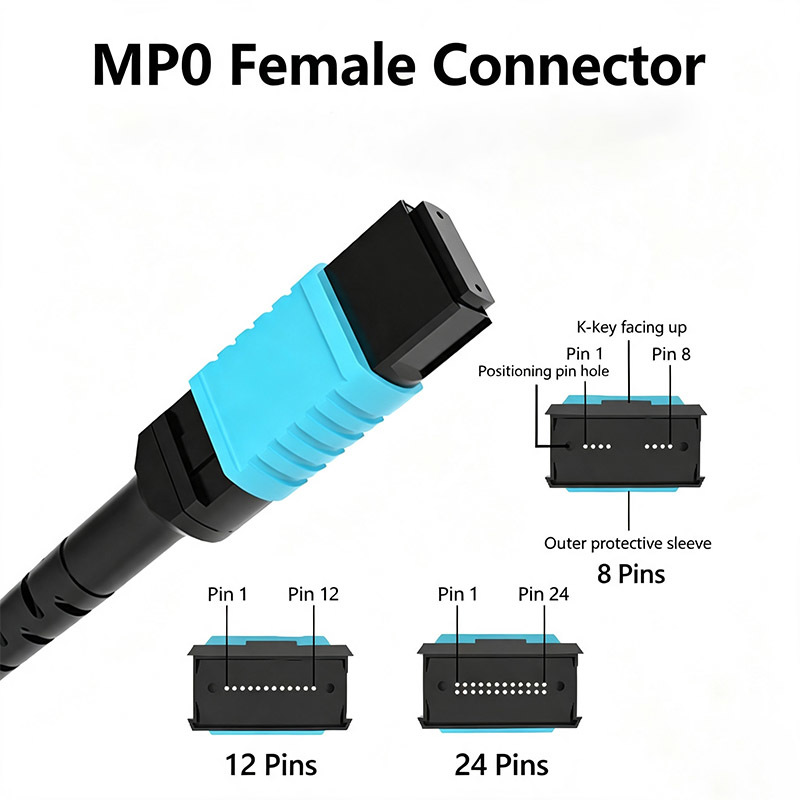

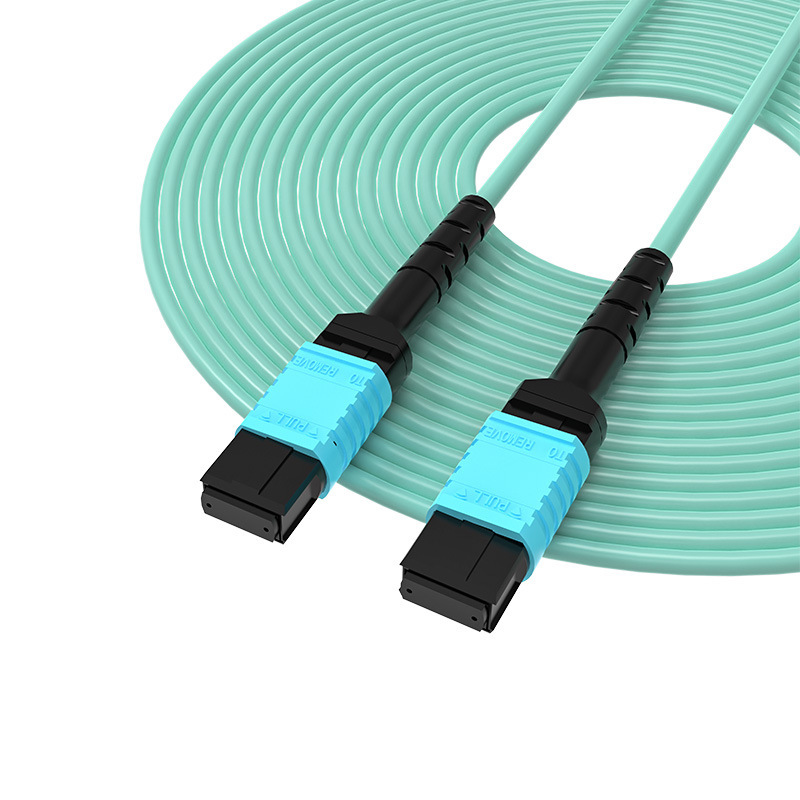

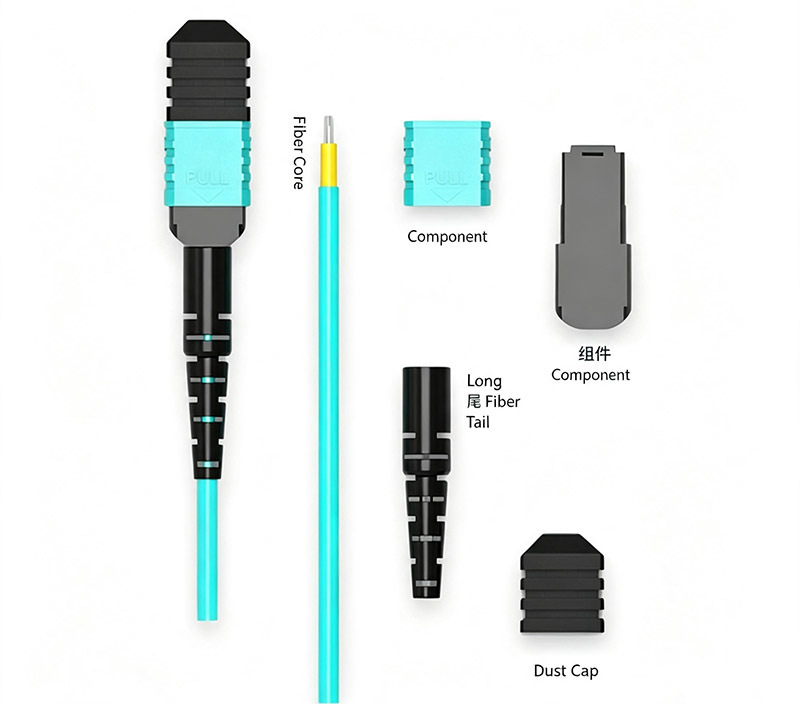

This MPO-MPO multimode fiber patch cord adopts high-precision MPO female connectors with push-pull latching design. It features an aqua OM4 LSZH tight-buffered jacket, compact round cable structure, and factory-terminated, 100% optical tested assembly for plug-and-play high-density interconnection.
Specification
Connector MPO Female-Female, UPC polish
Fiber OM4 50/125μm Multimode
Length Customization Available
Features
  • Low insertion loss and stable return loss
  • Excellent repeatability and interchangeability after repeated mating
  • Supports high-speed parallel optical transmission, minimizes signal attenuation in short-reach data links, reliable for continuous 24/7 operation
LSZH OM4/OM3 MPO-MPO Multimode Female Fiber Optic Patch Cord LSZH OM4/OM3 MPO-MPO Multimode Female Fiber Optic Patch Cord

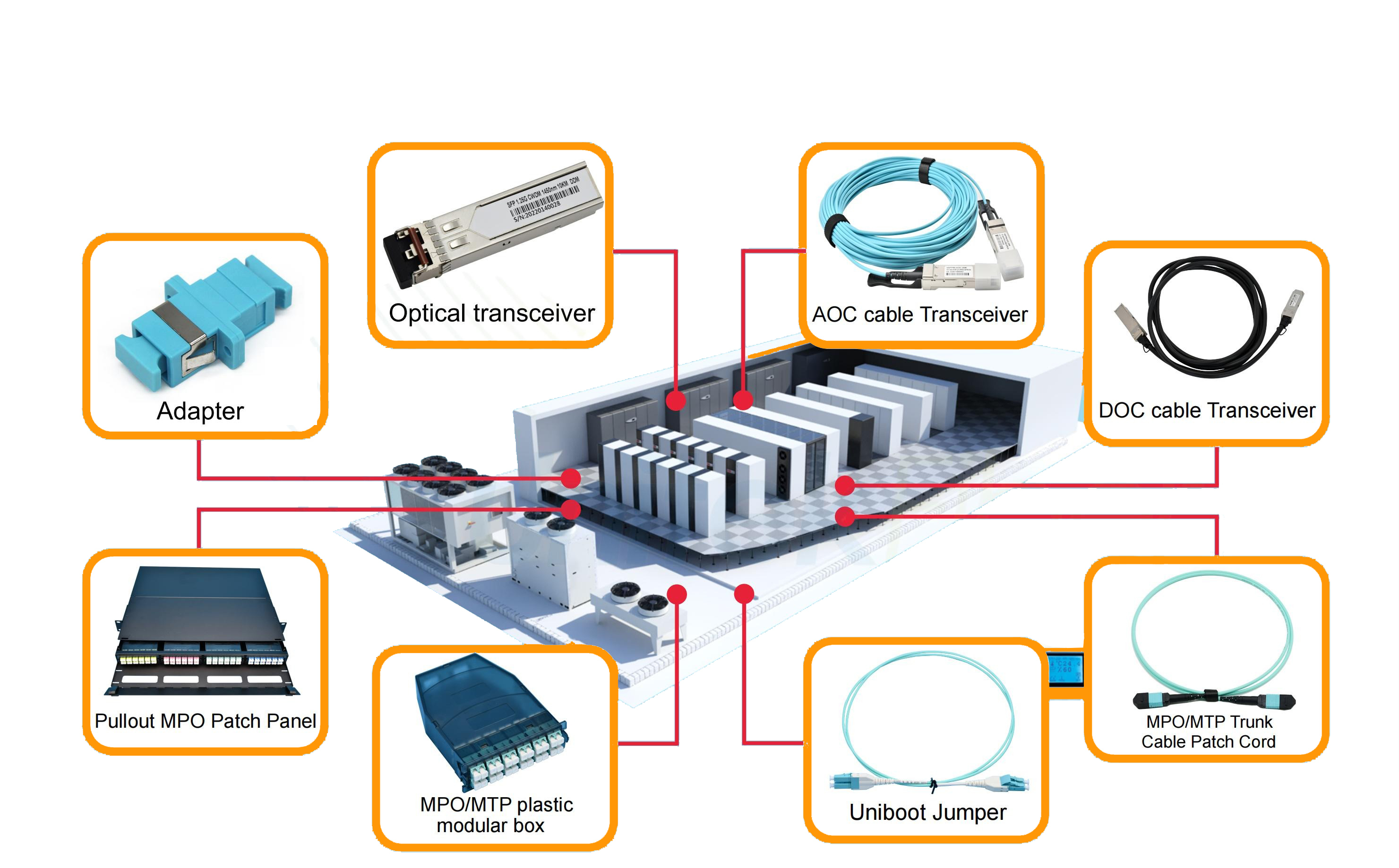

Applications
  • Data Center backbone cabling: MPO-to-MPO singlemode trunk links between patch panels / cassettes
  • High-density structured cabling: spine-leaf fabrics, high port-count distribution areas
  • Telecom / central office interconnects: singlemode backbone runs requiring stable RL/IL performance
  • Plenum environments: indoor routes requiring OFNP rated cabling
  • Network upgrades & migration projects: MPO-based architectures for higher-speed optical deployments MPO patch panel to patch panel connections in data centers
  • Switch-to-panel and cassette-based MPO systems
  • 40G/100G/200G/400G OM4 multimode interconnects (short-reach)
  • High-density structured cabling in plenum (OFNP) environments
LSZH OM4/OM3 MPO-MPO Multimode Female Fiber Optic Patch Cord
Frequently Asked Questions
Are you trading company or manufacturer?
70% of our products we manufactured and 30% do trading for customer service
How can you ensure the quality?
Good question! We are a one-stop manufacturer. We have complete facilities and over-15-years manufacturing experience to ensure product quality. And we have already passed ISO 9001 Quality Management System.
Can you provide samples? Is it free or extra?
Yes, After price confirmation, we could offer the free sample, but the shipping cost need pay for by your side.
How long is your delivery time?
In stock: In 7 days; No in stock: 15~20 days, depend on your QTY.
Can you do OEM?
Yes, we can
What is your payment term?
Payment <=4000USD, 100% in advance. Payment>= 4000USD, 30% TT in advance, balance before shipment.
How we can pay?
TT, Western Union, Paypal, Credit Card and LC
Transportation?
Transported by DHL, UPS, EMS, Fedex, Air freight, Boat and Train
