FTTH SM MTP 40/100/200G MPO-FC 8Cores OS2/G652D Fan-out Fiber Jumper
FTTH SM MTP 40/100/200G MPO-FC 8Cores OS2/G652D Fan-out Fiber Jumper
FTTH SM MTP 40/100/200G MPO-FC 8Cores OS2/G652D Fan-out Fiber Jumper
FTTH SM MTP 40/100/200G MPO-FC 8Cores OS2/G652D Fan-out Fiber Jumper
Specifications
Place of Origin :
China
Return Loss :
≥55dB (UPC); ≥65dB (APC)
Supply Ability :
500pcs per 10 days
Fiber Core :
12 Fibers
Delivery Time :
7-15 days
Fiber Options :
OS2 G652D / G657A2
MOQ :
100 pieces
Material :
LSZH/PVC
Payment Terms :
T/T
Cable Length :
0.5m, 1m, 2m, 3m...
Brand Name :
DOWELL
Insertion Loss :
≤0.35dB (MPO); ≤0.2dB (FC)
Description
FTTH SM MTP 40/100/200G MPO-FC 8/12/16/24 Fibers Fan-out Fiber Jumper

MPO to FC breakout fiber patch cord is a high-density multifiber interconnection cable designed for data center high-speed cabling systems. It adopts a standard 12-core MPO male/female connector on one end and separate FC UPC/APC single fiber connectors on the other end. The cable body is available in LSZH or PVC outer jacket, with tight buffered fiber inside, excellent bending resistance and mechanical protection. This breakout cord converts one multi-fiber MPO trunk cable into multiple independent FC single fiber links, greatly saving cabinet wiring space and simplifying high-density rack wiring deployment.

Specification:
Fiber Core 8
Material LSZH/PVC
Single Mode OS2 G652D / G657A2 (9/125μm)
Length 0.5m, 1m, 2m, 3m or customizable
Features:
  • 12 Core MPO-FC Breakout Design for High Density Cabling

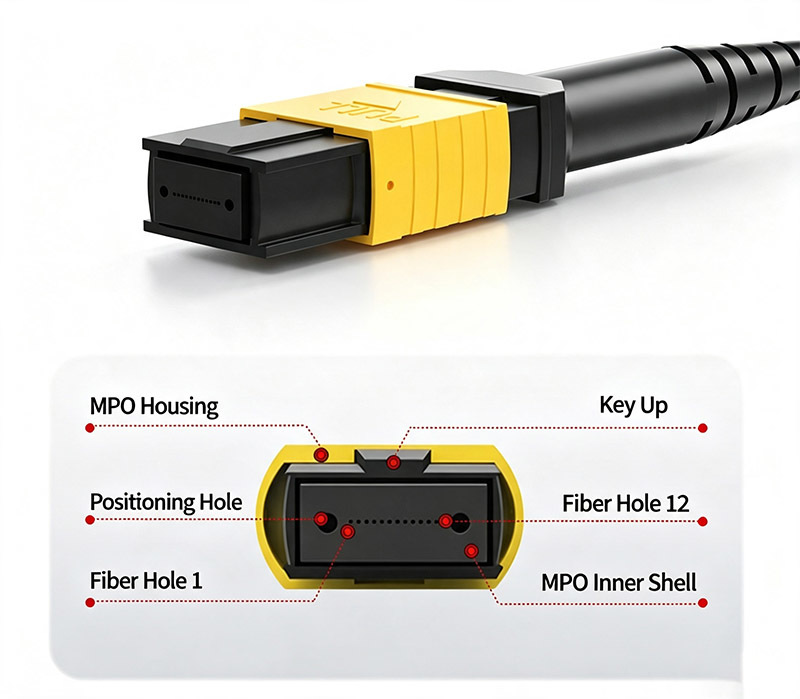

  • Key-Up Standard MPO Connector with Precise Positioning
  • Low Insertion Loss, Stable Optical Transmission
  • LSZH Flame Retardant Jacket Optional for Safety Use
  • Compatible with Data Center QSFP Modules & ODF Frames
  • Custom Core Count, Polarity, Length & Polishing Type Available
Application:
  • Telecom central office ODF frame distribution, backbone optical cable branch, base station equipment internal jumper connection.
  • High-density rack cabling, 40G/100G/400G QSFP module interconnection, server cluster internal wiring, MPO fiber box fan-out distribution.
  • Optical signal splitting and transmission, fiber to the room (FTTR) project, monitoring system long-distance optical signal transmission.
FTTH SM MTP 40/100/200G MPO-FC 8Cores OS2/G652D Fan-out Fiber Jumper
FAQ:
1. Q : Are you trading company or manufacturer?
A : 70% of our products we manufactured and 30% do trading for customer service
2. Q : How can you ensure the quality?
A : Good question! We are a one-stop manufacturer. We have complete facilities and over-15- years manufacturing experience to ensure product quality. And we have already passed ISO 9001 Quality Management System.
3. Q : Can you provide samples? Is it free or extra?
A : Yes, After price confirmation, we could offer the free sample, but the shipping cost need pay for by your side.
4. Q : How long is your delivery time ?
A : In stock: In 7 days; No in stock: 15~20 days, depend on your QTY.
5. Q: Can you do OEM?
A: Yes , we can
6. Q: What is your payment term?
A: Payment <=4000USD, 100% in advance. Payment>= 4000USD, 30% TT in advance, balance before shipment.
7. Q: How we can pay?
A: TT, Western Union, Paypal ,Credit Card and LC
8. Q: Transportation?
A: Transported by DHL, UPS, EMS, Fedex, Air freight, Boat and Train
