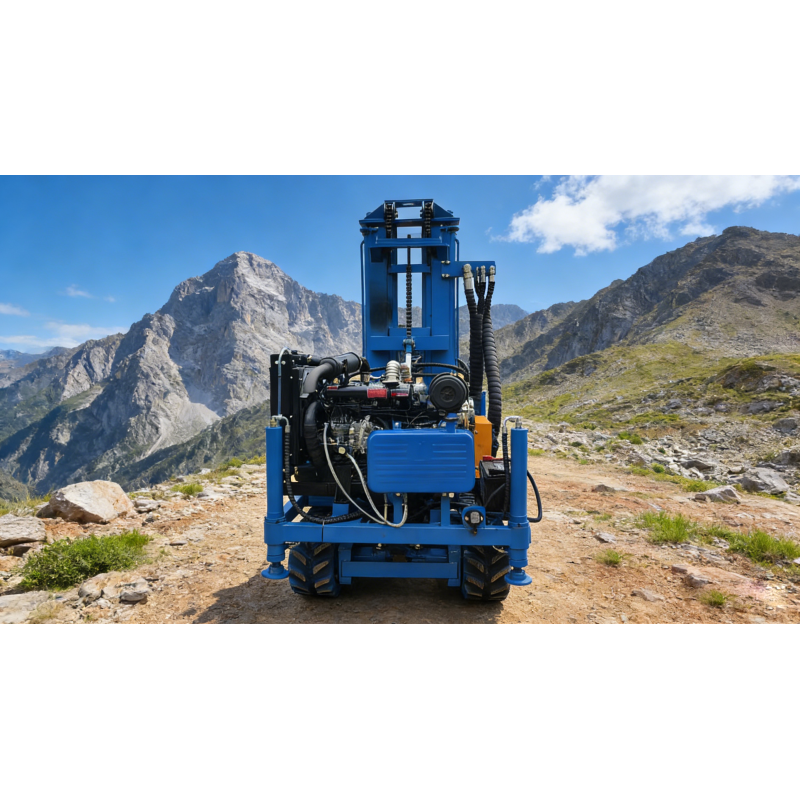

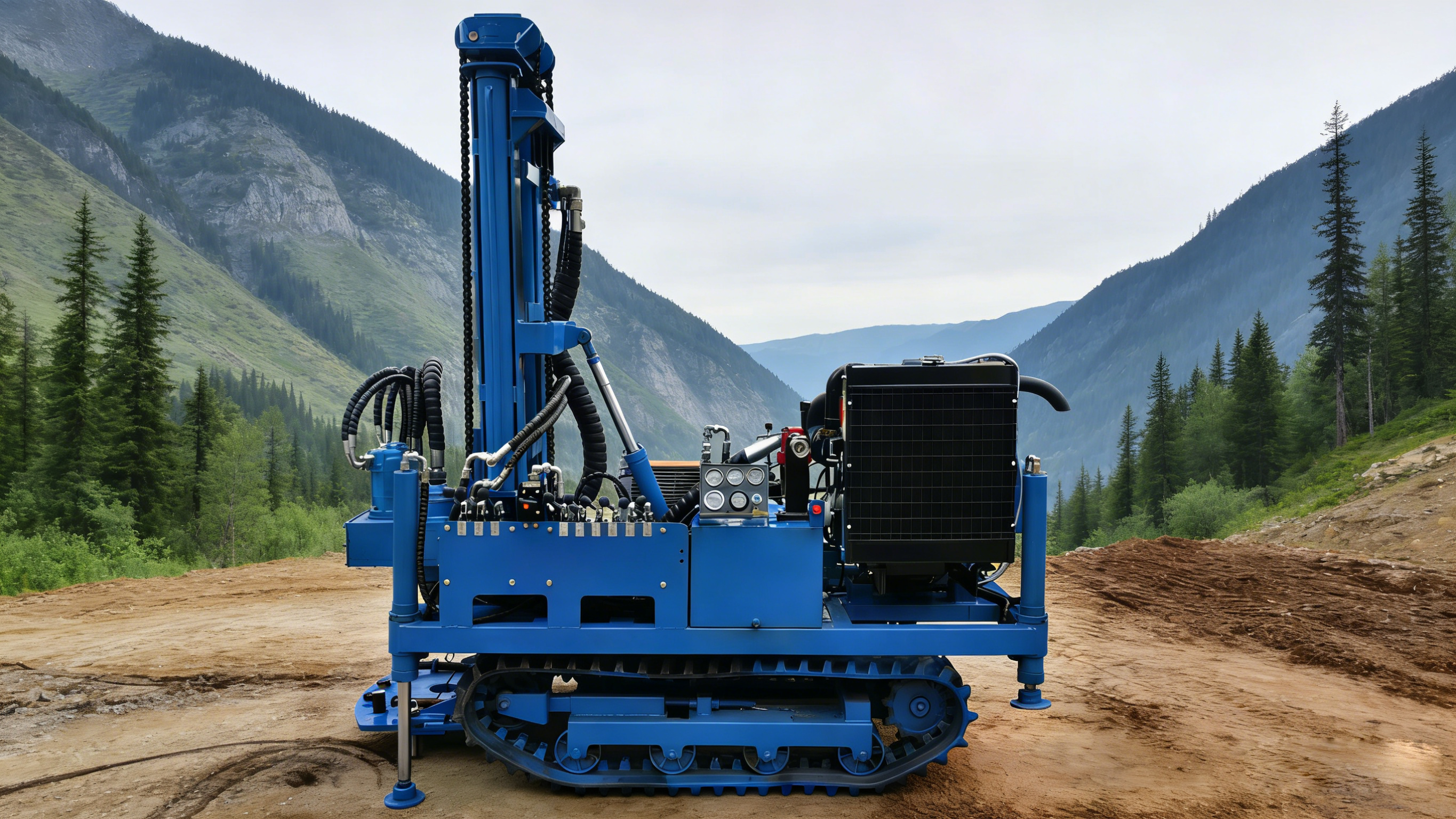

Small Down-the-hole Crawler Drill Boasts Strong Power And Easy Transportation
Small Down-the-hole Crawler Drill Boasts Strong Power And Easy Transportation
Small Down-the-hole Crawler Drill Boasts Strong Power And Easy Transportation
Small Down-the-hole Crawler Drill Boasts Strong Power And Easy Transportation
Specifications
Product Name :
Small 150 Meter Crawler Mounted Drilling Rig Machine
Key Words :
Crawler Is A Water Drilling Rig
Drilling Diameter :
50mm-150mm
Drill pipe length :
2m
Rotation speed :
80r/min
After Sales Service :
Online Support
Power :
Diesel Engine
Drilling rig size :
2000mm*1200mm*1200mm
Brand Name :
Shitan
Model Number :
Small 100 meter drilling machine
Place of Origin :
Jinzhou ,Hebei Province
MOQ :
1 set
Price :
Customized quotation list
Payment Terms :
30% TT deposit,and 70% before shipment
Supply Ability :
2000 sets
Delivery Time :
10 days after deposit
Packaging Details :
Wooden box
Description
Small Down-the-Hole Crawler Drill: Powerful & Mobile Drilling Solution
The down-the-hole crawler drill is an efficient rock drilling equipment that combines the drilling function of the down-the-hole hammer with the mobility of the crawler chassis. It is widely used in mining, foundation engineering, and other industrial applications.
Technical Specifications
Product Name Small 150 Meter Crawler Mounted Drilling Rig Machine
Key Features Crawler Water Drilling Rig
Drilling Diameter 50mm - 150mm
Drilling Depth 30m - 150m
Drill Pipe Length 2m
Power Source Diesel Engine
Drilling Rig Size 2000mm * 1200mm * 1200mm
After Sales Service Online Support
Available Colors Yellow, Blue, Red
Drilling Rod Diameter 60mm
Drilling Methods Reverse Circulation Drilling, Hydraulic Circulation Drilling, Mining Sampling
Core Operating Principle
The impactor dives into the bottom of the hole, using compressed air as the power source to achieve high-frequency impact, and cooperates with the rotation of the drill rod to break rocks. The compressed air also completes the slag removal; the crawler chassis provides mobility and operational support, and the hydraulic system drives actions such as walking, propulsion, rotation, and angle adjustment.
Core Strengths
  • Efficient Drilling: Impact energy reaches the bottom of the hole directly with minimal energy loss during deep-hole drilling. Superior efficiency compared to traditional rock drills, ideal for large-diameter deep holes.
  • Flexible & Maneuverable: Tracked mobility enables quick site transitions, with adjustable drilling arm angles for vertical, horizontal, and inclined drilling operations.
  • Stable & Reliable: Robust chassis design with mature hydraulic system and high-quality components that withstand harsh working conditions including dust and vibration.
  • Safe & Eco-Friendly: Remote/centralized control reduces manual risks, equipped with dust removal system to minimize environmental pollution.
Applicable Scenarios
  • Open-Pit Mining: Drilling and blasting holes, presplitting holes
  • Infrastructure Projects: Slope anchoring, foundation pit support, subgrade reinforcement, photovoltaic drilling
  • Water Conservancy & Transportation: Tunnel pipe sheds, dam grouting holes, emergency rescue and disaster relief drilling
  • Other Applications: Quarries, building materials mining, aggregate production, defense projects, and other medium-to-deep hole operations
Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
