Small Water Well Drill Rig Equipment Drilling Depth ST200
Small Water Well Drill Rig Equipment Drilling Depth ST200
Small Water Well Drill Rig Equipment Drilling Depth ST200
Small Water Well Drill Rig Equipment Drilling Depth ST200
Specifications
Weight :
650kg
Name :
200M Track Minning Core Drilling Rig Machine
Application :
drilling core/ water well
Drilling depth :
200m
Max open hole caliber :
300mm
Drilling angle :
90°~75°
Power type :
Diesel,Electric
Product name :
Water Well Drilling Rig,200m pneumatic tractor mounted water well drilling rig machine price,Geotechnical drilling rig,down the hole hammer
Brand Name :
Shitan
Model Number :
ST200
Certification :
ISO9001
Place of Origin :
Hebei . China
MOQ :
1 set
Price :
USD3200-6800/set
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
20000 sets/ year
Delivery Time :
7 days
Packaging Details :
Wooden case packing
Description
Small Water Well Drill Rig Equipment Drilling Depth ST200
Product Overview

The ST200 is a compact yet powerful water well drilling rig designed for depths up to 200m. With versatile power options (diesel or electric) and adaptable drilling angles, this rig excels in various geological conditions.

Key Specifications
Attribute Value
Weight 650kg
Drilling Depth 200m
Max Open Hole Caliber 300mm
Drilling Angle Range 90°~75°
Power Options Diesel (22KW) or Electric (15KW)
Product Features
  • 8-speed positive rotation gear system for high speed and strong torque
  • Hydraulic chuck enables non-stop rotating operation
  • Large inner diameter accommodates big/middle hexagonal driving levers
  • Lightweight design (650kg) for easy transportation
  • Versatile applications in various geological conditions
Technical Specifications
Drill Weight (without power):
975kg
Spindle Speed:
64, 128, 287, 557r/min
Max Lifting Capacity:
2400kg
Mud Pump Displacement:
Diesel 170L/min, Electric 150L/min
Applications
  • Water well construction
  • Geological exploration and investigation
  • Soil sampling and testing (including SPT tests)
  • Mining projects
  • Water and electricity engineering
  • Road and railroad construction

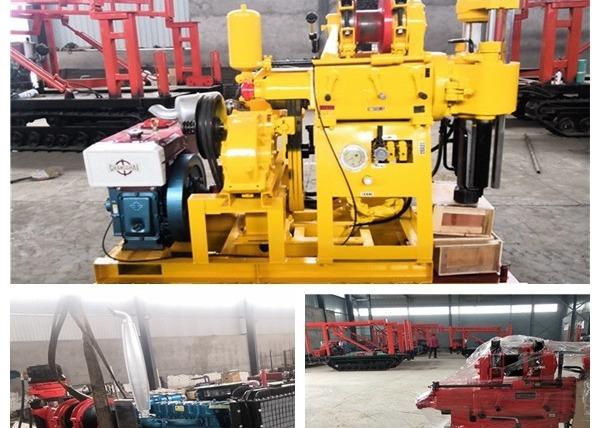

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
