Diesel Engine Power Earth Drilling Equipment Geological Drilling
Diesel Engine Power Earth Drilling Equipment Geological Drilling
Diesel Engine Power Earth Drilling Equipment Geological Drilling
Diesel Engine Power Earth Drilling Equipment Geological Drilling
Specifications
Condition :
New
Type :
Water Borehole Well Drilling Equipment
Power Type :
Diesel
Model Number :
ST-100
Usage :
Water Well drilling
Weight :
450kg
Supplying Ability :
60sets/month
Brand Name :
SHITAN
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Description
Diesel Engine Power Earth Drilling Equipment Geological Drilling
Product Specifications
Attribute Value
Condition New
Type Water Borehole Well Drilling Equipment
Power Type Diesel
Model Number ST-100
Usage Water Well drilling
Weight 450kg
Supplying Ability 60sets/month
Product Overview

This portable water well drilling equipment is an economical and practical solution for household and small-scale water well drilling. Featuring compact design, lightweight construction, and excellent well-forming quality, it offers stable performance with easy operation and reliable safety features.

Technical Parameters
Max drilling diameter 500mm
Max drilling depth 60m
Driving drilling pipe size 73×5.5×3000mm
Drilling pipe size 73×5.5×2500mm
Drilling collar size 73X8X1500m
Turntable speed 40R/min
Power 7.5KW motor or 12HP diesel engine
Hoist lifting capacity 1T
Lifting speed 0.143 m/sec
Overall Dimension 2845×770×5151mm
Main machine Weight 750kg
Key Features
  • Automatic feeding system for high drilling efficiency
  • Ball card clamping mechanism eliminates need for chuck
  • Centralized handle controls for easy operation
  • Compact structure with rig, pumps and diesel engine on single chassis
  • Lightweight and easily transportable for various terrains
Well Drilling Applications

This equipment is suitable for different well types including deep wells, large wells, counterpart pumping wells and small diameter tube wells. The appropriate well type should be selected based on local groundwater conditions.

Construction Methods

For large open wells, either manual excavation/blasting or open caisson methods can be used depending on geological conditions. Counterpart pumping wells are commonly constructed using mechanical or manual hanging hammers, making them an economical choice for rural applications.

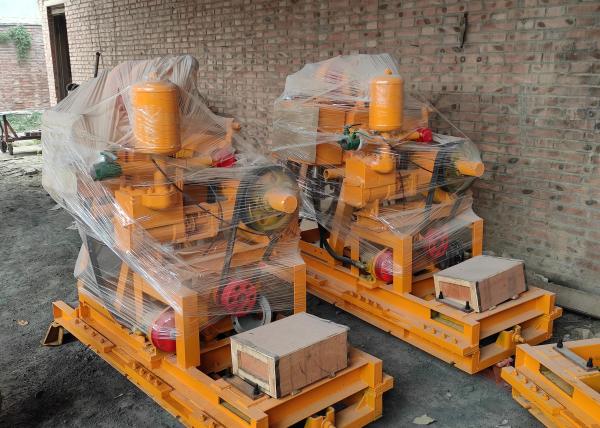

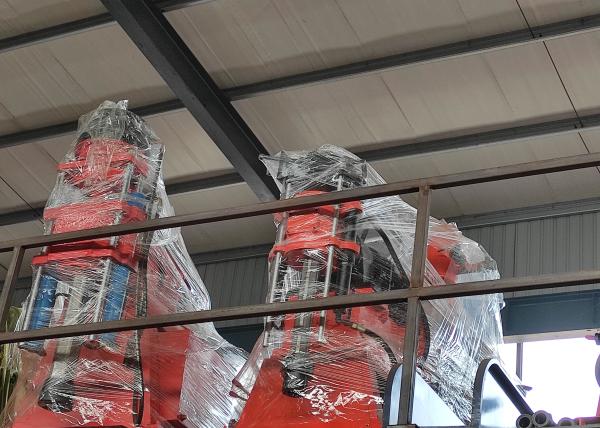

Product Gallery

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order

Diesel Engine Power Earth Drilling Equipment Geological Drilling Diesel Engine Power Earth Drilling Equipment Geological Drilling Diesel Engine Power Earth Drilling Equipment Geological Drilling Diesel Engine Power Earth Drilling Equipment Geological Drilling Diesel Engine Power Earth Drilling Equipment Geological Drilling Diesel Engine Power Earth Drilling Equipment Geological Drilling Diesel Engine Power Earth Drilling Equipment Geological Drilling
