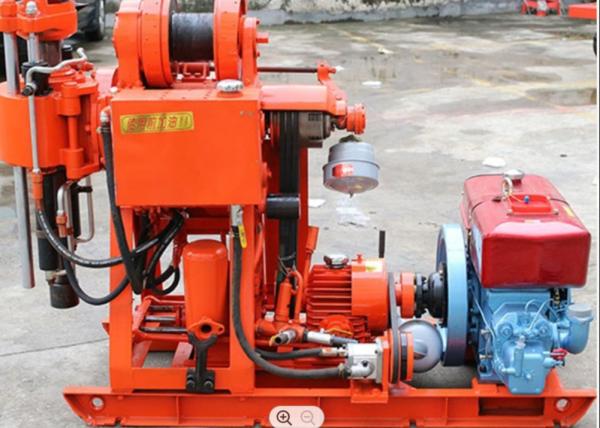

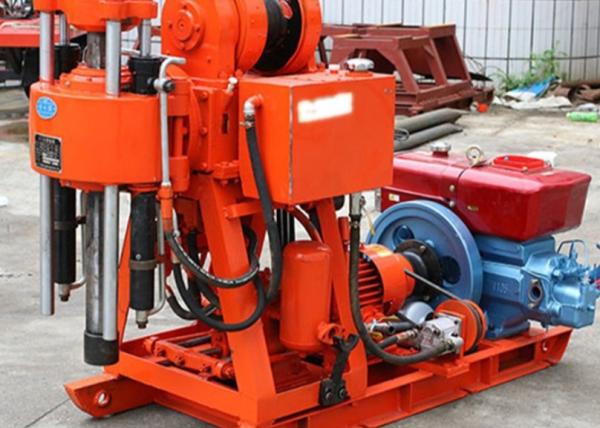

Passed Diesel Power XY-1A Pile Drilling Machine 150m
Passed Diesel Power XY-1A Pile Drilling Machine 150m
Passed Diesel Power XY-1A Pile Drilling Machine 150m
Passed Diesel Power XY-1A Pile Drilling Machine 150m
Specifications
Brand Name :
ShiTan
Model Number :
XY-1A
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
2000set/year
Delivery Time :
Within 7-12 days
Packaging Details :
Standard Export package
Name :
Water Well Drilling Rig Machine
Type :
portable core drilling machine
Power Type :
Diesel
Weight: :
480kg
Usage :
water well,railways, core drilling
Drilling depth :
30-180m
Dimension(L*W*H) :
1620*970*1560mm
Drill pipe diameter :
42mm
Diesel engine model :
1105
Head angle range :
360
Lifting power max( KN) :
30
Description
Passed Diesel Power XY-1A Pile Drilling Machine 150m
Product Specifications
Attribute Value
Name Water Well Drilling Rig Machine
Type Portable core drilling machine
Power Type Diesel
Weight 480kg
Usage Water well, railways, core drilling
Drilling depth 30-180m
Dimension (L×W×H) 1620×970×1560mm
Drill pipe diameter 42mm
Diesel engine model 1105
Head angle range 360°
Lifting power max (KN) 30
Product Overview

The XY-1A drilling rig machine is a new-type, portable engineering drilling machine for multiple applications including:

  • Geological prospecting
  • Foundation holes of small buildings
  • Drilling of water wells
  • Other construction projects

It can drill all kinds of ground conditions including soil, mud, sand, gravel, weathering rocks, and hard rocks.

Technical Specifications
Model Drilling Rig
Drilling depth (m) 150
Drilling rod diameter (mm) Φ42
Head angle range 360°
Movable cylinder stroke (mm) 300
Spindle speed (r/min) 144, 264, 590, 1083
Spindle hole diameter (mm) Φ54
Spindle output torque max (N.M) 800
Spindle stroke (mm) 370
Lifting power max (KN) 30
Driving force max (KN) 23
Lifting speed (m/s) 0.36, 0.7, 1.49, 2.9
Lifting capacity (single) max (KN) 10
Steel wire rope diameter (mm) 11
Mode of chuck Hand lever chuck
Weight (power unit excepted) (Kg) 550
Overall dimensions (mm) 1200×650×1300
Diesel engine model Zs1100 (12.1KW)
Electromotor model Y160M-4 (11KW)
Key Features
  • Hydraulic feed mechanism improves drilling efficiency and reduces worker fatigue
  • Upper ball clamping mechanism and hexagonal active drill rod allow reverse rod operation without stopping
  • Pressure gauge at the bottom of the hole indicates pressure for better operation control
  • Centralized handle operation for convenience
  • Compact structure with small size, lightweight, and strong decomposability for easy transportation
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are the original equipment manufacturer. We design, produce, and sell our products. We master the core technology and continuously improve our products based on market trends and customer feedback to ensure quality.
Q: How long is your delivery time?
A: Delivery time depends on the model and quantity. Generally 3-5 days for in-stock items, or 15-30 days for customized machines.
Q: What do I need to do after payment?
A: For FOB terms, you need to arrange shipping. For CIF terms, we deliver to the destination port and provide all customs clearance documents via international express after shipment.

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order

Passed Diesel Power XY-1A Pile Drilling Machine 150m Passed Diesel Power XY-1A Pile Drilling Machine 150m Passed Diesel Power XY-1A Pile Drilling Machine 150m
