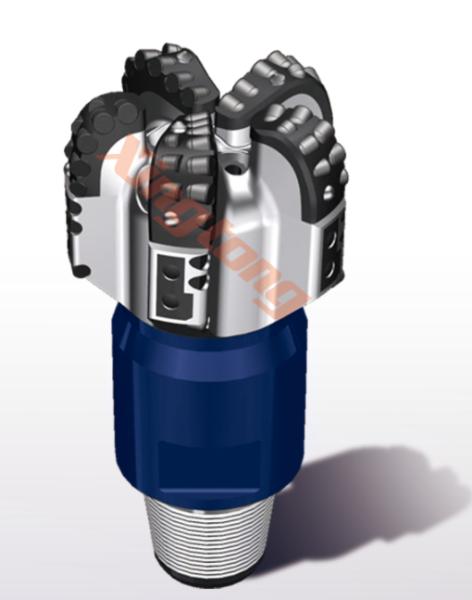

PDC Drill Bits 8 1/2″ 216mm XHR 5164DB Suitable for High-Speed Drilling in Soft Formations
PDC Drill Bits 8 1/2″ 216mm XHR 5164DB Suitable for High-Speed Drilling in Soft Formations
PDC Drill Bits 8 1/2″ 216mm XHR 5164DB Suitable for High-Speed Drilling in Soft Formations
PDC Drill Bits 8 1/2″ 216mm XHR 5164DB Suitable for High-Speed Drilling in Soft Formations
Specifications
Brand Name :
XINGTONG
Model Number :
8 1/2″ 216mm XHR 5164DB
Certification :
API 、ISO 9001
Place of Origin :
CHINA
MOQ :
1 Piece（MOQ）
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
Stable supply and support for bulk customization.
Delivery Time :
15-45 Days
Packaging Details :
Standard Exported Package
Cutter Type :
GI
IADC code :
S324
Body type :
STEEL
Total Cutter Count :
61
Face :
41
Gauge :
15
Updrill :
5
Nozzle type & count :
L*5
Junk slot area (sq mm) :
12535.46
Normalized Face Volume :
55.17%
API Connection :
4-1/2 REG.pin
Make-Up TQ :
16-24KN.m
Gauge Length :
64mm
Make-Up Length :
507mm
Approximate Shipping Weight :
78kg
Price :
Negotiable
Description
XHR Series Features
  • Suitable for improving ROP in soft formation.
  • Optimize shaped cutter layout to improve the drilling efficiency and improve cuttings removing.
  • Optimize nozzles and junk slot design by using CFD to speed up cutting moving.
  • The high strength steel body makes the blade thinner to prevent back tail of the blade contact the formation while in high ROP.
Product Features
  • 0.8mm Relieved Gauge
  • Drop In Cutters on Gauge Pads
  • Up-Drill Cutters on Gauge Pads
  • Dual row cutting structrue
  • 4D shaped cutter
  • Radius Hex TSP on Gauge Pads
Note
  • The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
  • The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
  • The pictures are for reference only, please contact Skycom engineers for detailed technical parameters.
