53 Cutter PDC Drill Bit Rigid Body Hdd Pdc Bit For Drilling Soft Formations
53 Cutter PDC Drill Bit Rigid Body Hdd Pdc Bit For Drilling Soft Formations
53 Cutter PDC Drill Bit Rigid Body Hdd Pdc Bit For Drilling Soft Formations
53 Cutter PDC Drill Bit Rigid Body Hdd Pdc Bit For Drilling Soft Formations
Specifications
Brand Name :
XINGTONG
Model Number :
8 1/2″ 216mm XHR 5164B
Certification :
API 、ISO 9001
Place of Origin :
CHINA
MOQ :
1 Piece（MOQ）
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
Stable supply and support for bulk customization.
Delivery Time :
15-45 Days
Packaging Details :
Standard Exported Package
Cutter Type :
GI
IADC code :
S324
Body type :
STEEL
Total Cutter Count :
53
Face :
36
Gauge :
12
Updrill :
5
Nozzle type & count :
L*5
Junk slot area (sq mm) :
11290
Normalized Face Volume :
50.42%
API Connection :
4-1/2 REG.pin
Make-Up TQ :
16-24KN.m
Gauge Length :
89mm
Make-Up Length :
450mm
Approximate Shipping Weight :
61kg
Price :
Negotiable
Description

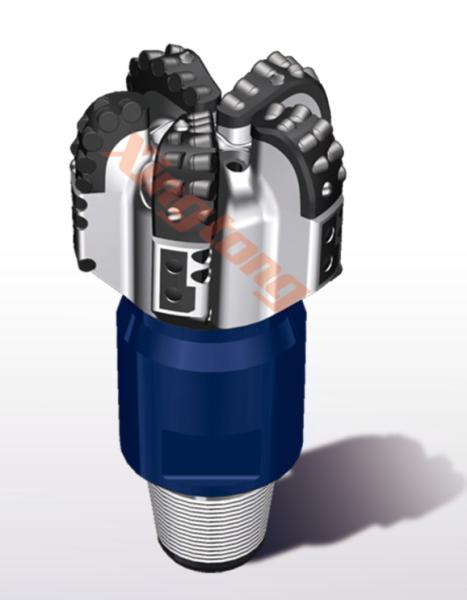

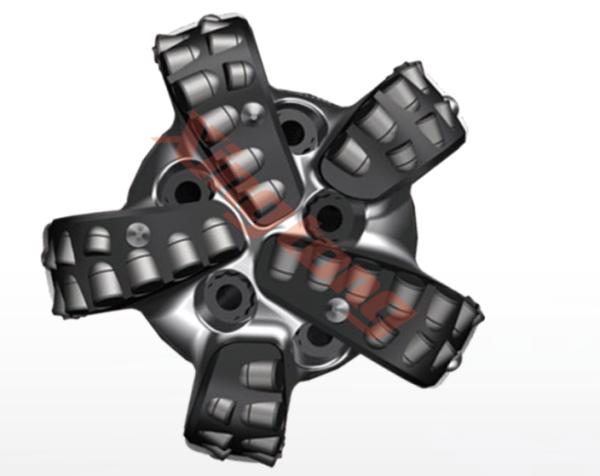

8 1/2″ 216mm XHR 5164B PDC Drill Bits with Rigid Body: Ideal for High-Speed Drilling in Soft Formations
XHR Series Features
  • Suitable for improving ROP in soft formation.
  • Optimize shaped cutter layout to improve the drilling efficiency and improve cuttings removing.
  • Optimize nozzles and junk slot design by using CFD to speed up cutting moving.
  • The high strength steel body makes the blade thinner to prevent back tail of the blade contact the formation while in high ROP.
Product Features
  • 0.8mm Relieved Gauge
  • Drop In Cutters on Gauge Pads
  • Up-Drill Cutters on Gauge Pads
  • Dual row cutting structrue
  • 4D shaped cutter
Note
  • The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
  • The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
  • The pictures are for reference only, please contact Skycom engineers for detailed technical parameters.
