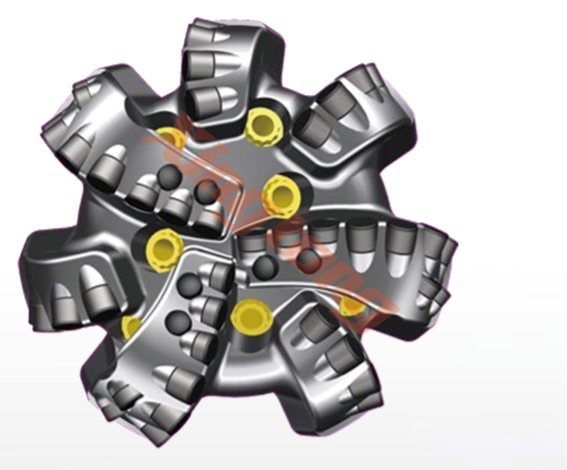

8.5inch Drill Bit Oil Field 216mm Hard Formations Drill Bits For Oil
8.5inch Drill Bit Oil Field 216mm Hard Formations Drill Bits For Oil
8.5inch Drill Bit Oil Field 216mm Hard Formations Drill Bits For Oil
8.5inch Drill Bit Oil Field 216mm Hard Formations Drill Bits For Oil
Specifications
Brand Name :
XINGTONG
Model Number :
8 1/2″ 216mm XH 5164
Certification :
API 、ISO 9001
Place of Origin :
CHINA
MOQ :
1 Piece（MOQ）
Supply Ability :
Stable supply and support for bulk customization.
Delivery Time :
15-45 Days
Packaging Details :
Standard Exported Package
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Cutter Type :
GI
IADC code :
S324
Body type :
STEEL
Total Cutter Count :
49
Face :
34
Gauge :
8
Updrill :
7
Nozzle type & count :
L*7
Junk slot area (sq mm) :
9168
Normalized Face Volume :
49.41%
API Connection :
4-1/2 REG.pin
Make-Up TQ :
16-24KN.m
Gauge Length :
76mm
Make-Up Length :
451mm
Approximate Shipping Weight :
82kg
Price :
Negotiable
Description

XH Series Features

  • Suitable for increasing durability and footage.
  • The optimized profile makes the load distribution more even to reduce the risk of ring out.
  • High quality PDC were put on shoulder to improve wear and impact resistance.
  • Special backup cutter layout to improve the durability of the bit, while taking into account the bit aggression.

Product Features

  • Drop In Cutters on Gauge Pads
  • 0.8mm Relieved Gauge
  • Up-Drill Cutters on Gauge Pads
  • Dual row cutting structrue

Note

  • The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
  • The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
  • The pictures are for reference only, please contact Skycom engineers for detailed technical parameters.
