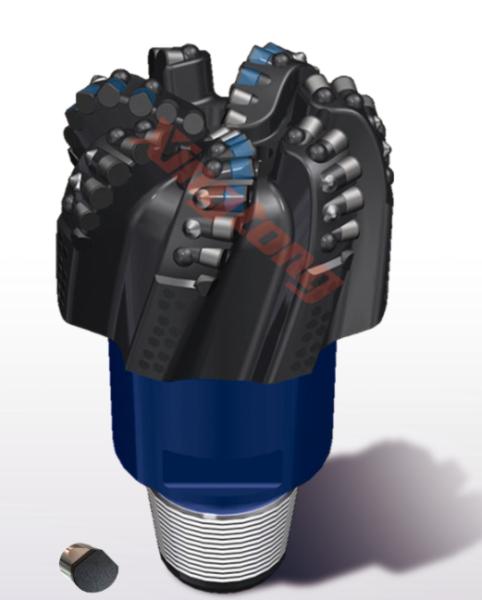

API PDC Drill Bit 16KN.m - 24KN.m rock core bit 76mm Gauge
API PDC Drill Bit 16KN.m - 24KN.m rock core bit 76mm Gauge
API PDC Drill Bit 16KN.m - 24KN.m rock core bit 76mm Gauge
API PDC Drill Bit 16KN.m - 24KN.m rock core bit 76mm Gauge
Specifications
Brand Name :
XINGTONG
Model Number :
8 1/2″ 216mm XH 7164SBA
Certification :
API 、ISO 9001
Place of Origin :
CHINA
MOQ :
1 Piece（MOQ）
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
Stable supply and support for bulk customization.
Delivery Time :
15-45 Days
Packaging Details :
Standard Exported Package
Cutter Type :
GI
IADC code :
S324
body type :
STEEL
Total Cutter Count :
49
Face :
36
Gauge :
13
Nozzle type & count :
L*7
Junk slot area (sq mm) :
9238
Normalized Face Volume :
48.41%
API Connection :
4-1/2 REG.pin
Make-Up TQ :
16-24KN.m
Gauge Length :
76mm
Make-Up Length :
447mm
Approximate Shipping Weight :
78kg
Price :
Negotiable
Description
XH Series Features
  • Suitable for increasing durability and footage.
  • The optimized profile makes the load distribution more even to reduce the risk of ring out.
  • High quality PDC were put on shoulder to improve wear and impact resistance.
  • Special backup cutter layout to improve the durability of the bit, while taking into account the bit aggression.
Product Features
  • 0.8mm Relieved Gauge
  • Drop In Cutters on Gauge Pads
  • Up-Drill Cutters on Gauge Pads
  • Dual row cutting structrue
  • 4D shaped cutter
Note
  • The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
  • The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
  • The pictures are for reference only, please contact Skycom engineers for detailed technical parameters.
