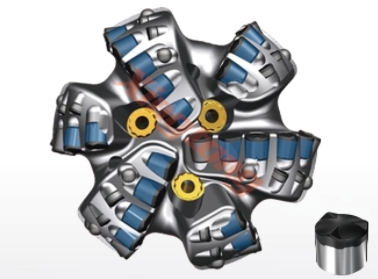

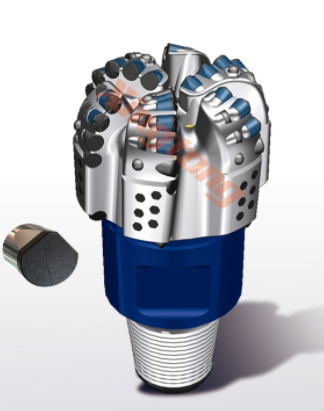

S434 49 Cutter PDC Drill Bits Pdc Drag Bit Super Hard Formations
S434 49 Cutter PDC Drill Bits Pdc Drag Bit Super Hard Formations
S434 49 Cutter PDC Drill Bits Pdc Drag Bit Super Hard Formations
S434 49 Cutter PDC Drill Bits Pdc Drag Bit Super Hard Formations
Specifications
Brand Name :
XINGTONG
Model Number :
6 ″ 152.4mm XH 6164DM
Place of Origin :
CHINA
Certification :
API 、ISO 9001
MOQ :
1 Piece（MOQ）
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
Stable supply and support for bulk customization.
Delivery Time :
15-45 Days
Packaging Details :
Standard Exported Package
Cutter Type :
GI
IADC code :
S434
Body type :
STEEL
Total Cutter Count :
49
Face :
24+12
Gauge :
7
Updril :
6
Nozzle type & count :
M*3+P*3
Junk slot area (sq mm) :
3400
Normalized Face Volume :
46.55%
API Connection :
3-1/2 REG.pin
Make-Up TQ :
7-10KN.m
Gauge Length :
51mm
Make-Up Length :
349mm
Approximate Shipping Weight :
45kg
Price :
Negotiable
Description
High Performance PDC Drill Bits (6″ 152.4mm XH 6164DMA) for Oil Drilling Super Hard Formations
Product Specifications
Attribute Value
Cutter Type GI
IADC code S434
Body type STEEL
Total Cutter Count 49
Face 24+12
Gauge 7
Updril 6
Nozzle type & count M*3+P*3
Junk slot area (sq mm) 3400
Normalized Face Volume 46.55%
API Connection 3-1/2 REG.pin
Make-Up TQ 7-10KN.m
Gauge Length 51mm
Make-Up Length 349mm
Approximate Shipping Weight 45kg
XH Series Features
  • Suitable for increasing durability and footage
  • Optimized profile for even load distribution to reduce ring out risk
  • High quality PDC on shoulder for improved wear and impact resistance
  • Special backup cutter layout enhances bit durability while maintaining aggression
Product Features
  • 0.8mm Relieved Gauge
  • Up-Drill Cutters on Gauge Pads
  • Dual row cutting structure
  • 4D shaped cutter
  • Drop In Cutters on Gauge Pads
  • Radius Hex TSP on Gauge Pads
Note: The recommended top-buckle torque follows API7G standards based on joint dimensions. Xingtong guarantees all technical performance as agreed with customers. Images are for reference only; contact Skycom engineers for detailed technical parameters.
