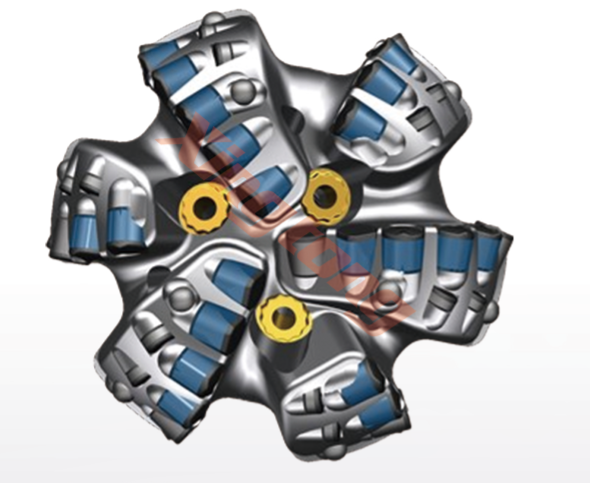

ODM Pdc Diamond Bit 6 Inch 152.4mm Oil Drilling Polycrystalline Diamond Compact Bits
ODM Pdc Diamond Bit 6 Inch 152.4mm Oil Drilling Polycrystalline Diamond Compact Bits
ODM Pdc Diamond Bit 6 Inch 152.4mm Oil Drilling Polycrystalline Diamond Compact Bits
ODM Pdc Diamond Bit 6 Inch 152.4mm Oil Drilling Polycrystalline Diamond Compact Bits
Specifications
Brand Name :
XINGTONG
Model Number :
6 ″ 152.4mm XH 6164DAK
Place of Origin :
CHINA
Certification :
API 、ISO 9001
MOQ :
1 Piece（MOQ）
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
Stable supply and support for bulk customization.
Delivery Time :
15-45 Days
Packaging Details :
Standard Exported Package
Cutter Type :
GI
IADC code :
S434
Body type :
STEEL
Total Cutter Count :
49
Face :
41
Gaug :
8
Nozzle type & count :
M*3
Junk slot area (sq mm) :
3787
Normalized Face Volume :
39.8%
API Connection :
3-1/2 REG.pin
Make-Up TQ :
7-10KN.m
Gauge Length :
51mm
Make-Up Length :
386mm
Approximate Shipping Weight :
46kg
Price :
Negotiable
Description
PDC Drill Bits 6 ″ 152.4mm XH 6164DAK for Oil Drilling in Super Hard Formations
XH Series Features
  • Suitable for increasing durability and footage.
  • The optimized profile makes the load distribution more even to reduce the risk of ring out.
  • High quality PDC were put on shoulder to improve wear and impact resistance
  • Special backup cutter layout to improve the durability of the bit, while taking into account the bit aggression.
Product Features
  • 0.8mm Relieved Gauge
  • Dual row cutting structrue
  • Drop In Cutters on Gauge Pads
  • 4D shaped cutter
  • Impact arrestors Note
  • The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
  • The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
  • The pictures are for reference only, please contact Skycom engineers for detailed technical parameters.
