Specifications
Brand Name :
HuaXin
Model Number :
HX09696XYJ
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$0.98
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
PMOLED sccreen
name :
PMOLED display
Resolution :
96*96
size :
0.96 inch
Color :
white
Interface :
4-wireSPI
Driving IC :
SSD1317
Description
0.96-inch OLED Display | 96x96 Square Screen, 12PIN Welding, SSD1317 Driver, Serial Port Screen
Product Overview

Compact 0.96-inch square PMOLED display with 96x96 resolution, featuring 12-pin welding, SSD1317 driver, and serial port interface. Ideal for smart sensors, DIY devices, and miniature electronics with its low power consumption and high contrast ratio.

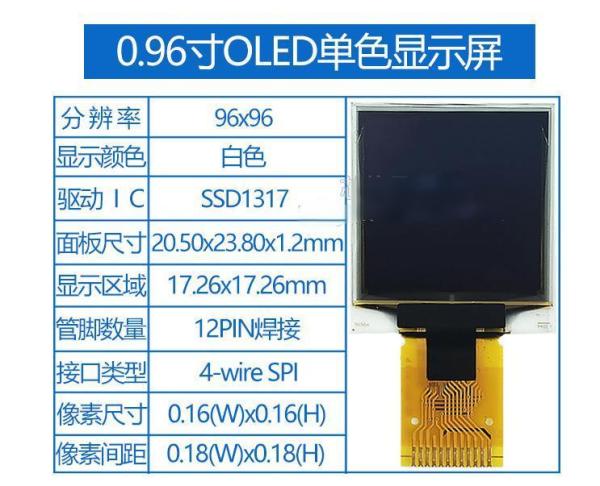

Technical Specifications
Attribute Value
Display Technology PMOLED screen
Resolution 96×96
Size 0.96 inch
Color White
Interface 4-wire SPI
Driving IC SSD1317
Part Number HX09696XYJ
Viewing Angle Free
Active Area 17.26×17.26mm
Module Size 20.50(W)×23.80(H)×1.20(D)mm
Operating Temperature -40°C to 70°C
Pin Quantity 12 PINS

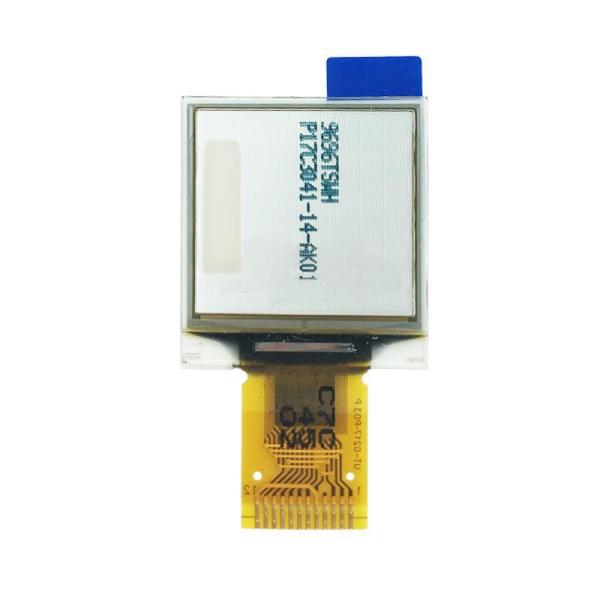

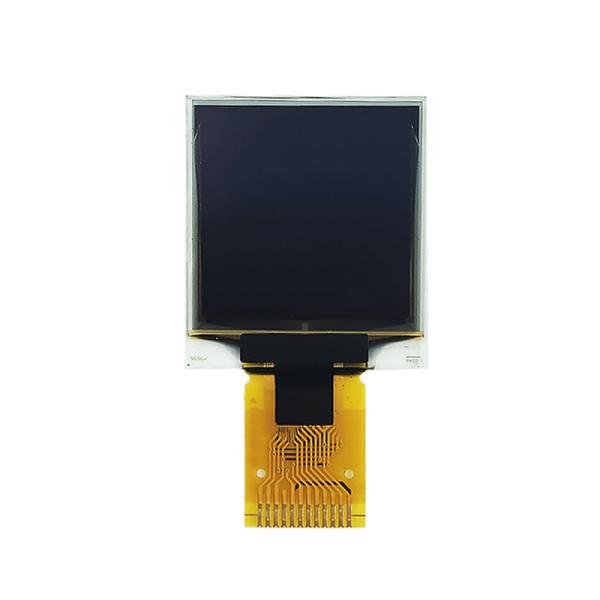

Product Images
Square 0.96 Inch OLED Display 96x96 Resolution 12PIN SSD1317 Driver Serial Port Screen Square 0.96 Inch OLED Display 96x96 Resolution 12PIN SSD1317 Driver Serial Port Screen Square 0.96 Inch OLED Display 96x96 Resolution 12PIN SSD1317 Driver Serial Port Screen Square 0.96 Inch OLED Display 96x96 Resolution 12PIN SSD1317 Driver Serial Port Screen Square 0.96 Inch OLED Display 96x96 Resolution 12PIN SSD1317 Driver Serial Port Screen Square 0.96 Inch OLED Display 96x96 Resolution 12PIN SSD1317 Driver Serial Port Screen
Technical Drawings
Square 0.96 Inch OLED Display 96x96 Resolution 12PIN SSD1317 Driver Serial Port Screen Square 0.96 Inch OLED Display 96x96 Resolution 12PIN SSD1317 Driver Serial Port Screen
OLED Technology Overview
Advantages
  • Lighter and thinner than LCD displays
  • High contrast ratio and color saturation
  • Lower power consumption
  • Each pixel emits its own light for true blacks
PMOLED Characteristics
  • Passive matrix addressing scheme
  • High contrast and vibrant colors without backlight
  • Power efficient - only active pixels consume energy
  • Thin and flexible substrate options
  • Ideal for small to medium-sized displays
Applications
  • Wearable devices
  • Portable audio players
  • Thermostats and home automation
  • Car dashboards and instrument clusters
  • Medical devices
  • Consumer electronics
  • Industrial and professional equipment
Manufacturer Information

Huaxin Technology (Enshi) Co., LTD is a high-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production since 2009.

Company Advantages
  • Cost-effective inland manufacturing base
  • Advanced equipment for stable quality
  • Automated production processes
  • 20+ years of industry experience
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Production Capacity
Product 2021 2022 2023 2024 2025 Unit
LCD 4.5 9 9 9 9 Thousands/Day
LCM 70 150 300 450 450 Thousand/Day
Backlight 100 200 300 500 500 Thousand/Day
OLED 10 20 30 40 50 Thousand/Day
