3.12 Inch Ssd1322 Oled Display 256x64 Resolution Monochrome Oled Display
3.12 Inch Ssd1322 Oled Display 256x64 Resolution Monochrome Oled Display
3.12 Inch Ssd1322 Oled Display 256x64 Resolution Monochrome Oled Display
3.12 Inch Ssd1322 Oled Display 256x64 Resolution Monochrome Oled Display
3.12 Inch Ssd1322 Oled Display 256x64 Resolution Monochrome Oled Display
3.12 Inch Ssd1322 Oled Display 256x64 Resolution Monochrome Oled Display
3.12 Inch Ssd1322 Oled Display 256x64 Resolution Monochrome Oled Display
3.12 Inch Ssd1322 Oled Display 256x64 Resolution Monochrome Oled Display
3.12 Inch Ssd1322 Oled Display 256x64 Resolution Monochrome Oled Display
3.12 Inch Ssd1322 Oled Display 256x64 Resolution Monochrome Oled Display
Specifications
Brand Name :
HuaXin
Model Number :
HX312Y-25664
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$8.4
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
PMOLED sccreen
name :
PMOLED display
Resolution :
256*64
size :
3.12 inch
Color :
White, Yellow, Blue, Green (4 colors optional)
Interface :
8bit 68xx/80xx Parallel Port, 4 - wire SP
Driving IC :
SSD1322
Description
3.12 Inch SSD1322 OLED Display 256x64 Resolution Monochrome OLED Display
Product Specifications
Attribute Value
Display Technology PMOLED screen
Name PMOLED display
Resolution 256×64
Size 3.12 inch
Color White, Yellow, Blue, Green (4 colors optional)
Interface 8bit 68xx/80xx Parallel Port, 4-wire SPI
Driving IC SSD1322
Technical Parameters
Part NO. HX312Y-25664
Display Technology PMOLED
Diagonal Screen Size 3.12 inch
Resolution 256×64
Viewing Angle Free
Active Area (mm) 35.05×17.516 mm
Module Size (mm) 88.00×27.80×2.0mm
Operation Temp -40°C to 70°C
Display Color White, Yellow, Blue, Green (4 colors optional)
Interface 8bit 68xx/80xx Parallel Port, 4-wire SPI
Pin Quantity 30 PINS
Driving IC SSD1322
Connecting Method 0.5mm Pitch, Plug-in FPC

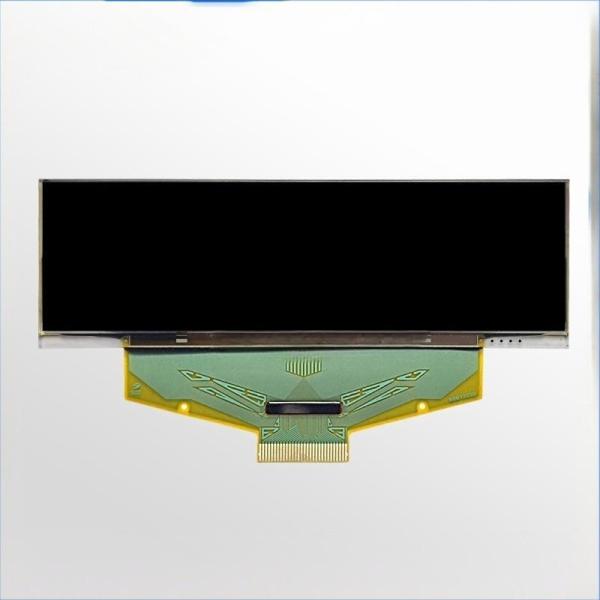

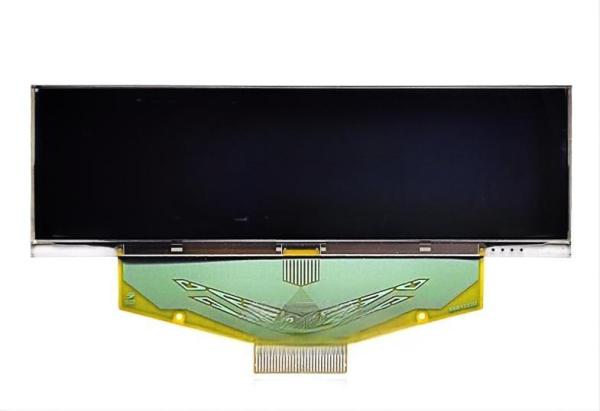

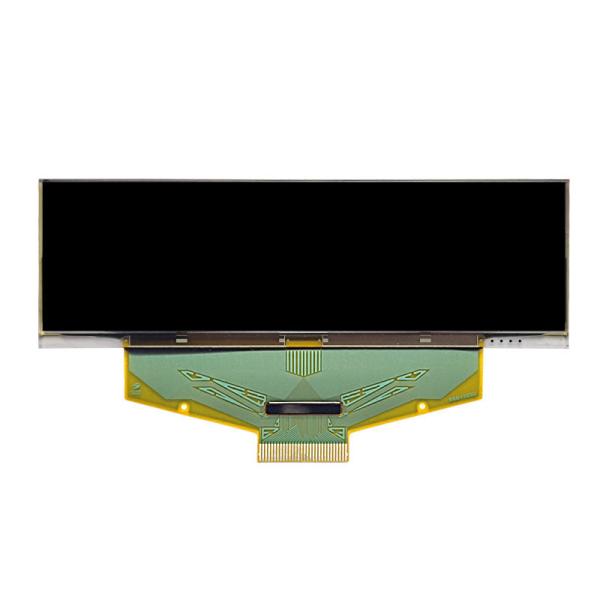

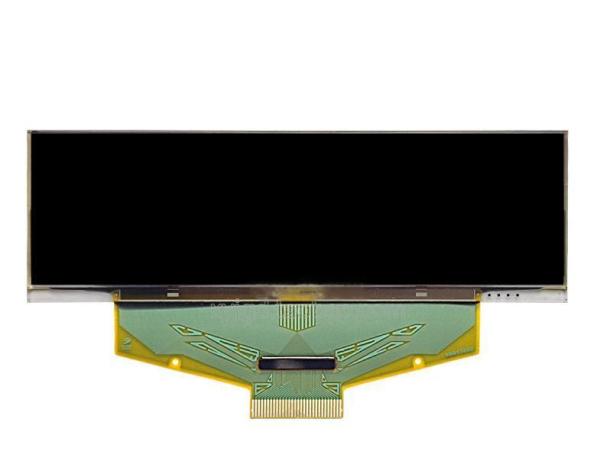

Product Images
3.12 Inch Ssd1322 Oled Display 256x64 Resolution Monochrome Oled Display 3.12 Inch Ssd1322 Oled Display 256x64 Resolution Monochrome Oled Display 3.12 Inch Ssd1322 Oled Display 256x64 Resolution Monochrome Oled Display 3.12 Inch Ssd1322 Oled Display 256x64 Resolution Monochrome Oled Display 3.12 Inch Ssd1322 Oled Display 256x64 Resolution Monochrome Oled Display
Drawing & Pin Definition
3.12 Inch Ssd1322 Oled Display 256x64 Resolution Monochrome Oled Display
OLED Product Knowledge
OLED Advantages:
  • Lighter and thinner than LCDs
  • High contrast and color saturation
  • Lower power consumption
OLED Disadvantages:
  • AMOLED is more expensive than LCD and TFT
  • Lifetime is shorter than LCD and TFT
Company Information
HuaXin Advantages:
  • Factory base located at inland city which has cost effective
  • Most advanced new equipment which can keep quality stable
  • Most processes using fully automatic equipment which has efficiency and stable quality
  • Professional engineers and production leaders with 20+ years experience in LCD field
  • Self design for customized product
Our Certificates:
  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module
Company Details:
  • Huaxin Technology (Enshi) Co., LTD
  • Location: Hubei, Enshi
  • Founded: 2009
  • High technology enterprise specializing in R&D, production and sales of LCD, LCM, TFT, backlight, OLED
  • LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB, TBA, COG, TP, LED backlight and other series
  • Registered capital: Twenty million
  • Current staff: 500+
  • R&D accounts for 10%
  • QC accounts for 15%
Production Capacity
Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • Wearable Devices
  • Portable Audio Players
  • Thermostats and Home Automation Devices
  • Car Dashboards and Instrument Clusters
  • Medical Devices
  • Consumer Electronics
  • Industrial and Professional Equipment
PMOLED Characteristics
  • Display Structure: PMOLED displays consist of an array of organic light-emitting diodes (OLEDs) arranged in rows and columns. Each OLED acts as a single pixel and emits light independently.
  • Passive Matrix: PMOLEDs use a passive matrix addressing scheme, where each row and column intersection in the display matrix is controlled by a driving circuit.
  • High Contrast and Color Saturation: PMOLED displays offer high contrast ratios and vibrant colors without the need for a backlight.
  • Power Efficiency: Consume power only for active pixels, unlike LCDs that require constant backlight power.
  • Thin and Flexible: Can be manufactured on flexible substrates, suitable for curved displays or wearable devices.
  • Limitations: Typically limited in resolution and pixel density compared to AMOLED or LCD displays, more suitable for smaller screens.
  • Screen Persistence: Susceptible to screen persistence or burn-in from prolonged display of static images.
AMOLED vs PMOLED Advantages
  • Higher Resolution: AMOLED displays can achieve higher resolutions than PMOLED.
  • Better Color Reproduction: AMOLED offers superior color accuracy and reproduction.
  • Faster Refresh Rates: AMOLED technology supports higher refresh rates.
  • Improved Power Efficiency: AMOLED is more energy efficient for most content.
  • Larger Screen Sizes: AMOLED can be manufactured in larger sizes than PMOLED.
  • Flexibility and Curved Displays: AMOLED is particularly well-suited for flexible and curved display applications.
