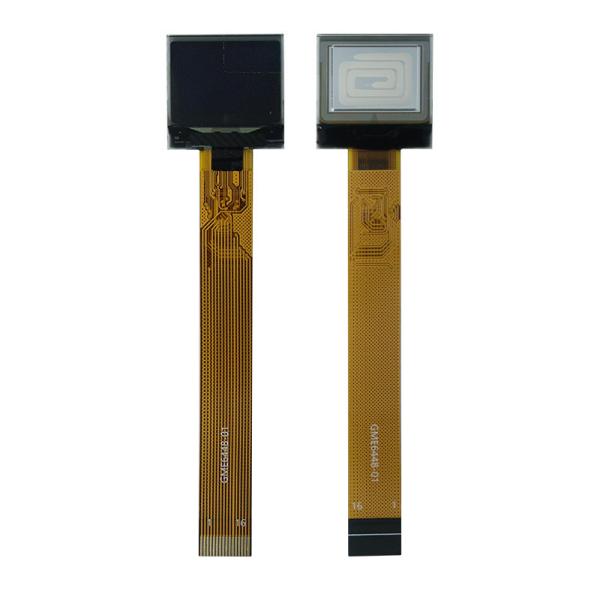

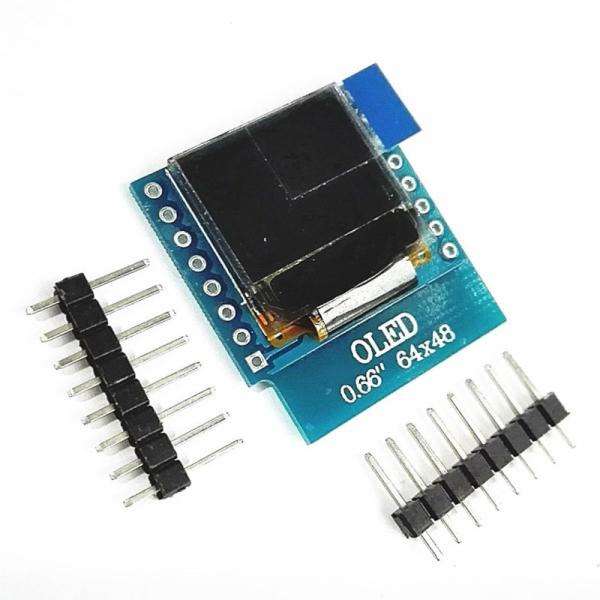

0.66 inch OLED with PCB 64x48 dots SPI/IIC interface driving IC ssd1306
0.66 inch OLED with PCB 64x48 dots SPI/IIC interface driving IC ssd1306
0.66 inch OLED with PCB 64x48 dots SPI/IIC interface driving IC ssd1306
0.66 inch OLED with PCB 64x48 dots SPI/IIC interface driving IC ssd1306
0.66 inch OLED with PCB 64x48 dots SPI/IIC interface driving IC ssd1306
0.66 inch OLED with PCB 64x48 dots SPI/IIC interface driving IC ssd1306
0.66 inch OLED with PCB 64x48 dots SPI/IIC interface driving IC ssd1306
0.66 inch OLED with PCB 64x48 dots SPI/IIC interface driving IC ssd1306
0.66 inch OLED with PCB 64x48 dots SPI/IIC interface driving IC ssd1306
0.66 inch OLED with PCB 64x48 dots SPI/IIC interface driving IC ssd1306
0.66 inch OLED with PCB 64x48 dots SPI/IIC interface driving IC ssd1306
0.66 inch OLED with PCB 64x48 dots SPI/IIC interface driving IC ssd1306
Specifications
Brand Name :
HuaXin
Model Number :
HX6448-01
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$0.98
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
pmoled display module
name :
pmoled display
size :
0.66 inch
Color :
white/blue
Brightness :
120c/d
Interface :
SPI/IIC
Driving IC :
ssd1306
Description
0.66 inch OLED with PCB 64x48 dots SPI/IIC interface driving IC ssd1306
Product Attributes
Attribute Value
Display Technology pmoled display module
Name pmoled display
Size 0.66 inch
Color white/blue
Brightness 120c/d
Interface SPI/IIC
Driving IC ssd1306
Technical Parameters
Parameter Value
Part No HX6448-01
Display Mode 0.66 inch OLED display module
Outline Size 18.46x18.1x1.45mm
VA Size 13.42x10.06mm
Display Dots 64x48
View Angle ALL
Interface SPI/IIC
Working Temp -40~70°C
Storage Temp -40~85°C
Driving IC ssd1306
Product Images
0.66 inch OLED with PCB 64x48 dots SPI/IIC interface driving IC ssd1306 0.66 inch OLED with PCB 64x48 dots SPI/IIC interface driving IC ssd1306 0.66 inch OLED with PCB 64x48 dots SPI/IIC interface driving IC ssd1306 0.66 inch OLED with PCB 64x48 dots SPI/IIC interface driving IC ssd1306 0.66 inch OLED with PCB 64x48 dots SPI/IIC interface driving IC ssd1306 0.66 inch OLED with PCB 64x48 dots SPI/IIC interface driving IC ssd1306
OLED Product Knowledge
OLED Advantages
  • Lighter and thinner than LCDs
  • High contrast and color saturation
  • Lower power consumption
OLED Disadvantages
  • AMOLED is more expensive than LCD and TFT
  • Lifetime is shorter than LCD and TFT
Company Information
HuaXin Advantages
  • Factory base located at inland city which has cost effective
  • Most advanced new equipment which can keep quality stable
  • Most processes using fully automatic equipment which has efficiency and stable quality
  • Professional engineers and production leaders with 20+ years experience in LCD field
  • Self design for customized product
Our Certificates
  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module
Company Profile
  • Huaxin Technology (Enshi) Co., LTD
  • Location: Hubei.Enshi
  • Founded: 2009
  • High technology enterprise specializing in R&D, production and sales of LCD, LCM, TFT, backlight, OLED
  • LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB, TBA, COG, TP, LED backlight and other series
  • Registered capital: twenty million
  • Current staff: 500+
  • R&D accounts for 10%
  • QC accounts for 15%
Production Capacity
Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • Wearable Devices
  • Portable Audio Players
  • Thermostats and Home Automation Devices
  • Car Dashboards and Instrument Clusters
  • Medical Devices
  • Consumer Electronics
  • Industrial and Professional Equipment
PMOLED Characteristics
  • Display Structure: Consists of an array of organic light-emitting diodes (OLEDs) arranged in rows and columns
  • Passive Matrix: Uses passive matrix addressing scheme where each row and column intersection is controlled by a driving circuit
  • High Contrast and Color Saturation: Offers high contrast ratios and vibrant colors without need for backlight
  • Power Efficiency: Consumes power only for active pixels
  • Thin and Flexible: Can be manufactured on flexible substrates suitable for curved displays or wearable devices
  • Limited Resolution and Size: Typically limited in resolution and more suitable for smaller-sized screens
  • Screen Persistence: Susceptible to screen persistence or burn-in with prolonged display of static images
AMOLED vs PMOLED Advantages
  • Higher Resolution: AMOLED offers better pixel density
  • Better Color Reproduction: More accurate and vibrant colors
  • Faster Refresh Rates: Improved performance for dynamic content
  • Improved Power Efficiency: More efficient use of power
  • Larger Screen Sizes: Suitable for bigger displays
  • Flexibility and Curved Displays: Better suited for flexible applications
