1.54 inch OLED with PCB 128x64 dots IIC interface driving IC SSD1309 120C/D
1.54 inch OLED with PCB 128x64 dots IIC interface driving IC SSD1309 120C/D
1.54 inch OLED with PCB 128x64 dots IIC interface driving IC SSD1309 120C/D
1.54 inch OLED with PCB 128x64 dots IIC interface driving IC SSD1309 120C/D
Specifications
Brand Name :
HuaXin
Model Number :
ESHX1054LEDMK
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$3.8
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
OLED module
name :
pmoled screen
size :
1.54 inch
Color :
white/blue
Brightness :
120c/d
Interface :
IIC
Driving IC :
SSD1309
Description
1.54 inch OLED with PCB 128×64 dots IIC interface driving IC SSD1309 120C/D
Product Specifications
Attribute Value
Display Technology OLED module
Product Name PMOLED screen
Size 1.54 inch
Color White/Blue
Brightness 120c/d
Interface IIC
Driving IC SSD1309
Technical Parameters
Part No. ESHX1054LEDMK
Display Mode 1.54 inch OLED with PCB
Outline Size (mm) 42.40 × 38.00 × 2.65
AA Size (mm) 35.052 × 17.516
Display Dots 128×64
View Angle All
Working Temperature -40°C to 70°C
Storage Temperature -40°C to 85°C

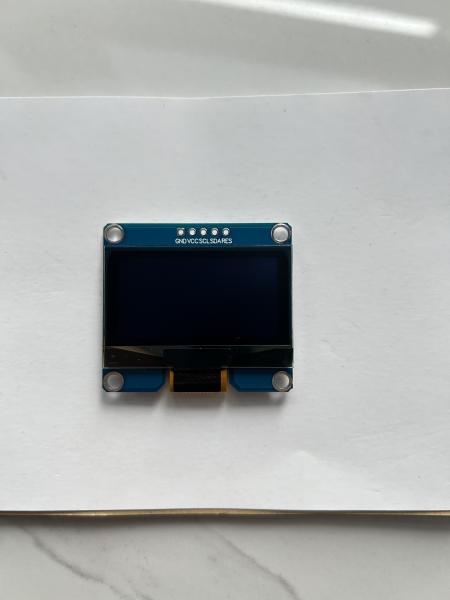

Product Images
1.54 inch OLED with PCB 128x64 dots IIC interface driving IC SSD1309 120C/D 1.54 inch OLED with PCB 128x64 dots IIC interface driving IC SSD1309 120C/D

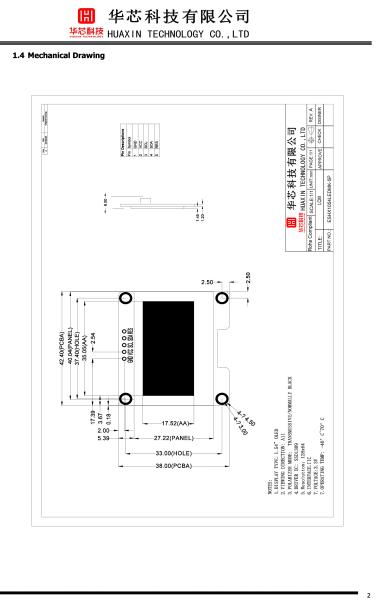

Pin Definition Diagram
1.54 inch OLED with PCB 128x64 dots IIC interface driving IC SSD1309 120C/D
OLED Technology Overview
OLED Advantages
  • Lighter and thinner than LCD displays
  • High contrast ratio and color saturation
  • Lower power consumption
OLED Disadvantages
  • Higher cost compared to LCD and TFT
  • Shorter lifespan than LCD and TFT
Company Profile
HuaXin Technology Advantages
  • Cost-effective inland manufacturing base
  • Advanced equipment for stable quality
  • Automated processes for efficiency
  • 20+ years experience in LCD field
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Company Details
  • Location: Hubei, Enshi
  • Founded: 2009
  • Specialization: R&D, production and sales of LCD, LCM, TFT, backlight, OLED
  • Registered capital: 20 million
  • Employees: 500+
  • R&D team: 10% of workforce
  • QC team: 15% of workforce
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousands/Day
Backlight Production 100 200 300 500 500 Thousands/Day
OLED Production 10 20 30 40 50 Thousands/Day
Product Applications
  • Wearable devices
  • Portable audio players
  • Thermostats and home automation
  • Car dashboards and instrument clusters
  • Medical devices
  • Consumer electronics
  • Industrial and professional equipment
PMOLED Characteristics
  • Passive matrix structure with independent OLED pixels
  • High contrast ratio and vibrant colors without backlight
  • Power efficient - only active pixels consume energy
  • Thin and flexible substrate options
  • Best suited for smaller displays due to resolution limitations
  • Potential for screen persistence with static images
AMOLED vs PMOLED Comparison
AMOLED Advantages
  • Higher resolution capabilities
  • Superior color reproduction
  • Faster refresh rates
  • Improved power efficiency
  • Support for larger screen sizes
  • Better flexibility for curved displays
