2.7 Inch Oled Touch Panel PMOLED Display 128*64 Monochrome Low Power Consumption
2.7 Inch Oled Touch Panel PMOLED Display 128*64 Monochrome Low Power Consumption
2.7 Inch Oled Touch Panel PMOLED Display 128*64 Monochrome Low Power Consumption
2.7 Inch Oled Touch Panel PMOLED Display 128*64 Monochrome Low Power Consumption
2.7 Inch Oled Touch Panel PMOLED Display 128*64 Monochrome Low Power Consumption
2.7 Inch Oled Touch Panel PMOLED Display 128*64 Monochrome Low Power Consumption
2.7 Inch Oled Touch Panel PMOLED Display 128*64 Monochrome Low Power Consumption
2.7 Inch Oled Touch Panel PMOLED Display 128*64 Monochrome Low Power Consumption
2.7 Inch Oled Touch Panel PMOLED Display 128*64 Monochrome Low Power Consumption
2.7 Inch Oled Touch Panel PMOLED Display 128*64 Monochrome Low Power Consumption
2.7 Inch Oled Touch Panel PMOLED Display 128*64 Monochrome Low Power Consumption
2.7 Inch Oled Touch Panel PMOLED Display 128*64 Monochrome Low Power Consumption
Specifications
Brand Name :
HuaXin
Model Number :
HX270Y-128064
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$7.6
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
PMOLED sccreen
name :
PMOLED display
Resolution :
128*64
size :
2.7 inch
Color :
white/yellow
Interface :
8-bit68XX/80XXParallel4-wireSP
Driving IC :
SSD1325
Description
2.7-inch PMOLED Display with 128×64 Resolution

High-contrast monochrome OLED display with grayscale capability, ideal for industrial control instruments, medical devices, and handheld terminals. Features low power consumption, wide temperature range, and compatibility with SPI/I2C interfaces.

Key Specifications
Attribute Value
Display Technology PMOLED Screen
Resolution 128×64
Screen Size 2.7 inch
Display Color White/Yellow
Interface 8-bit 68XX/80XX Parallel 4-wire SPI
Driving IC SSD1325

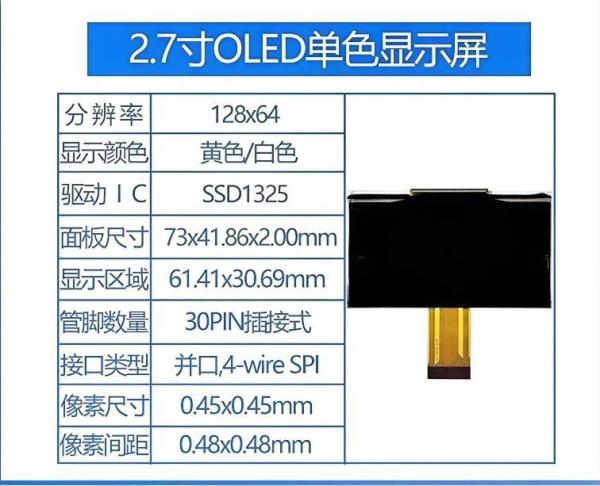

Technical Parameters
Part Number HX2864ASWDF06
Active Area 61.41×30.69 mm
Module Size 73×41.86×2 mm
Operating Temperature -40°C to 70°C
Pin Quantity 30 PINS

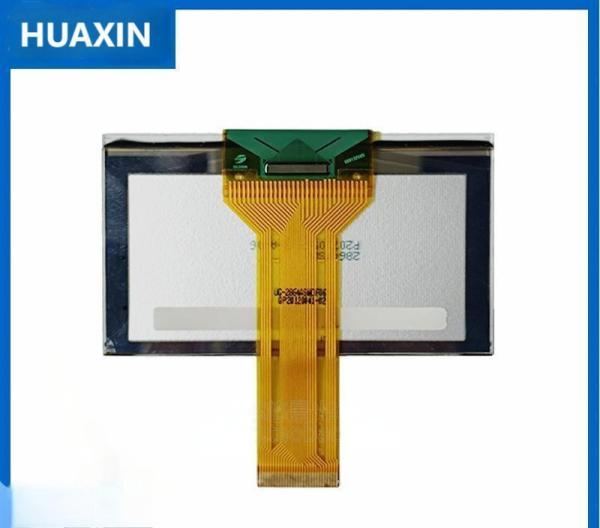

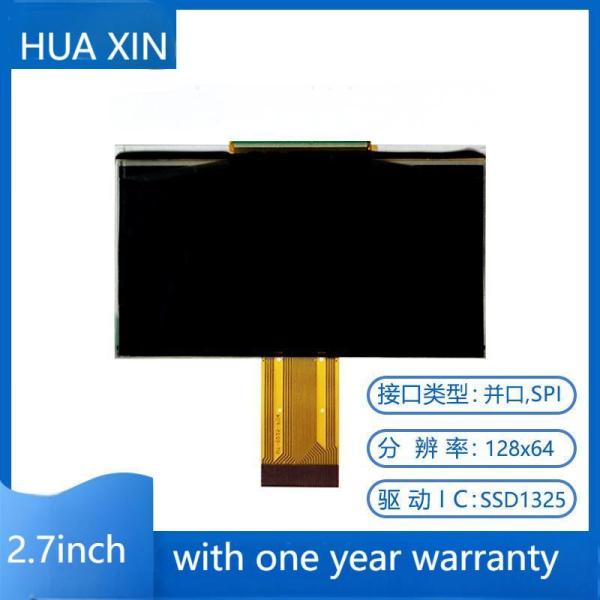

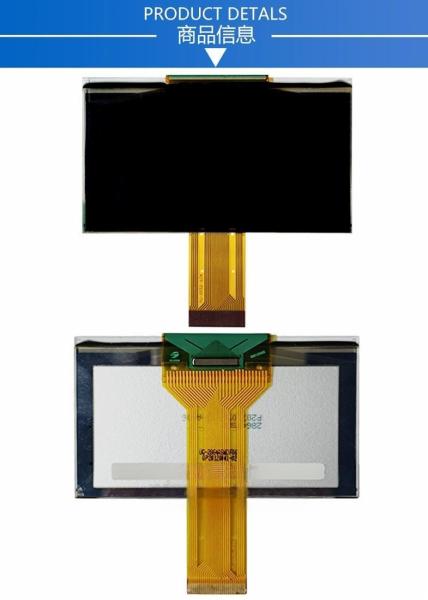

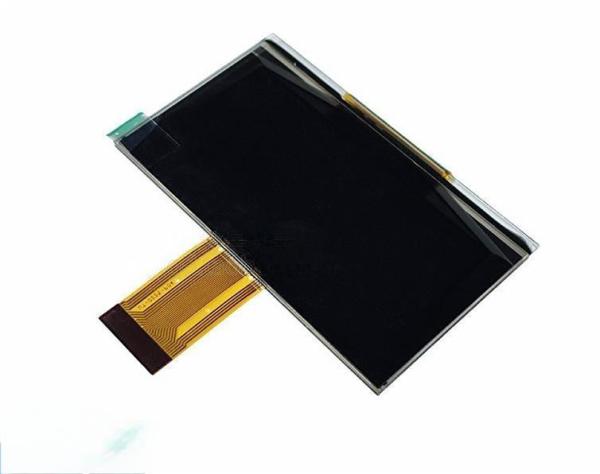

Product Images
2.7 Inch Oled Touch Panel PMOLED Display 128*64 Monochrome Low Power Consumption 2.7 Inch Oled Touch Panel PMOLED Display 128*64 Monochrome Low Power Consumption 2.7 Inch Oled Touch Panel PMOLED Display 128*64 Monochrome Low Power Consumption 2.7 Inch Oled Touch Panel PMOLED Display 128*64 Monochrome Low Power Consumption 2.7 Inch Oled Touch Panel PMOLED Display 128*64 Monochrome Low Power Consumption
Technical Drawings
2.7 Inch Oled Touch Panel PMOLED Display 128*64 Monochrome Low Power Consumption 2.7 Inch Oled Touch Panel PMOLED Display 128*64 Monochrome Low Power Consumption
PMOLED Technology Overview
Advantages
  • Lighter and thinner than LCD displays
  • High contrast ratio and color saturation
  • Lower power consumption (only active pixels draw power)
  • Flexible substrate compatibility
  • Excellent viewing angles
Characteristics
  • Passive matrix addressing scheme
  • Each OLED pixel emits light independently
  • Suitable for smaller screen sizes (typically under 3")
  • Fast response times
  • Wide operating temperature range
Product Applications
  • Wearable devices and fitness trackers
  • Portable audio players and electronic instruments
  • Thermostats and home automation devices
  • Car dashboards and instrument clusters
  • Medical monitoring equipment
  • Industrial control panels and professional equipment
  • Consumer electronics displays
Manufacturer Information

Huaxin Technology (Enshi) Co., Ltd.
Hubei, Enshi | Founded: 2009
High-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED technologies

Company Advantages
  • Cost-effective inland production base
  • Advanced equipment for stable quality
  • Automated production processes
  • 20+ years of industry experience
  • Custom design capabilities
Certifications
  • ISO 14001
  • ISO 9001/IATF 16949
  • SGS certified LCD modules
Production Capacity
Product Type 2021 2022 2023 2024 2025
LCD (thousands/day) 4.5 9 9 9 9
LCM (thousands/day) 70 150 300 450 450
Backlight (thousands/day) 100 200 300 500 500
OLED (thousands/day) 10 20 30 40 50
