1.32 Inch Pmoled Display Screen Oled Module Arduino 128*96 Dots 25pins IC SSD1327Z
1.32 Inch Pmoled Display Screen Oled Module Arduino 128*96 Dots 25pins IC SSD1327Z
1.32 Inch Pmoled Display Screen Oled Module Arduino 128*96 Dots 25pins IC SSD1327Z
1.32 Inch Pmoled Display Screen Oled Module Arduino 128*96 Dots 25pins IC SSD1327Z
1.32 Inch Pmoled Display Screen Oled Module Arduino 128*96 Dots 25pins IC SSD1327Z
1.32 Inch Pmoled Display Screen Oled Module Arduino 128*96 Dots 25pins IC SSD1327Z
1.32 Inch Pmoled Display Screen Oled Module Arduino 128*96 Dots 25pins IC SSD1327Z
1.32 Inch Pmoled Display Screen Oled Module Arduino 128*96 Dots 25pins IC SSD1327Z
Specifications
Brand Name :
HuaXin
Model Number :
HX2896KSWXG01
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$2.6
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
OLED display
name :
blue oled
size :
1.32 inch
Color :
white/blue
Brightness :
100c/d
Interface :
3/4 SPI,I2C
Driving IC :
SSD1327Z
Connecting method :
connector
Description

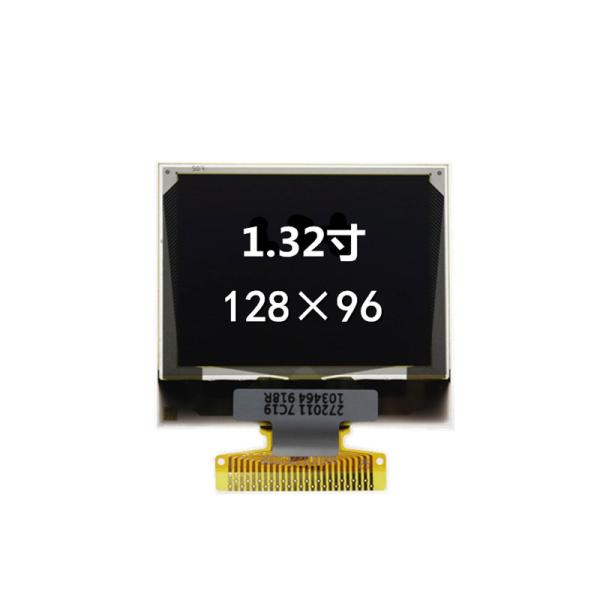

1.32 Inch WHITE/BLUE PMOLED Display

High-resolution 128×96 dot matrix display with 3/4 SPI and I2C interface, powered by SSD1327Z driving IC.

Key Specifications
Attribute Value
Display Technology OLED display
Size 1.32 inch
Color White/Blue
Brightness 100c/d
Interface 3/4 SPI, I2C
Driving IC SSD1327Z
Connecting Method Connector
Technical Parameters
Part No. HX2896KSWXG01
Display Technology PMOLED
Diagonal Screen Size 1.32 inch
Resolution 128×96
Active Area 26.86×21.04 mm
Module Size 36.5×32.4×1.41 mm
Pixel Pitch 0.21×0.21 mm
Pixel Size 0.23×0.23 mm
Operation Temperature -40°C to 70°C
Product Images
1.32 Inch Pmoled Display Screen Oled Module Arduino 128*96 Dots 25pins IC SSD1327Z 1.32 Inch Pmoled Display Screen Oled Module Arduino 128*96 Dots 25pins IC SSD1327Z 1.32 Inch Pmoled Display Screen Oled Module Arduino 128*96 Dots 25pins IC SSD1327Z
Drawing & Pin Definition
1.32 Inch Pmoled Display Screen Oled Module Arduino 128*96 Dots 25pins IC SSD1327Z
OLED Technology Overview
OLED Advantages
  • Lighter and thinner than LCD displays
  • High contrast ratio and color saturation
  • Lower power consumption
  • Wide viewing angles
  • Fast response time
OLED Disadvantages
  • Higher cost compared to LCD and TFT
  • Shorter lifespan than LCD technology
  • Potential for burn-in with static images
PMOLED Characteristics
  • Passive matrix addressing scheme with row/column control
  • Each OLED pixel emits light independently
  • Excellent contrast and color reproduction without backlight
  • Power efficient - only active pixels consume energy
  • Thin and flexible construction possibilities
  • Ideal for small to medium sized displays
Product Applications
  • Wearable devices
  • Portable audio players
  • Thermostats and home automation
  • Car dashboards and instrument clusters
  • Medical devices
  • Consumer electronics
  • Industrial and professional equipment
Manufacturer Information

Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi | Founded: 2009
High-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED technologies

Company Advantages
  • Cost-effective inland production base
  • Advanced equipment for stable quality
  • Automated production processes
  • 20+ years of industry experience
  • Custom design capabilities
Certifications
  • ISO 14001
  • ISO 9001/IATF 16949
  • SGS certified LCD modules
Production Capacity
Product 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousand Pieces/Day
Backlight Production 100 200 300 500 500 Thousand Pieces/Day
OLED Production 10 20 30 40 50 Thousand Pieces/Day
