9 inch bar type TFT display module 1920x384 dots LVDS interface driving IC FL5894AA 300c/d
9 inch bar type TFT display module 1920x384 dots LVDS interface driving IC FL5894AA 300c/d
9 inch bar type TFT display module 1920x384 dots LVDS interface driving IC FL5894AA 300c/d
9 inch bar type TFT display module 1920x384 dots LVDS interface driving IC FL5894AA 300c/d
9 inch bar type TFT display module 1920x384 dots LVDS interface driving IC FL5894AA 300c/d
9 inch bar type TFT display module 1920x384 dots LVDS interface driving IC FL5894AA 300c/d
Specifications
Brand Name :
HuaXin
Model Number :
HX0900E3A-IH
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$16
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
tft screen
name :
bar type TFT
size :
9 inch
resolution :
1920 x 384
Brightness :
300c/d
Interface :
LVDS
Driving IC :
FL5894AA
Description
9 inch Bar Type TFT Display Module

High-resolution 1920×384 dots display with LVDS interface and FL5894AA driving IC, featuring 300c/d brightness and all-view angle capability.

Key Specifications
Attribute Value
Display Technology TFT Screen
Size 9 inch
Resolution 1920 × 384
Brightness 300c/d
Interface LVDS
Driving IC FL5894AA
Technical Parameters
Part No. HX0900E3A-IH
Outline Size (mm) 235.8(W) × 55.8(H) × 8.65(D)
AA Size (mm) 224.64(W) × 44.93(H)
Display Dots 1920 × 384
View Angle All
Working Temperature -30°C to 80°C
Storage Temperature -30°C to 85°C

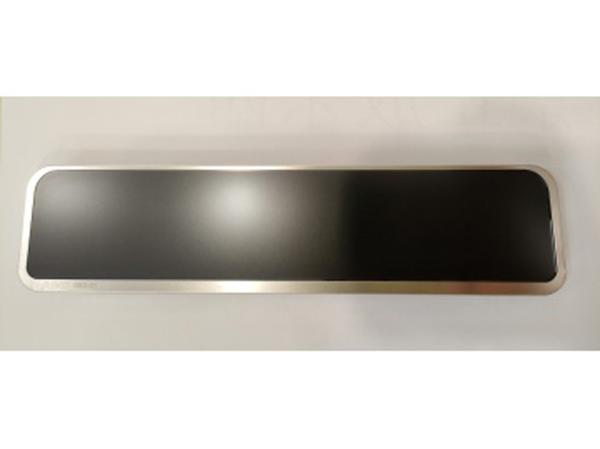

Product Images
9 inch bar type TFT display module 1920x384 dots LVDS interface driving IC FL5894AA 300c/d 9 inch bar type TFT display module 1920x384 dots LVDS interface driving IC FL5894AA 300c/d 9 inch bar type TFT display module 1920x384 dots LVDS interface driving IC FL5894AA 300c/d
TFT Product Knowledge
9 inch bar type TFT display module 1920x384 dots LVDS interface driving IC FL5894AA 300c/d 9 inch bar type TFT display module 1920x384 dots LVDS interface driving IC FL5894AA 300c/d
Huaxin Technology Advantages
  • Cost-effective manufacturing base located in inland city
  • Advanced equipment ensuring stable quality
  • Fully automated processes for efficiency and consistency
  • Experienced engineering team with 20+ years in LCD field
  • Custom design capabilities for specialized products
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Company Information

Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi
Founded: 2009
High-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production

Product Range:
LCD: VA, TN, HTN, STN, FSTN, CSTN series
LCM: COB, TBA, COG, TP, LED backlight series

Company Stats:
Registered capital: 20 million
Employees: 500+
R&D: 10% of workforce
QC: 15% of workforce

Production Capacity
Product 2021 2022 2023 2024 2025
LCD (thousands/Day) 4.5 9 9 9 9
LCM (thousands/Day) 70 150 300 450 450
Backlight (thousands/Day) 100 200 300 500 500
OLED (thousands/Day) 10 20 30 40 50
Product Applications
  • Car navigation systems & printers
  • Video communication & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Characteristics
  • Image Quality: High resolution, sharpness, and color accuracy
  • Response Time: Fast pixel switching capability
  • Viewing Angles: Wide viewing angles with minimal color shift
  • Energy Efficiency: Lower power consumption than alternative technologies
  • Size Flexibility: Available in various sizes from small handheld to large panels
  • Backlighting: Typically uses LED backlight systems
  • Versatility: Suitable for diverse applications across industries
TFT Display Limitations
  • Viewing angles may be limited compared to some alternatives
  • Contrast ratio limitations
  • Backlighting requirements affect power consumption
  • Potential for motion blur in fast-moving images
  • Limited flexibility in physical form
  • Color gamut may be restricted compared to newer technologies
