4.82 inch bar type TFT display module 480*1120 dots MIPI interface driving IC GC9503V 400c/d
4.82 inch bar type TFT display module 480*1120 dots MIPI interface driving IC GC9503V 400c/d
4.82 inch bar type TFT display module 480*1120 dots MIPI interface driving IC GC9503V 400c/d
4.82 inch bar type TFT display module 480*1120 dots MIPI interface driving IC GC9503V 400c/d
4.82 inch bar type TFT display module 480*1120 dots MIPI interface driving IC GC9503V 400c/d
4.82 inch bar type TFT display module 480*1120 dots MIPI interface driving IC GC9503V 400c/d
4.82 inch bar type TFT display module 480*1120 dots MIPI interface driving IC GC9503V 400c/d
4.82 inch bar type TFT display module 480*1120 dots MIPI interface driving IC GC9503V 400c/d
Specifications
Brand Name :
HuaXin
Model Number :
HX048BG002A
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$26.7
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
display lcd tft
name :
bar type TFT
size :
4.82 inch
resolution :
480*1120
Brightness :
400c/d
Interface :
MIPI
Driving IC :
GC9503V
Description
4.82 Inch Bar Type TFT Display Module
Key Specifications
Display Technology TFT LCD
Size 4.82 inch
Resolution 480 × 1120 dots
Brightness 400 cd/m²
Interface MIPI
Driving IC GC9503V
Technical Parameters
Part No. HX048BG002A
Outline Size 68.04 × 130.2 × 3.57 mm
Active Area Size 55.25 × 120.96 mm
View Angle All directions
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C

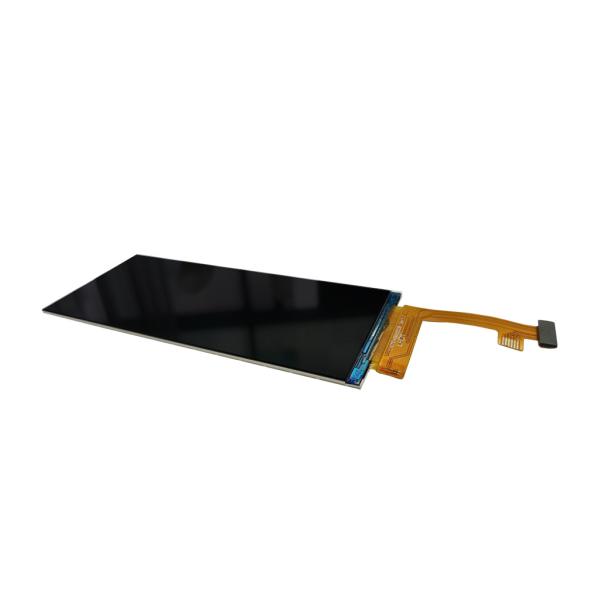

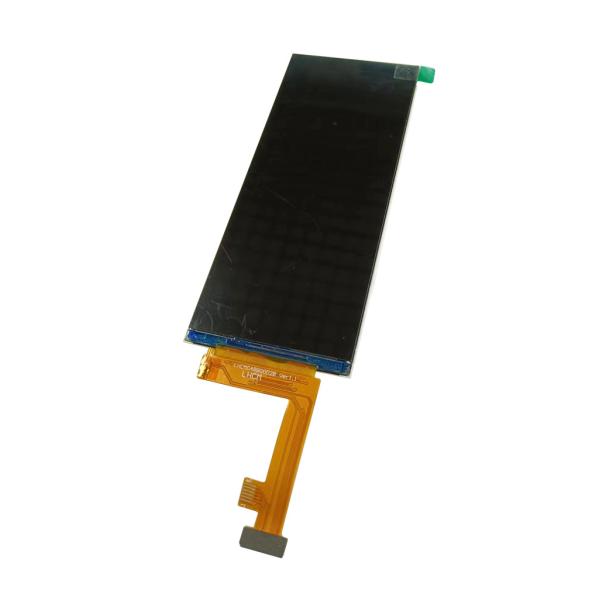

Product Images
4.82 inch bar type TFT display module 480*1120 dots MIPI interface driving IC GC9503V 400c/d 4.82 inch bar type TFT display module 480*1120 dots MIPI interface driving IC GC9503V 400c/d 4.82 inch bar type TFT display module 480*1120 dots MIPI interface driving IC GC9503V 400c/d 4.82 inch bar type TFT display module 480*1120 dots MIPI interface driving IC GC9503V 400c/d
Technical Drawings
4.82 inch bar type TFT display module 480*1120 dots MIPI interface driving IC GC9503V 400c/d
TFT Production Process
4.82 inch bar type TFT display module 480*1120 dots MIPI interface driving IC GC9503V 400c/d 4.82 inch bar type TFT display module 480*1120 dots MIPI interface driving IC GC9503V 400c/d
Manufacturer Advantages
  • Cost-effective inland factory location
  • Advanced equipment ensuring stable quality
  • Highly automated processes for efficiency
  • Experienced engineering team with 20+ years in LCD field
  • Custom design capabilities
Certifications: ISO14001, ISO9001, IATF16949, SGS
Company: Huaxin Technology (Enshi) Co., LTD
Location: Hubei, Enshi
Founded: 2009
Specialization: R&D, production and sales of LCD, LCM, TFT, backlight, OLED
Staff: 500+ employees (10% R&D, 15% QC)
Capital: 20 million RMB
Production Capacity
Product Type 2021 2022 2023 2024 2025
LCD (Thousands/Day) 4.5 9 9 9 9
LCM (Thousands/Day) 70 150 300 450 450
Backlight (Thousands/Day) 100 200 300 500 500
OLED (Thousands/Day) 10 20 30 40 50
Applications
  • Car navigation systems & printers
  • Video communication & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • High image quality with excellent resolution and color accuracy
  • Fast response times for smooth motion display
  • Wide viewing angles with minimal color shift
  • Energy efficient operation
  • Flexible sizing options for various applications
  • LED backlighting for consistent illumination
TFT Display Considerations
  • Viewing angles may be limited compared to some technologies
  • Contrast ratios may be lower than alternative solutions
  • Backlighting increases power consumption
  • Potential for motion blur in fast-moving content
  • Limited flexibility in physical form factors
  • Color gamut may be narrower than some alternatives
