2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications
2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications
2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications
2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications
2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications
2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications
2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications
2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications
Specifications
Brand Name :
HuaXin
Model Number :
HX0279-01
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000
Price :
$6.8~$6.5
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
bar type lcd display
Name :
bar type lcd
Display size :
2.79 inch tft
Resolution :
142x428
interface :
SPI
Brightness :
400c/d
View angle :
all
Description

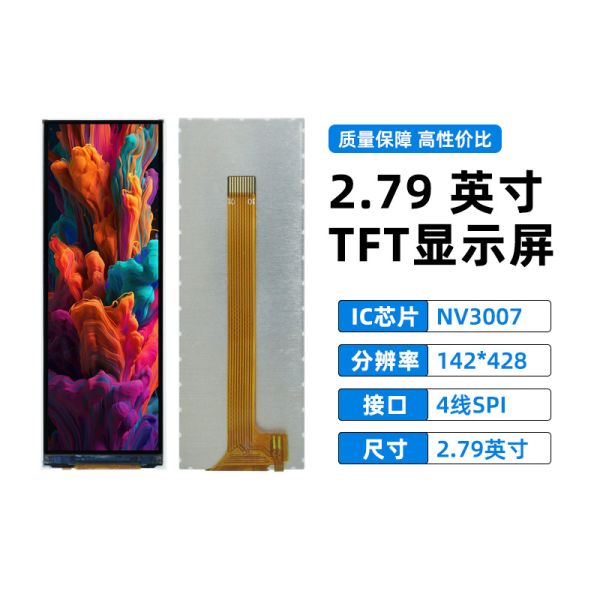

2.79 Inch Bar Type TFT 142x428 dots SPI Interface 400cd/M2 TFT Display screen
Key Specifications
Part No. HX0279-01
Display Size 2.79 inch bar type TFT display
Outline Size (mm) 24.38*69.43*2.1
AA Size (mm) 21.28x64.14
Resolution 142x428
Interface SPI
Driver IC NV3007
Brightness 400c/d
View Angle ALL
Product Images

2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications

2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications

2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications

2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications

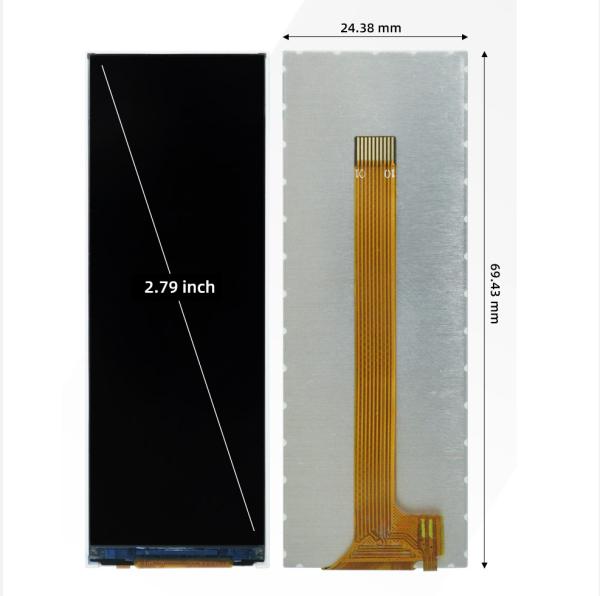

Technical Drawings
2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications
2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications
TFT Display Characteristics
  • High resolution (440*1920) with excellent image quality and color accuracy
  • Fast response time for smooth motion display
  • Wide viewing angles with minimal color shift
  • Energy efficient design with low power consumption
  • LED backlighting for uniform illumination
  • Robust construction for industrial applications
Product Applications
  • Automotive displays and navigation systems
  • Medical devices and diagnostic equipment
  • Industrial control systems and HMI
  • Handheld devices and portable instruments
  • Digital signage and advertising displays
Manufacturer Information
Company Advantages
  • Cost-effective production with mainland China factory
  • Advanced equipment ensuring consistent quality
  • Fully automated production processes
  • 20+ years of engineering expertise
  • Custom design capabilities for specialized applications
Certifications
  • ISO14001 Environmental Management
  • ISO9001/IATF16949 Quality Management
  • SGS certified LCD modules
Company Profile
Huaxin Technology (Enshi) Co., LTD
Location: Hubei, Enshi | Founded: 2009
Specialization: Research, development, production and sales of LCD, LCM, TFT, backlight, and OLED products
Product Range
  • LCD: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM: COB, TBA, COG, TP, LED backlight series
Production Capacity
Product 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
