4 inch bar type TFT display module 640*1280 dots MIPI interface driving IC ST7703-G5-DP 350c/d
4 inch bar type TFT display module 640*1280 dots MIPI interface driving IC ST7703-G5-DP 350c/d
4 inch bar type TFT display module 640*1280 dots MIPI interface driving IC ST7703-G5-DP 350c/d
4 inch bar type TFT display module 640*1280 dots MIPI interface driving IC ST7703-G5-DP 350c/d
4 inch bar type TFT display module 640*1280 dots MIPI interface driving IC ST7703-G5-DP 350c/d
4 inch bar type TFT display module 640*1280 dots MIPI interface driving IC ST7703-G5-DP 350c/d
Specifications
Brand Name :
HuaXin
Model Number :
HX040HD
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$10.8
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
display lcd tft
name :
bar type TFT
size :
4 inch
resolution :
640*1280
Brightness :
350c/d
Interface :
MIPI
Driving IC :
ST7703-G5-DP
Description
4 inch Bar Type TFT Display Module - 640×1280 Dots, MIPI Interface, ST7703-G5-DP Driving IC, 350c/d Brightness
Product Specifications
Attribute Value
Display Technology TFT LCD
Type Bar Type TFT
Size 4 inch
Resolution 640×1280 dots
Brightness 350c/d
Interface MIPI
Driving IC ST7703-G5-DP
Technical Parameters
Part No. HX040HD
Display Mode 4 inch TFT display
Outline Size (mm) 47.73×97.55×1.93
AA Size (mm) 45.31×90.88
Display Dots 640×1280
View Angle All directions
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C

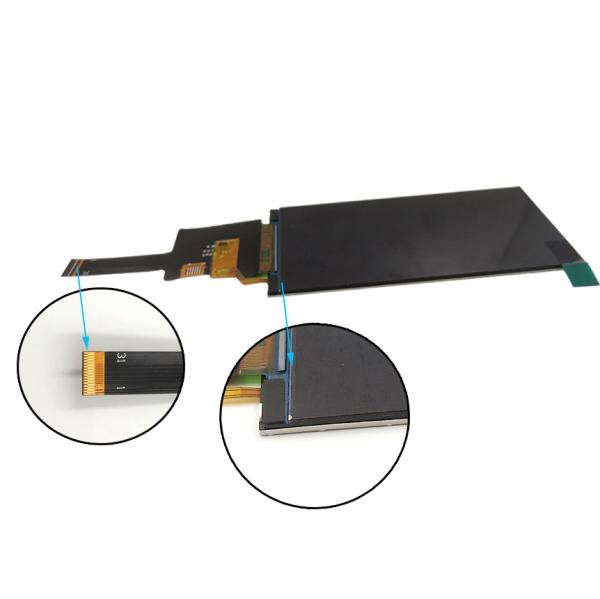

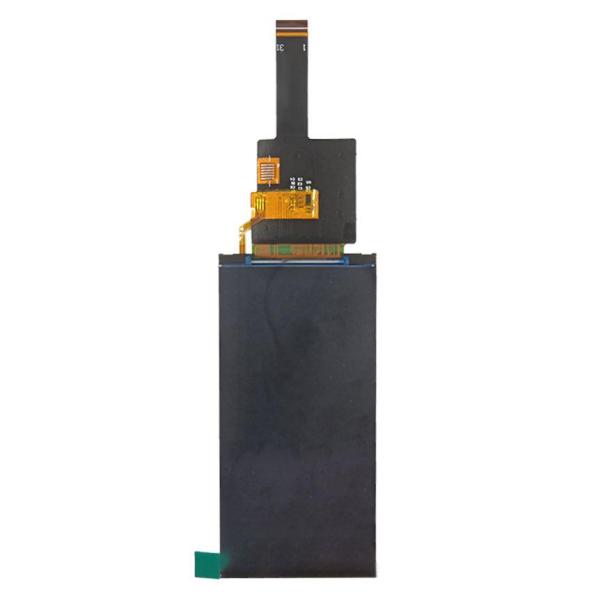

Product Images
4 inch bar type TFT display module 640*1280 dots MIPI interface driving IC ST7703-G5-DP 350c/d 4 inch bar type TFT display module 640*1280 dots MIPI interface driving IC ST7703-G5-DP 350c/d 4 inch bar type TFT display module 640*1280 dots MIPI interface driving IC ST7703-G5-DP 350c/d
Technical Drawings
4 inch bar type TFT display module 640*1280 dots MIPI interface driving IC ST7703-G5-DP 350c/d
TFT Technology Overview
4 inch bar type TFT display module 640*1280 dots MIPI interface driving IC ST7703-G5-DP 350c/d 4 inch bar type TFT display module 640*1280 dots MIPI interface driving IC ST7703-G5-DP 350c/d
Manufacturer Advantages
  • Cost-effective inland factory location
  • Advanced equipment for stable quality
  • Highly automated processes for efficiency
  • 20+ years experience in LCD engineering
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Company Profile

Huaxin Technology (Enshi) Co., LTD - Hubei, Enshi

Founded: 2009 | Registered Capital: 20 million

Staff: 500+ (10% R&D, 15% QC)

Specializes in R&D, production and sales of LCD, LCM, TFT, backlight, and OLED products

Production Capacity
Product 2021 2022 2023 2024 2025 Unit
LCD 4.5 9 9 9 9 Thousands/Day
LCM 70 150 300 450 450 Thousands/Day
Backlight 100 200 300 500 500 Thousands/Day
OLED 10 20 30 40 50 Thousands/Day
Applications
  • Car navigation systems & printers
  • Video communication & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Excellent image quality with high resolution and color accuracy
  • Fast response times for smooth motion display
  • Wide viewing angles with minimal color shift
  • Energy efficient operation
  • Available in various sizes for diverse applications
  • LED backlighting for bright, uniform illumination
TFT Display Considerations
  • Viewing angles may be limited compared to some technologies
  • Contrast ratio may be lower than alternative solutions
  • Backlighting increases power consumption
  • Potential for motion blur in fast-moving content
  • Limited flexibility in physical form factors
  • Color gamut may be narrower than some alternatives
