2.25 Inch Bar Type TFT 76*284 4wire SPI Interface Driving IC ST7789
2.25 Inch Bar Type TFT 76*284 4wire SPI Interface Driving IC ST7789
2.25 Inch Bar Type TFT 76*284 4wire SPI Interface Driving IC ST7789
2.25 Inch Bar Type TFT 76*284 4wire SPI Interface Driving IC ST7789
2.25 Inch Bar Type TFT 76*284 4wire SPI Interface Driving IC ST7789
2.25 Inch Bar Type TFT 76*284 4wire SPI Interface Driving IC ST7789
2.25 Inch Bar Type TFT 76*284 4wire SPI Interface Driving IC ST7789
2.25 Inch Bar Type TFT 76*284 4wire SPI Interface Driving IC ST7789
2.25 Inch Bar Type TFT 76*284 4wire SPI Interface Driving IC ST7789
2.25 Inch Bar Type TFT 76*284 4wire SPI Interface Driving IC ST7789
2.25 Inch Bar Type TFT 76*284 4wire SPI Interface Driving IC ST7789
2.25 Inch Bar Type TFT 76*284 4wire SPI Interface Driving IC ST7789
Specifications
Brand Name :
HuaXin
Model Number :
HX76284
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000
Price :
$3.8~$3.2
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
tft panel
name :
bar type TFT
size :
2.25 inch
resolution :
76*284
Brightness :
300c/d
Interface :
4wire SPI
Driving IC :
ST7789
Description
2.25 inch TFT display module 76×284 dots 4wire SPI interface driving IC ST7789
Product Attributes
Attribute Value
Display Technology TFT panel
Name Bar type TFT
Size 2.25 inch
Resolution 76×284
Brightness 300c/d
Interface 4wire SPI
Driving IC ST7789
Product Description

HX76284 is 2.25 inch bar type TFT display, 76×284 dots, view angle 12:00 o'clock, 4wire SPI interface, 300nits, driving IC is ST7789.

Technical Parameters
Part No: HX76284
Display Mode 2.25 inch TFT display module
Outline size (mm) 21.08×73.15×3.56
AA size (mm) 14.797×55.295
Display dots 76×284
View Angle 12:00
Brightness 300c/d
Interface 4wire SPI
Driving IC ST7789

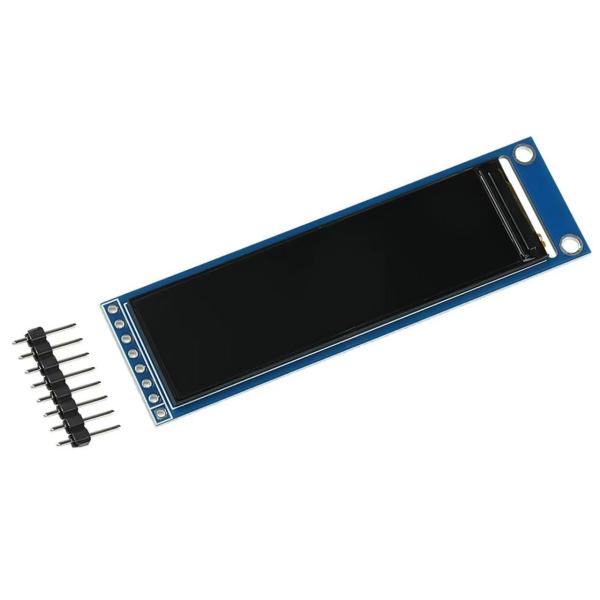

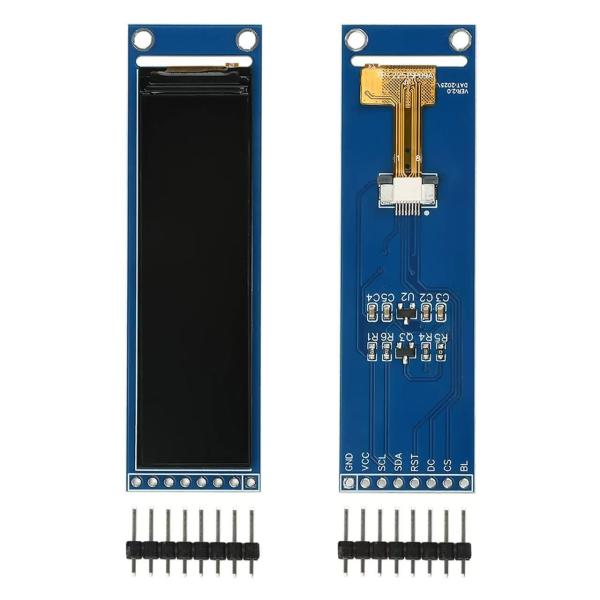

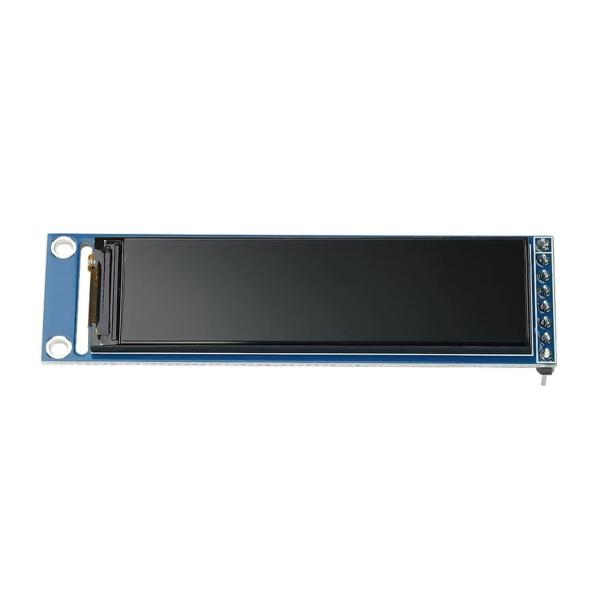

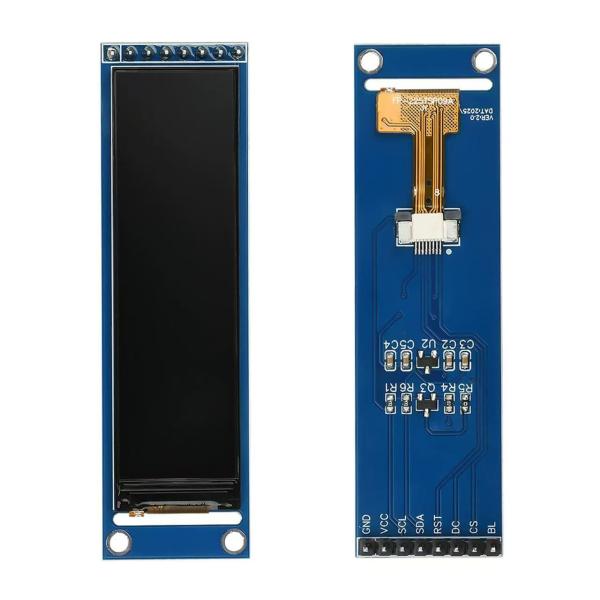

Product Images
2.25 Inch Bar Type TFT 76*284 4wire SPI Interface Driving IC ST7789
2.25 Inch Bar Type TFT 76*284 4wire SPI Interface Driving IC ST7789
2.25 Inch Bar Type TFT 76*284 4wire SPI Interface Driving IC ST7789
2.25 Inch Bar Type TFT 76*284 4wire SPI Interface Driving IC ST7789
TFT Product Knowledge

TFT substrate input and CF substrate input flow chart:

TFT structure:

Huaxin Advantage
  • Factory base located at inland city which has cost effective
  • Most advanced new equipment which can keep quality stable
  • Most processes using fully automatic equipment which has efficiency and stable quality
  • Professional engineers and production leaders who work in LCD field for more than 20 years
  • Self design for customized product

Our certificates: ISO14001, ISO9001/IATF16949, SGS of LCD module

Huaxin Technology (Enshi) Co., LTD

  • Hubei.Enshi
  • Date of foundation: 2009
  • High technology enterprise mainly working on research and development, producing and sells LCD, LCM, TFT, backlight, OLED
  • LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB, TBA, COG, TP, LED backlight and other series
  • Register capital: twenty million
  • Current staff: 500+
  • RD accounts for 10%
  • QC accounts for 15%
Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
Product Application
  • Car navigation & printer
  • Video call & advertising
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control and home appliance
TFT Display Characteristics
  • Image Quality: TFT displays offer excellent image quality with high resolution, sharpness, and color accuracy.
  • Response Time: TFT displays have fast response times, which means they can quickly switch pixels on and off.
  • Viewing Angles: TFT displays typically provide wide viewing angles, allowing the screen to be viewed clearly from different positions.
  • Energy Efficiency: TFT displays are energy-efficient compared to other display technologies.
  • Size and Flexibility: TFT displays can be manufactured in various sizes, from small screens to large panels.
  • Backlighting: Most TFT displays require a backlighting system, such as LED backlighting.
  • Wide Applications: Suitable for various industries and devices.
Limitations of TFT Displays
  • Limited Viewing Angles: Compared to some other technologies
  • Limited Contrast Ratio: May not achieve deep blacks
  • Backlighting and Power Consumption: Requires backlight which consumes power
  • Response Time and Motion Blur: May show motion blur in fast-moving images
  • Limited Flexibility: Rigid structure compared to newer technologies
  • Limited Color Gamut: May not reproduce the full range of colors
