4.1 Inch Oled Display Panel Oled Touch Screen Display 568x1232 Driving IC RM69A10
4.1 Inch Oled Display Panel Oled Touch Screen Display 568x1232 Driving IC RM69A10
4.1 Inch Oled Display Panel Oled Touch Screen Display 568x1232 Driving IC RM69A10
4.1 Inch Oled Display Panel Oled Touch Screen Display 568x1232 Driving IC RM69A10
4.1 Inch Oled Display Panel Oled Touch Screen Display 568x1232 Driving IC RM69A10
4.1 Inch Oled Display Panel Oled Touch Screen Display 568x1232 Driving IC RM69A10
4.1 Inch Oled Display Panel Oled Touch Screen Display 568x1232 Driving IC RM69A10
4.1 Inch Oled Display Panel Oled Touch Screen Display 568x1232 Driving IC RM69A10
Specifications
Brand Name :
HuaXin
Model Number :
ESHX4104AC73.A
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$30
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
oled display
Size :
4.1 inch
Name :
AMOLED
Resolution :
568(W) x RGB x 1232
interface :
MIPI
View angle :
all
Brightness :
280c/d
driving IC :
RM69A10
Touch IC :
GT9895
Description
4.1" AMOLED Display with Touch

High-resolution 4.1" AMOLED display featuring 568×1232 dots resolution, MIPI interface, RM69A10 driving IC, and GT9895 touch panel IC with 280c/d brightness.

Technical Specifications
Attribute Value
Part Number ESHX4104AC73.A
Display Technology AMOLED with Touch
Size 4.1 inch
Outline Dimensions 48.1 × 100.6 mm
Active Area 43.55 × 94.47 mm
Resolution 568(W) × RGB × 1232
Interface MIPI
Brightness 280c/d
Operating Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Driving IC RM69A10
Touch Panel IC GT9895

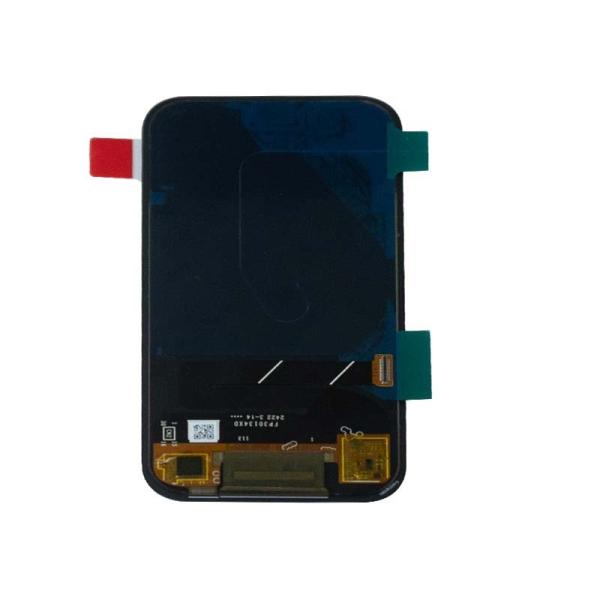

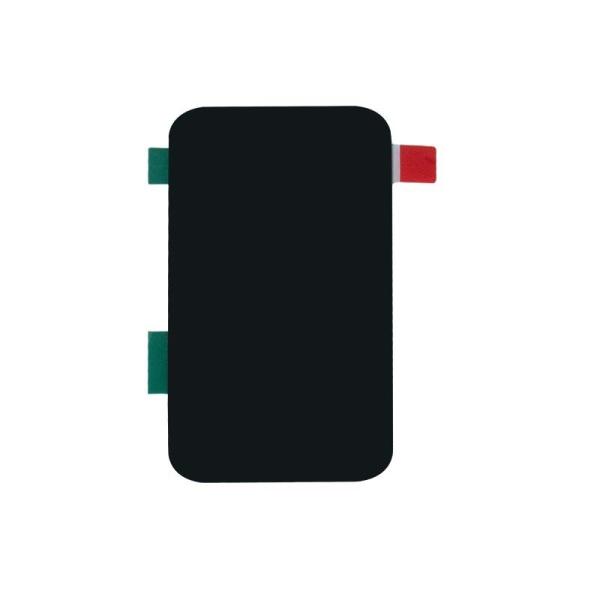

Product Images
4.1 Inch Oled Display Panel Oled Touch Screen Display 568x1232 Driving IC RM69A10 4.1 Inch Oled Display Panel Oled Touch Screen Display 568x1232 Driving IC RM69A10 4.1 Inch Oled Display Panel Oled Touch Screen Display 568x1232 Driving IC RM69A10

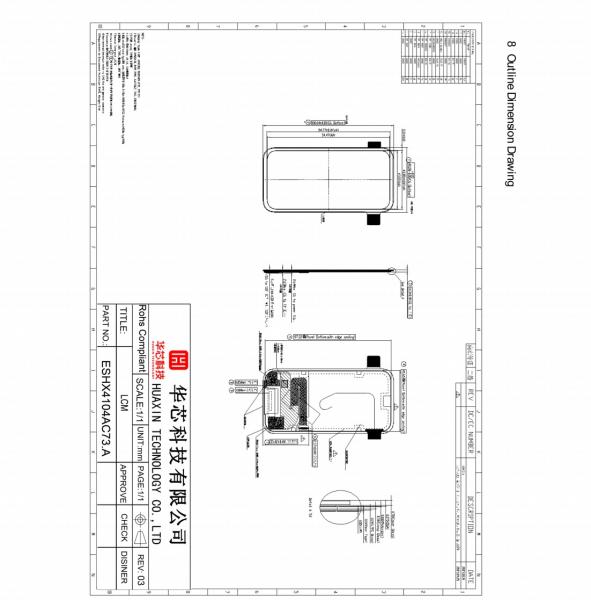

Technical Drawing
4.1 Inch Oled Display Panel Oled Touch Screen Display 568x1232 Driving IC RM69A10
AMOLED Technology Overview
Key Advantages
  • Perfect blacks and infinite contrast ratio
  • Vibrant colors with wide gamut
  • Ultra-fast response times
  • Flexible and thin design capabilities
  • Energy efficient operation
  • Always-On Display (AOD) functionality
  • Superior viewing angles
  • Excellent HDR performance
Considerations

AMOLED displays are more expensive than LCD and TFT alternatives, have a shorter operational lifetime, and offer lower peak brightness in sustained outdoor use.

Huaxin Technology Advantages
  • Cost-effective inland manufacturing base
  • Advanced equipment ensuring stable quality
  • Highly automated processes for efficiency
  • Expert engineering team with 20+ years experience
  • Custom design capabilities

Certifications: ISO14001, ISO9001, IATF16949, SGS

Company Profile: Founded 2009 in Hubei Enshi, specializing in LCD, LCM, TFT, backlight, and OLED technologies with 500+ employees and 10% R&D staff.

Production Capacity
Product 2021 2022 2023 2024 2025 Unit
LCD 4.5 9 9 9 9 Thousands/Day
LCM 70 150 300 450 450 Thousands/Day
Backlight 100 200 300 500 500 Thousands/Day
OLED 10 20 30 40 50 Thousands/Day
Typical Applications
  • Smartphones and tablets
  • Wearable devices (smartwatches)
  • AR/VR headsets
  • Television and monitors
  • Automotive displays
  • Medical equipment and smart home devices
Power Efficiency Comparison

AMOLED displays offer superior power efficiency in several key aspects compared to LCD and LED technologies:

  • Per-pixel power consumption: Only active pixels consume power, with black pixels using virtually none
  • Content-dependent efficiency: More efficient for dark interfaces compared to LCD's constant backlight
  • Dynamic brightness control: Individual pixel adjustment reduces power in low-light conditions
  • Size scalability: More efficient for smaller displays where pixel count is lower
