Specifications
Brand Name :
HuaXin
Model Number :
HX801YE-V1
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$160
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
amoled touch screen
Size :
8 inch
Name :
color oled display
Resolution :
1860×2480
interface :
MIPI Touch
View angle :
all
Brightness :
430C/D
CTP IC :
FT3881
Description
8 Inch AMOLED Display Module 1860*2480 Resolution MIPI Interface Driving IC RM69380 430C/D
Product Attributes
Attribute Value
Display Technology AMOLED touch screen
Size 8 inch
Name Color OLED display
Resolution 1860*2480
Interface MIPI Touch
View angle All
Brightness 430C/D
CTP IC FT3881
Technical Parameters
Part No: HX801YE-V1
Display Mode 8 inch AMOLED DISPLAY module
Outline size(mm) 165.688*125.416
AA size(mm) 162.688*122.016
Display dots 1860*2480
View Angle All
Brightness 430 c/d
Interface Drive: MIPI Touch: I2C
Driving IC RM69380
Touch IC FT3881

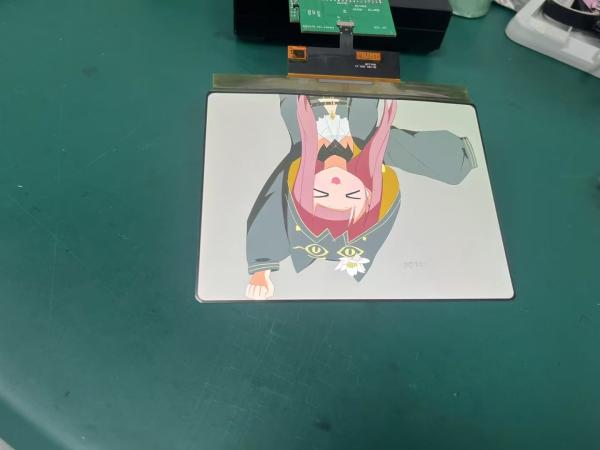

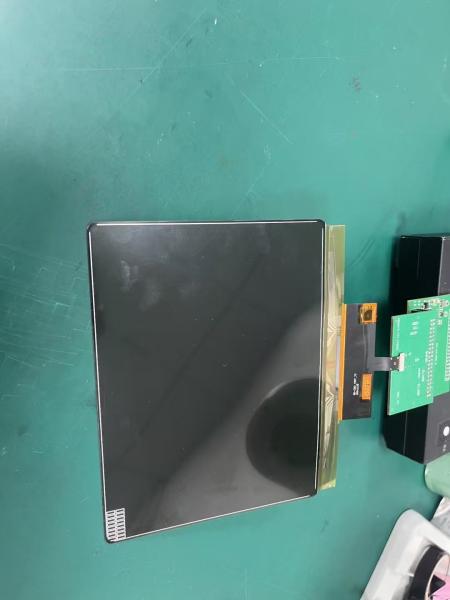

Product Pictures
8 Inch Amoled Display Module 1860×2480 MIPI Interface Driving IC RM69380 430C/D 8 Inch Amoled Display Module 1860×2480 MIPI Interface Driving IC RM69380 430C/D 8 Inch Amoled Display Module 1860×2480 MIPI Interface Driving IC RM69380 430C/D 8 Inch Amoled Display Module 1860×2480 MIPI Interface Driving IC RM69380 430C/D

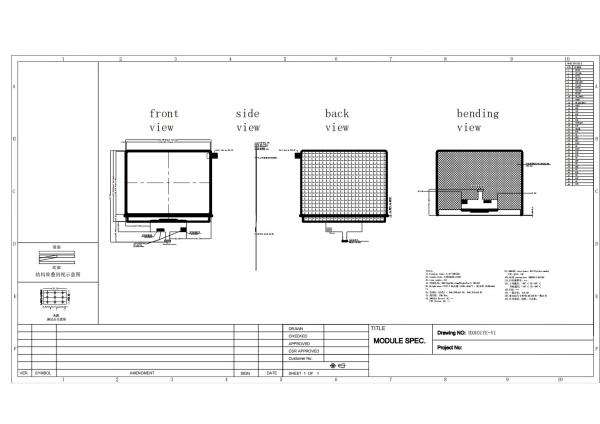

Drawing & Pin Definition
8 Inch Amoled Display Module 1860×2480 MIPI Interface Driving IC RM69380 430C/D
OLED Product Knowledge

The key advantages of AMOLED (Active-Matrix Organic Light-Emitting Diode) displays include:

  • Perfect Blacks & Infinite Contrast
  • Vibrant Colors & Wide Gamut
  • Ultra-Fast Response Times
  • Flexibility & Thin Designs
  • Energy Efficiency
  • Always-On Displays (AOD)
  • Superior Viewing Angles
  • HDR Performance

AMOLED Disadvantages:

AMOLED is extremely expensive than LCD and TFT, lifetime is shorter than LCD and TFT and has lower peak brightness in sustained use.

Huaxin Advantage
  • Factory base located at inland city which has cost effective
  • Most advanced new equipment which can keep quality stable
  • Most processes using fully automatic equipment which has efficiency and stable quality
  • Professional engineers and production leaders who work in LCD field for more than 20 years
  • Self design for customized product

Our certificates:

  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module

Huaxin Technology (Enshi) Co.,LTD

- Hubei.Enshi

- Date of foundation: 2009

- High technology enterprise mainly working on research and development, producing and sells LCD, LCM, TFT, backlight, OLED

- LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series

- LCM includes: COB, TBA, COG, TP, LED backlight and other series

- Register capital: twenty million

- Current staff: 500+

- R&D accounts for 10%

- QC accounts for 15%

Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
Product Application
  • Smartphones and tablets
  • Wearables (smartwatches like Apple Watch)
  • AR/VR headsets
  • Television and Monitors
  • Automotive display
  • Medical and smart home
Power Efficiency Comparison

1. Power Consumption:

  • AMOLED displays consume power on a per-pixel basis, meaning that pixels that display black or dark content consume very little power, while pixels displaying bright or white content consume more power.
  • LCD and LED displays require a constant backlight that consumes power regardless of the displayed content.

2. Content Dependency:

  • AMOLED displays are more power-efficient for content with dark or black areas, as individual pixels can be turned off to save power.
  • LCD and LED displays consume a relatively constant amount of power regardless of content, as the backlight remains active.

3. Brightness Control:

  • AMOLED displays can dynamically adjust pixel brightness, allowing better power efficiency in low-brightness scenarios.
  • LCD and LED displays typically have fixed backlight brightness, resulting in higher power consumption even when maximum brightness isn't needed.

4. Display Size:

  • AMOLED displays tend to be more power-efficient for smaller sizes, as power consumption scales with pixel count.
  • Larger LCD and LED displays may require more power-hungry backlights, potentially reducing their power efficiency compared to AMOLED displays of the same size.
