Specifications
Brand Name :
HuaXin
Model Number :
HX177U0M-XYJ-DKP0
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$11.6
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
AR display
Size :
1.77 inch
Name :
amoled display
Resolution :
160*128
interface :
8/9/16/18 - bit 6800/8080 - series Parallel- interface, Series Peripheral interface
View angle :
160°
Description
1.77 Inch OLED Screen Module Custom Oled Panel 160x128 Resolution Color SSD1353 Small Size
Product Specifications
Attribute Value
Display Technology AR display
Size 1.77 inch
Name amoled display
Resolution 160*128
Interface 8/9/16/18 - bit 6800/8080 - series Parallel-interface, Series Peripheral interface
View angle 160°
Product Description

1.77-inch Color OLED - 160x128 Resolution, Driven by SSD1353, Small-sized Color Display, Suitable for Smart Wearable/Portable Devices, High-color Gamut Display Module

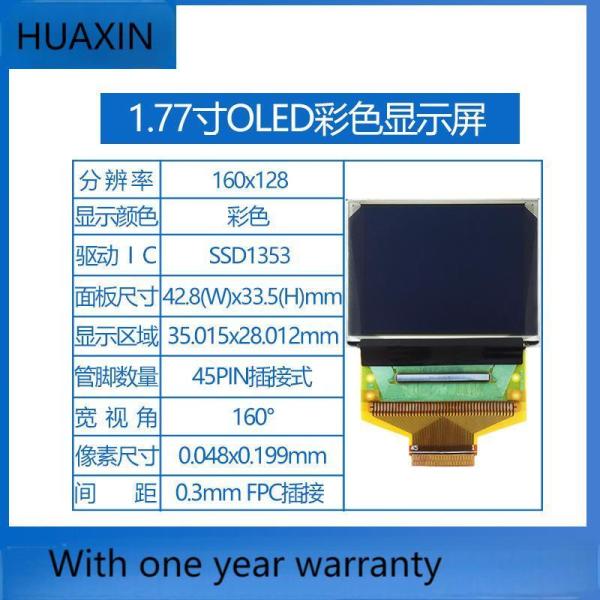

A: Technical Parameter
Part No HX177U0M-XYJ-DKP0
Display Mode 1.77-inch OLED Color Display Screen
AA size(mm) 35.015(W)x28.012(H)mm
Display dots 160*128
Panel Size 42.8(W)x33.52(H)mm
Pin Count 45PIN
Interface 8/9/16/18 - bit 6800/8080 - series Parallel-interface, Series Peripheral interface
Pixel Size 0.048(W)x0.199(H)mm

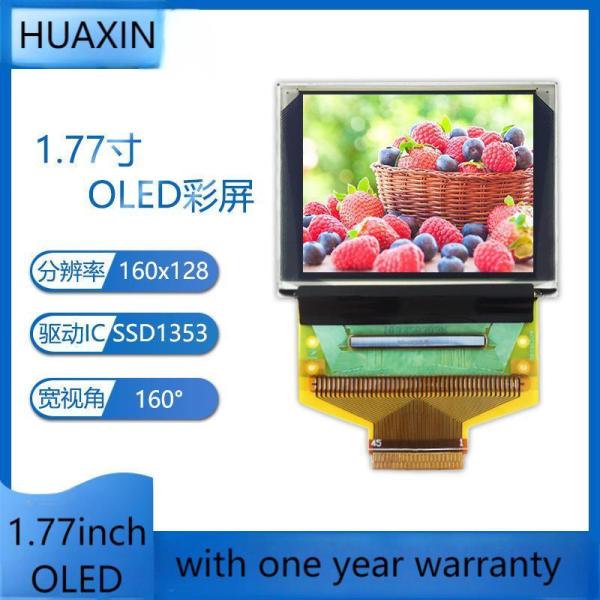

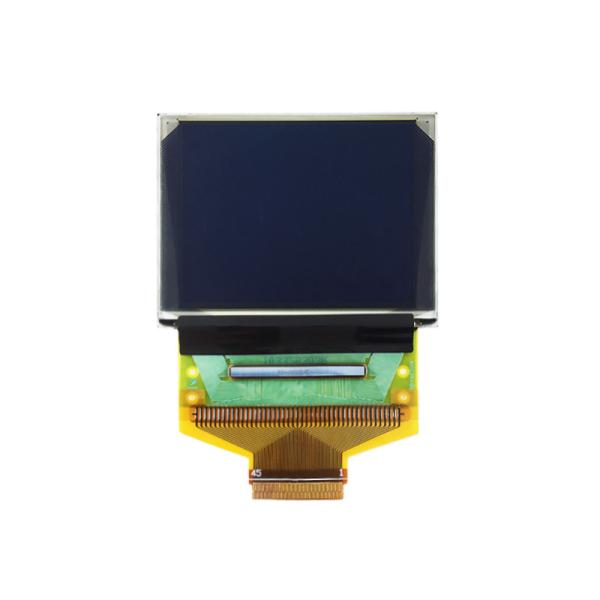

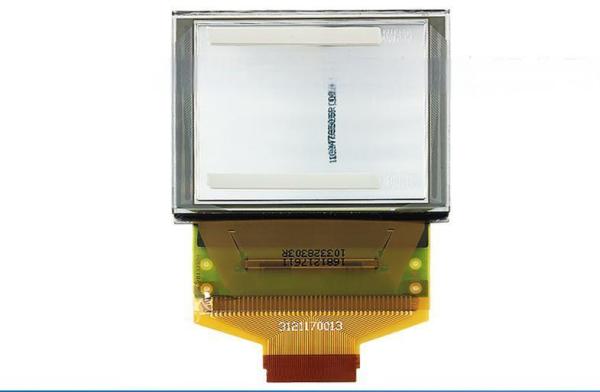

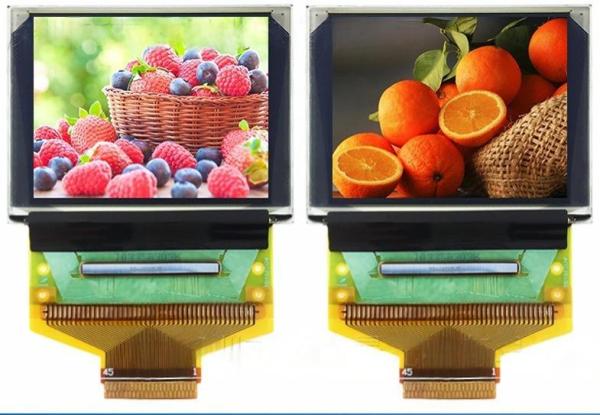

B: Product Images
1.77 Inch OLED Screen Module Custom Oled Panel 160x128 Resolution Color SSD1353 Small Size
1.77 Inch OLED Screen Module Custom Oled Panel 160x128 Resolution Color SSD1353 Small Size
1.77 Inch OLED Screen Module Custom Oled Panel 160x128 Resolution Color SSD1353 Small Size
1.77 Inch OLED Screen Module Custom Oled Panel 160x128 Resolution Color SSD1353 Small Size
1.77 Inch OLED Screen Module Custom Oled Panel 160x128 Resolution Color SSD1353 Small Size
1.77 Inch OLED Screen Module Custom Oled Panel 160x128 Resolution Color SSD1353 Small Size
C: Drawing & Pin Definition
1.77 Inch OLED Screen Module Custom Oled Panel 160x128 Resolution Color SSD1353 Small Size
D: Micro OLED Product Knowledge

The key advantages of Micro OLED (Silicon-based OLED) is an advanced display technology:

  • Ultra-High Pixel Density (PPI)
  • Thin, Lightweight, and compact
  • Superior Image Quality
  • Lower power consumption
  • Wide operating Temperature Range
  • High brightness & Efficiency (with advanced designs)
  • Manufacturing & Scalability benefits

Micro OLED Disadvantages:

  • High production costs & limited supply
  • Limited brightness (compared to Micro LED)
  • Limited view angles
  • Shorter lifespan (compared to micro LED)
  • Limited application scope (small display only)
  • Motion Blur & Persistence issues (in VR)
  • Competition from micro LED
E: Huaxin Advantage
  • Factory base located at inland city which has cost effective
  • Most advanced new equipment which can keep quality stable
  • Most processes using fully automatic equipment which has efficiency and stable quality
  • Professional engineers and production leaders who works in LCD field for more than 20 years
  • Self design for customized product

Our certificates:

  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module

Huaxin Technology (Enshi) Co., LTD

  • Hubei.Enshi
  • Date of foundation: 2009
  • High technology enterprise mainly work on research and development, producing and sells LCD, LCM, TFT, backlight, OLED
  • LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB, TBA, COG, TP, OLED and other series
  • Register capital: twenty million
  • Current staff: 500+
  • R&D accounts for 10%
  • QC accounts for 15%
F: Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
G: Product Application
  • VR/AR/MR headsets
  • Military / aerospace
  • Medical devices and microdisplays
  • Camera & electronic viewfinders
  • Automotive display
  • Wearable & smart glasses
H: Micro OLED vs. Traditional OLED vs. Micro LED
Feature Micro OLED Traditional OLED MicroLED
Substrate Silicon wafer Glass/plastic Sapphire/glass
PPI 3,000-5,000+ 400-800 1,000+
Size <1 inch common Smartphone/TV sizes Scalable
Power Use Low Medium Very Low
Lifespan Moderate (OLED aging) Moderate Very Long
Cost High Moderate Very high

Challenges:

  • Limited lifespan (blue OLEDs degrade faster)
  • Higher manufacturing cost due to silicon wafer integration
  • Currently small sizes (not suitable for TVs)

Future of Micro OLED:

Expected to dominate AR/VR and wearable displays due to unmatched pixel density.

Companies like Sony, Samsung, BOE, and eMagin are investing heavily in this tech.
