5.5 Inch Amoled Touch Display Oled Color Display Arduino 1080x1920 MIPI Interface
5.5 Inch Amoled Touch Display Oled Color Display Arduino 1080x1920 MIPI Interface
5.5 Inch Amoled Touch Display Oled Color Display Arduino 1080x1920 MIPI Interface
5.5 Inch Amoled Touch Display Oled Color Display Arduino 1080x1920 MIPI Interface
5.5 Inch Amoled Touch Display Oled Color Display Arduino 1080x1920 MIPI Interface
5.5 Inch Amoled Touch Display Oled Color Display Arduino 1080x1920 MIPI Interface
5.5 Inch Amoled Touch Display Oled Color Display Arduino 1080x1920 MIPI Interface
5.5 Inch Amoled Touch Display Oled Color Display Arduino 1080x1920 MIPI Interface
5.5 Inch Amoled Touch Display Oled Color Display Arduino 1080x1920 MIPI Interface
5.5 Inch Amoled Touch Display Oled Color Display Arduino 1080x1920 MIPI Interface
Specifications
Brand Name :
HuaXin
Model Number :
HX550RAC25B
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$43.8
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
AMOLED module
Size :
5.5 inch
Name :
amoled touch screen
Resolution :
1080x1920
interface :
MIPI
View angle :
all
Brightness :
350C/D
Driving IC :
WD5EA5F01
Description
5.5 Inch AMOLED Display with Touch Panel

High-resolution 1080x1920 AMOLED display module with MIPI interface and WD5EA5F01 driving IC, featuring 350 cd/m² brightness.

Key Specifications
Attribute Value
Display Technology AMOLED module
Size 5.5 inch
Resolution 1080x1920
Interface MIPI
View Angle All directions
Brightness 350 cd/m²
Driving IC WD5EA5F01
Technical Parameters
Parameter Value
Part Number HX550RAC25B
Active Area 68.31 × 121.44 mm
Panel Size 70.71 × 128.44 × 0.5 mm
Operation Temperature -20°C to +70°C
Contrast Ratio 10000:1
Pin Quantity 40 pins
Touch Panel On cell

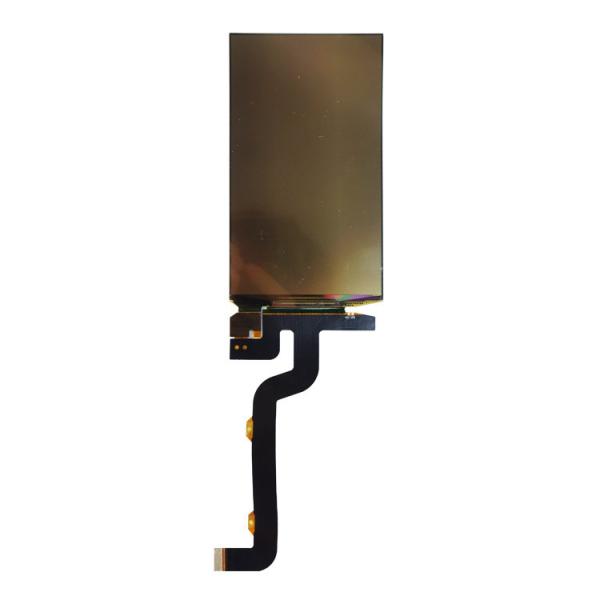

Product Images
5.5 Inch Amoled Touch Display Oled Color Display Arduino 1080x1920 MIPI Interface 5.5 Inch Amoled Touch Display Oled Color Display Arduino 1080x1920 MIPI Interface 5.5 Inch Amoled Touch Display Oled Color Display Arduino 1080x1920 MIPI Interface 5.5 Inch Amoled Touch Display Oled Color Display Arduino 1080x1920 MIPI Interface 5.5 Inch Amoled Touch Display Oled Color Display Arduino 1080x1920 MIPI Interface
Technical Drawings
AMOLED Technology Overview
Key Advantages
  • Perfect blacks and infinite contrast ratio
  • Vibrant colors with wide gamut
  • Ultra-fast response times
  • Flexible and thin design capabilities
  • Energy efficient operation
  • Always-On Display (AOD) capability
  • Superior viewing angles
  • Excellent HDR performance
Considerations

AMOLED displays are more expensive than LCD and TFT alternatives, have a shorter lifetime, and offer lower peak brightness in sustained outdoor use.

Manufacturer Advantages
  • Cost-effective inland factory location
  • Advanced equipment for stable quality
  • Automated processes for efficiency
  • 20+ years of LCD industry experience
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Company Profile

Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi | Founded: 2009
High-tech enterprise specializing in R&D, production and sales of LCD, LCM, TFT, backlight, and OLED products.

Product Range:
LCD: VA, TN, HTN, STN, FSTN, CSTN series
LCM: COB, TBA, COG, TP, LED backlight series

Company Stats:
Registered capital: 20 million
Employees: 500+ (10% R&D, 15% QC)

Production Capacity
Product 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousands/Day
Backlight Production 100 200 300 500 500 Thousands/Day
OLED Production 10 20 30 40 50 Thousands/Day
Applications
  • Smartphones and tablets
  • Wearable devices (smartwatches)
  • AR/VR headsets
  • Television and monitors
  • Automotive displays
  • Medical equipment and smart home devices
Power Efficiency Comparison
AMOLED vs. LCD/LED Displays

Power Consumption: AMOLED consumes power per pixel (dark pixels use less), while LCD requires constant backlight power.

Content Dependency: AMOLED is more efficient for dark content as pixels can turn off completely.

Brightness Control: AMOLED can adjust brightness per pixel, while LCD has fixed backlight brightness.

Display Size: AMOLED is more efficient for smaller displays as power scales with pixel count.
