3.9 Inch AMOLED Display Module 480x854 Resolution MIPI Interface For Smart Devices
Product Specifications
Attribute | Value |
Display Technology | AMOLED Display Module |
Name | Touch Panel AMOLED |
Display size | 3.9inch |
Resolution | 480*854 |
Interface | MIPI |
View angle | All |
Brightness | 300C/D |
Product Overview

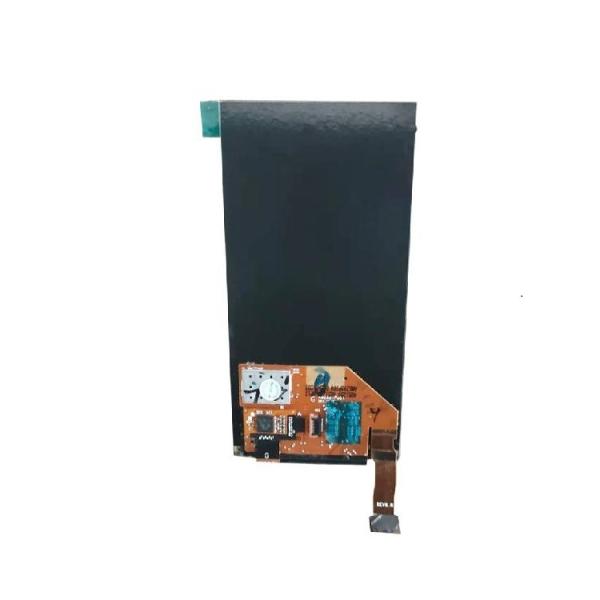

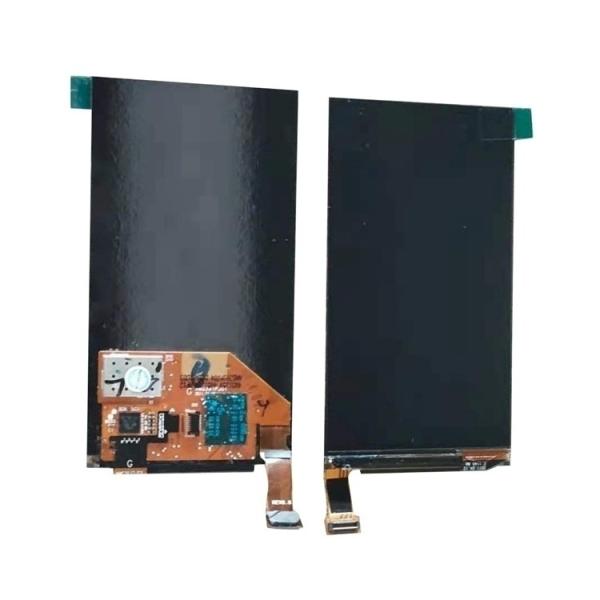

HX390LX018L is a 3.9-inch High-definition Long Screen AMOLED Display with MIPI Interface, featuring high-brightness curved screen, suitable for smart terminals and industrial control applications.
Technical Parameters
Part No. | HX390LX018L |
Display Mode | 3.9 inch AMOLED display |
Outline Size (mm) | 51.26*94.78*1.10mm |
AA Size (mm) | 48.26*87.08 |
Display Dots | 480RGB*854 |
View Angle | ALL |
Interface | MIPI |
Working Temperature | -20~70°C |
Storage Temperature | -30~80°C |
AMOLED Technology Overview
Key Advantages:
- Perfect Blacks & Infinite Contrast
- Vibrant Colors & Wide Gamut
- Ultra-Fast Response Times
- Flexibility & Thin Designs
- Energy Efficiency
- Always-On Displays (AOD)
- Superior Viewing Angles
- HDR Performance
Disadvantages:
- Extremely expensive compared to LCD and TFT
- Shorter lifetime than LCD and TFT
- Lower peak brightness in sustained use
Company Advantages
- Factory base located at inland city which has cost effective
- Most advanced new equipment which can keep quality stable
- Most processes using fully automatic equipment which has efficiency and stable quality
- Professional engineers and production leaders with 20+ years experience in LCD field
- Self design capability for customized products
Huaxin Technology (Enshi) Co., LTD
- Location: Hubei, Enshi
- Founded: 2009
- High technology enterprise specializing in R&D, production and sales of LCD, LCM, TFT, backlight, OLED
- LCD product range: VA, TN, HTN, STN, FSTN, CSTN and other series
- LCM product range: COB, TBA, COG, TP, LED backlight and other series
- Registered capital: 20 million
- Current staff: 500+
- R&D accounts for 10%
- QC accounts for 15%
Certifications:
- ISO14001
- ISO9001/IATF16949
- SGS of LCD module
Production Capacity
Annual Production Capacity | 2021 (Current) | 2022 (Goal) | 2023 (Challenge) | 2024 (Challenge) | 2025 (Challenge) | Remark |
LCD Production Capacity | 4.5 | 9 | 9 | 9 | 9 | Unit: thousands of logarithms/Day |
LCM Production Capacity | 70 | 150 | 300 | 450 | 450 | Unit: Thousand piece/Day |
Backlight Production Capacity | 100 | 200 | 300 | 500 | 500 | Unit: Thousand piece/Day |
OLED Production Capacity | 10 | 20 | 30 | 40 | 50 | Unit: Thousand piece/Day |
Product Applications
- Smartphones and tablets
- Wearables (smartwatches like Apple Watch)
- AR/VR headsets
- Television and Monitors
- Automotive displays
- Medical and smart home devices
Power Efficiency Comparison
1. Power Consumption:
- AMOLED displays consume power on a per-pixel basis
- LCD and LED displays require a constant backlight
2. Content Dependency:
- AMOLED more efficient for dark content (pixels can be turned off)
- LCD/LED consume relatively constant power regardless of content
3. Brightness Control:
- AMOLED can dynamically adjust pixel brightness
- LCD/LED typically have fixed backlight brightness
4. Display Size:
- AMOLED more efficient for smaller displays
- Larger LCD/LED may require more power-hungry backlights
