Specifications
Brand Name :
HuaXin
Model Number :
HX395RAN13A
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$35
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
oled touch display
Size :
3.95 inch
Name :
touch screen oled display
Resolution :
360x640
interface :
MIPI
View angle :
all
Brightness :
300C/D
Description
3.95 Inch AMOLED Dot Display Color OLED Screen 360x640 Resolution 20pins MIPI Interface
Product Specifications
Attribute Value
Display Technology OLED touch display
Size 3.95 inch
Name Touch screen OLED display
Resolution 360x640
Interface MIPI
View angle All
Brightness 300C/D
Technical Parameters
Part NO. HX395RAN13A
Display Technology AMOLED
Diagonal Screen Size 3.95 inch with touch panel
Resolution 360x640
Viewing Angle All
Operation Temperature -20 ~ +70 ℃
Active Area (mm) 49.14x87.38mm
Panel size(mm) 53.76x97.16x2.21mm
Brightness(cd/m2) 300 cd/M2
Interface MIPI
Pin quantity 20 pins
Contrast Ratio 10000:1

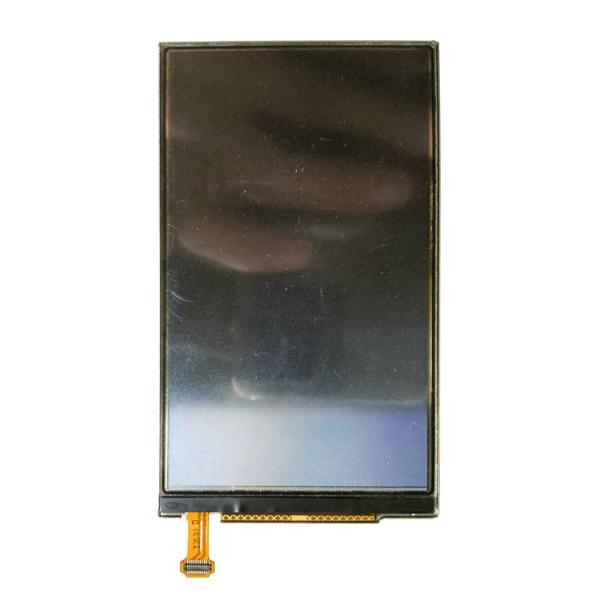

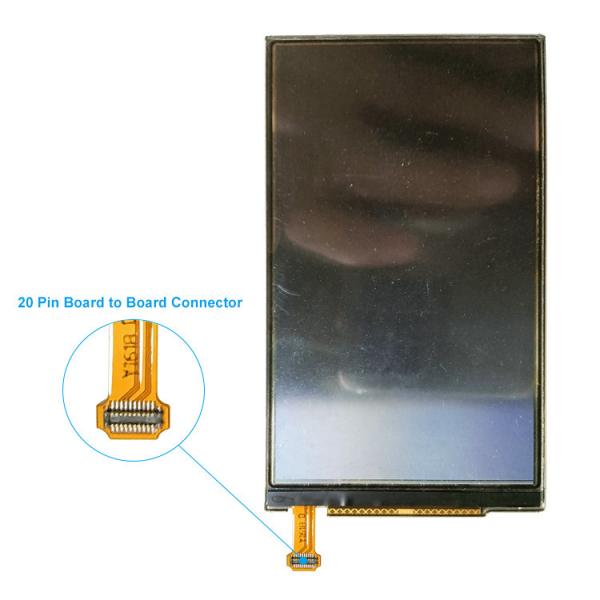

Product Images
3.95 Inch Amoled Dot Display Color Oled Screen 360x640 20pins MIPI Interface
3.95 Inch Amoled Dot Display Color Oled Screen 360x640 20pins MIPI Interface
3.95 Inch Amoled Dot Display Color Oled Screen 360x640 20pins MIPI Interface
3.95 Inch Amoled Dot Display Color Oled Screen 360x640 20pins MIPI Interface
Drawing & Pin Definition
OLED Product Knowledge
Key Advantages of AMOLED Technology
  • Perfect Blacks & Infinite Contrast
  • Vibrant Colors & Wide Gamut
  • Ultra-Fast Response Times
  • Flexibility & Thin Designs
  • Energy Efficiency
  • Always-On Displays (AOD)
  • Superior Viewing Angles
  • HDR Performance
AMOLED Disadvantages

AMOLED is more expensive than LCD and TFT, has a shorter lifetime than LCD and TFT, and has lower peak brightness in sustained use.

Huaxin Advantage
  • Factory base located at inland city which has cost effective
  • Most advanced new equipment which can keep quality stable
  • Most processes using fully automatic equipment which has efficiency and stable quality
  • Professional engineers and production leaders who work in LCD field for more than 20 years
  • Self design for customized product
Our Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module
Company Profile

Huaxin Technology (Enshi) Co., LTD

  • Location: Hubei, Enshi
  • Date of foundation: 2009
  • High technology enterprise mainly working on research and development, producing and sells LCD, LCM, TFT, backlight, OLED
  • LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB, TBA, COG, TP, LED backlight and other series
  • Register capital: twenty million
  • Current staff: 500+
  • R&D accounts for 10%
  • QC accounts for 15%
Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • Smartphones and tablets
  • Wearables (smartwatches like Apple Watch)
  • AR/VR headsets
  • Television and Monitors
  • Automotive display
  • Medical and smart home
Power Efficiency Comparison
1. Power Consumption

AMOLED displays consume power on a per-pixel basis, meaning that pixels that display black or dark content consume very little power, while pixels displaying bright or white content consume more power.

LCD and LED displays, on the other hand, require a constant backlight that consumes power regardless of the displayed content.

2. Content Dependency

AMOLED displays are more power-efficient for content with a lot of dark or black areas, as the individual pixels can be turned off to save power.

LCD and LED displays consume a relatively constant amount of power regardless of the displayed content, as the backlight remains active.

3. Brightness Control

AMOLED displays can dynamically adjust the brightness of individual pixels, allowing for better power efficiency in low-brightness scenarios.

LCD and LED displays typically have a fixed backlight brightness, which can result in higher power consumption even when the display content does not require maximum brightness.

4. Display Size

AMOLED displays tend to be more power-efficient for smaller display sizes, as the power consumption scales with the number of pixels.

Larger LCD and LED displays may require more power-hungry backlights, potentially reducing their power efficiency compared to AMOLED displays of the same size.
