1.78 Inch Amoled Touch Display Oled Rgb Display 368x448 Resolution Driving IC RM69090
1.78 Inch Amoled Touch Display Oled Rgb Display 368x448 Resolution Driving IC RM69090
1.78 Inch Amoled Touch Display Oled Rgb Display 368x448 Resolution Driving IC RM69090
1.78 Inch Amoled Touch Display Oled Rgb Display 368x448 Resolution Driving IC RM69090
1.78 Inch Amoled Touch Display Oled Rgb Display 368x448 Resolution Driving IC RM69090
1.78 Inch Amoled Touch Display Oled Rgb Display 368x448 Resolution Driving IC RM69090
1.78 Inch Amoled Touch Display Oled Rgb Display 368x448 Resolution Driving IC RM69090
1.78 Inch Amoled Touch Display Oled Rgb Display 368x448 Resolution Driving IC RM69090
1.78 Inch Amoled Touch Display Oled Rgb Display 368x448 Resolution Driving IC RM69090
1.78 Inch Amoled Touch Display Oled Rgb Display 368x448 Resolution Driving IC RM69090
Specifications
Brand Name :
HuaXin
Model Number :
HX178ERC12B
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$6.8
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
AMOLED module
Size :
1.78 inch
Name :
AMOLED display
Resolution :
368x448
interface :
MIPI,SPI
View angle :
all
brightness :
350 cd/M2
touch panel :
with CTP
driving IC :
RM69090
Description
1.78 Inch AMOLED Display with Touch Panel

High-resolution 368×448 AMOLED display module featuring MIPI/SPI interface, 350cd/m² brightness, and RM69090 driving IC.

Key Specifications
Display Technology AMOLED module
Size 1.78 inch
Resolution 368×448
Interface MIPI, SPI
View Angle All directions
Brightness 350 cd/m²
Touch Panel With CTP
Driving IC RM69090
Technical Parameters
Part Number ESHX178ERC12B
Diagonal Screen Size 1.78 inch OLED
Viewing Angle All directions
Operation Temperature -20℃ to +70℃
Active Area 30.6×37.24 mm
Panel Size 33.6×41.7×1.66 mm
Contrast Ratio 10000:1
Pin Quantity 34 pins

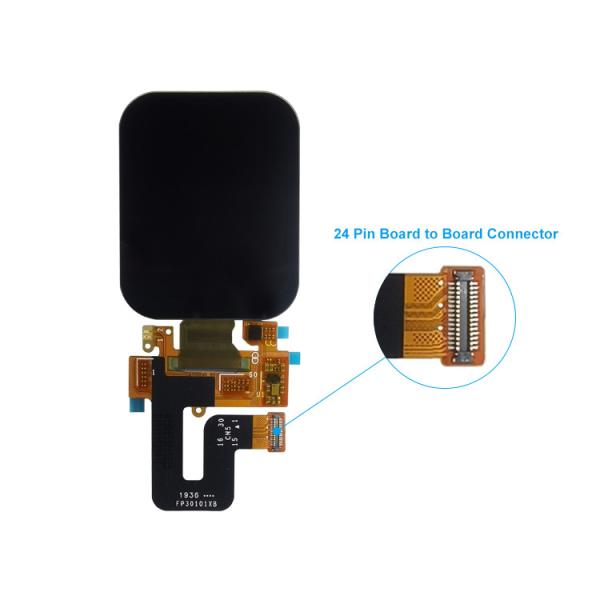

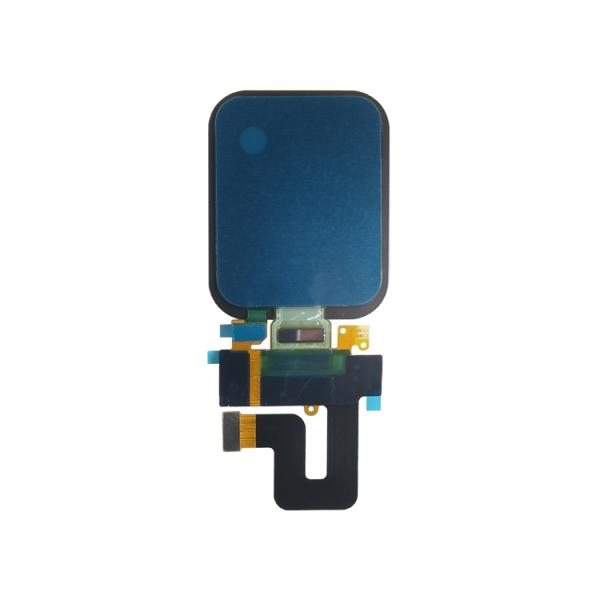

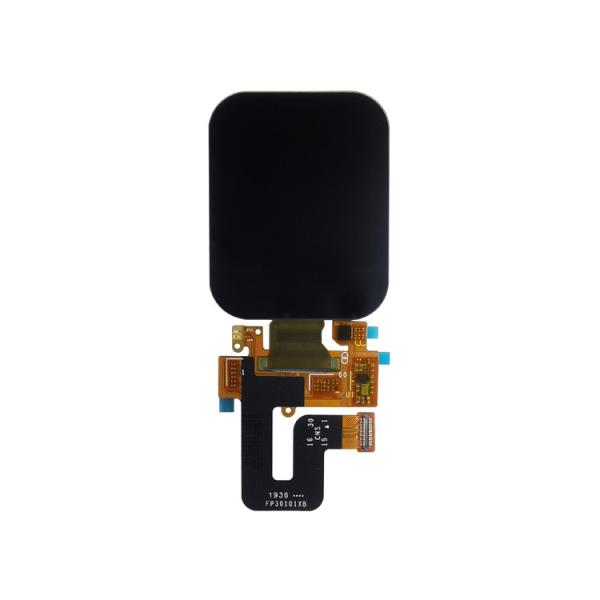

Product Images
1.78 Inch Amoled Touch Display Oled Rgb Display 368x448 Resolution Driving IC RM69090 1.78 Inch Amoled Touch Display Oled Rgb Display 368x448 Resolution Driving IC RM69090 1.78 Inch Amoled Touch Display Oled Rgb Display 368x448 Resolution Driving IC RM69090 1.78 Inch Amoled Touch Display Oled Rgb Display 368x448 Resolution Driving IC RM69090 1.78 Inch Amoled Touch Display Oled Rgb Display 368x448 Resolution Driving IC RM69090
Drawing & Pin Definition
AMOLED Technology Overview
Key Advantages
  • Perfect blacks & infinite contrast ratio
  • Vibrant colors with wide gamut
  • Ultra-fast response times
  • Flexible and thin design capabilities
  • Energy efficient operation
  • Always-On Display (AOD) functionality
  • Superior viewing angles
  • Excellent HDR performance
Considerations

AMOLED displays are more expensive than LCD/TFT alternatives, have shorter operational lifetimes, and may exhibit lower peak brightness in sustained outdoor use.

Manufacturer Advantages
  • Cost-effective inland production base
  • Advanced equipment for stable quality
  • Highly automated processes for efficiency
  • 20+ years of LCD industry experience
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Company Profile

Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi | Founded: 2009
High-tech enterprise specializing in R&D, production and sales of LCD, LCM, TFT, backlight, and OLED products.

Product Range:
LCD: VA, TN, HTN, STN, FSTN, CSTN series
LCM: COB, TBA, COG, TP, LED backlight series

Company Stats:
Registered capital: 20 million
Employees: 500+ (10% R&D, 15% QC)

Production Capacity
Product Type 2021 2022 2023 2024 2025
LCD (k logs/day) 4.5 9 9 9 9
LCM (k pieces/day) 70 150 300 450 450
Backlight (k pieces/day) 100 200 300 500 500
OLED (k pieces/day) 10 20 30 40 50
Typical Applications
  • Smartphones and tablets
  • Wearable devices (smartwatches)
  • AR/VR headsets
  • Television and monitors
  • Automotive displays
  • Medical equipment and smart home devices
Power Efficiency Comparison
AMOLED vs LCD/LED Technologies
  • Power Consumption: AMOLED consumes power per pixel (dark pixels use less), while LCD requires constant backlight power
  • Content Dependency: AMOLED excels with dark content; LCD power usage remains constant
  • Brightness Control: AMOLED adjusts pixel brightness individually; LCD uses fixed backlight
  • Display Size: AMOLED more efficient for smaller displays; LCD backlights become less efficient at larger sizes
