Specifications
Brand Name :
HuaXin
Model Number :
HX315RSC10B
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$48
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
amoled touch screen
Size :
3.15 inch
Name :
amoled module
Resolution :
360X460
interface :
30 pins MIPI
View angle :
all
brightness :
100 cd/M2
driving IC :
RM67295
touch panel :
CTP
Description
3.15 Inch AMOLED Display with Touch Panel
High-resolution 360×460 AMOLED display module with 30-pin MIPI interface and 100nits brightness, featuring touch panel capability.
Key Specifications
Attribute Value
Display Technology AMOLED touch screen
Size 3.15 inch
Resolution 360×460
Interface 30 pins MIPI
View Angle All directions
Brightness 100 cd/m²
Driving IC RM67295
Touch Panel Capacitive Touch Panel (CTP)
Technical Parameters
Parameter Value
Part Number HX315RSC10B
Active Area 42.5×77.6×2.05 mm
Panel Size 39.2×71.6 mm
Operation Temperature -20℃ to +70℃
Contrast Ratio 10000:1

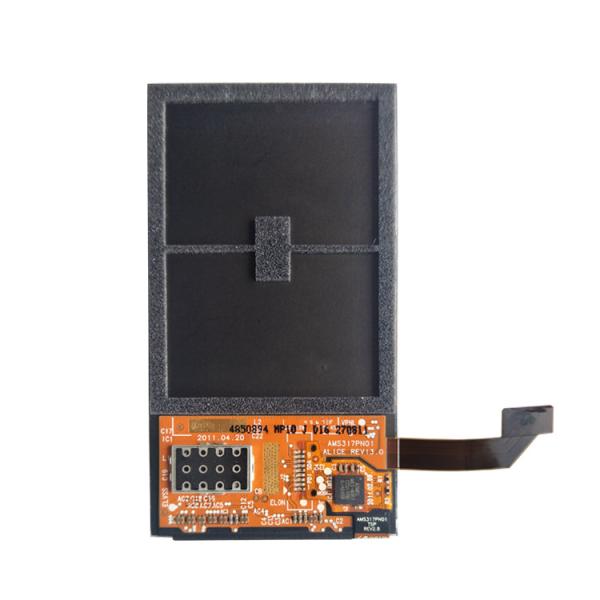

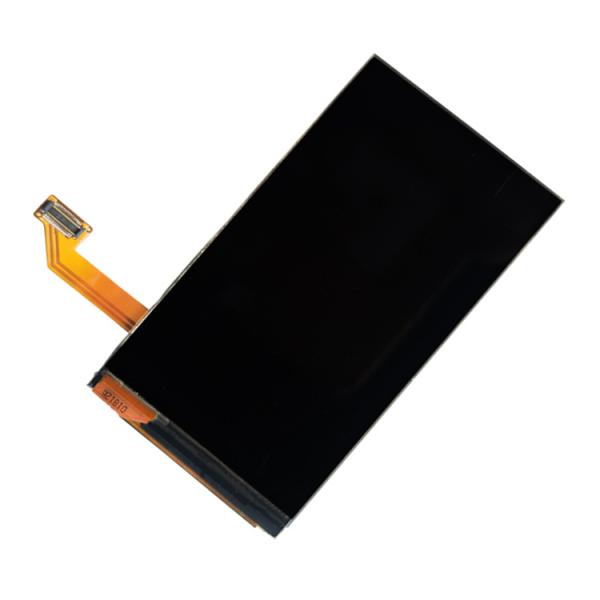

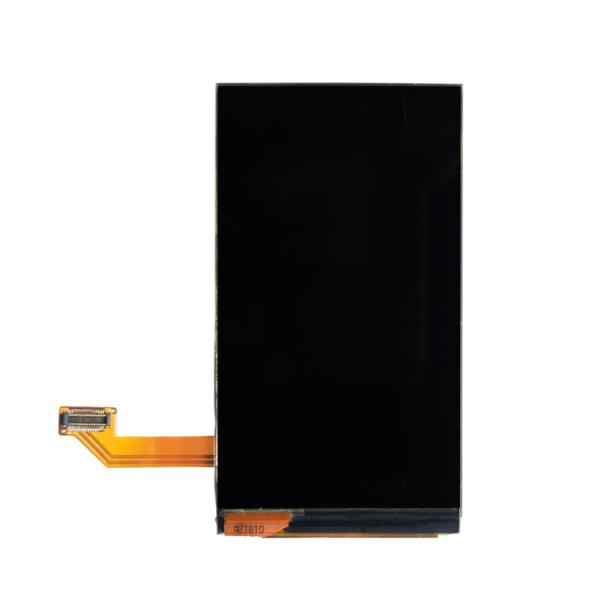

Product Images
3.15 Inch Amoled Display Module With Touch Panel 360X460 Dots 30 Pins MIPI Interface 100nits 3.15 Inch Amoled Display Module With Touch Panel 360X460 Dots 30 Pins MIPI Interface 100nits 3.15 Inch Amoled Display Module With Touch Panel 360X460 Dots 30 Pins MIPI Interface 100nits 3.15 Inch Amoled Display Module With Touch Panel 360X460 Dots 30 Pins MIPI Interface 100nits 3.15 Inch Amoled Display Module With Touch Panel 360X460 Dots 30 Pins MIPI Interface 100nits
Technical Drawings & Pin Definition
AMOLED Technology Advantages
  • Perfect blacks and infinite contrast ratio
  • Vibrant colors with wide gamut
  • Ultra-fast response times
  • Flexible and thin design capabilities
  • Energy efficient operation
  • Always-On Display (AOD) capability
  • Superior viewing angles
  • Excellent HDR performance
Note: AMOLED displays have higher production costs compared to LCD/TFT and may have shorter lifespan in sustained high brightness applications.
Manufacturer Advantages
  • Cost-effective production facility located in inland China
  • Advanced equipment ensuring stable quality
  • Highly automated processes for efficiency and consistency
  • Engineering team with 20+ years LCD industry experience
  • Custom design capabilities for specialized applications
Certifications
  • ISO14001 Environmental Management System
  • ISO9001/IATF16949 Quality Management System
  • SGS certified LCD modules
Company Profile
Huaxin Technology (Enshi) Co., Ltd is a high-tech enterprise established in 2009, specializing in R&D, production and sales of display technologies including LCD, LCM, TFT, backlight, and OLED modules.
Production Capacity
Product 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousands/Day
Backlight Production 100 200 300 500 500 Thousands/Day
OLED Production 10 20 30 40 50 Thousands/Day
Typical Applications
  • Smartphones and tablets
  • Wearable devices (smartwatches, fitness trackers)
  • AR/VR headsets
  • Television and monitor displays
  • Automotive dashboard and infotainment systems
  • Medical equipment and smart home devices
Power Efficiency Comparison
AMOLED displays offer superior power efficiency compared to LCD/LED technologies, particularly for content with dark backgrounds. Key advantages include:
  • Per-pixel power consumption (black pixels consume minimal power)
  • Dynamic brightness adjustment for individual pixels
  • More efficient for smaller display sizes
  • No constant backlight requirement like LCD displays
