Specifications
Brand Name :
HuaXin
Model Number :
HX9921301000
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$13.5
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
OLED display
name :
PMOLED display
size :
3.12 inch
Color :
blue/yellow/white/green
Brightness :
100c/d
interface :
4-wire SPI
Driving IC :
SSD1322
Description
3.12 inch blue/yellow/white/green PMOLED display 256*64 dots 4-wire SPI interface driving IC SSD1322
Key Specifications
Part NO. HX9921301000
Display Technology PMOLED
Diagonal Screen Size 3.12 inch
Resolution 256*64
Viewing Angle free
Active Area (mm) 76.78x19.18mm
Module Size(mm) 88x47.8x2mm
Pixel pitch 0.27x0.27
Pixel size 0.254x0.254
Operation Temp -30~85
display color blue/yellow/white/green
Interface 4-wire SPI
Pin q'ty 30PINS
driving IC SSD1322
Connecting method connector
Product Images

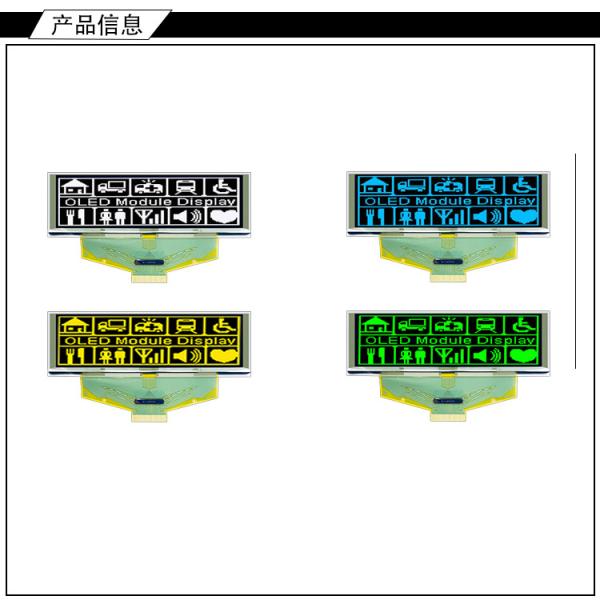

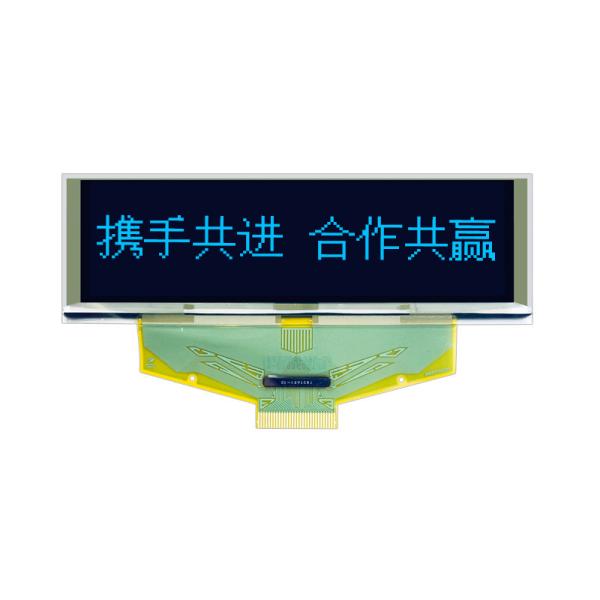

3.12 inch blue/yellow/white/green PMOLED display 256*64 dots 4-wire SPI interface driving IC SSD1322

3.12 inch blue/yellow/white/green PMOLED display 256*64 dots 4-wire SPI interface driving IC SSD1322

3.12 inch blue/yellow/white/green PMOLED display 256*64 dots 4-wire SPI interface driving IC SSD1322

3.12 inch blue/yellow/white/green PMOLED display 256*64 dots 4-wire SPI interface driving IC SSD1322

3.12 inch blue/yellow/white/green PMOLED display 256*64 dots 4-wire SPI interface driving IC SSD1322

3.12 inch blue/yellow/white/green PMOLED display 256*64 dots 4-wire SPI interface driving IC SSD1322

Technical Drawings


OLED Technology Overview
OLED Advantages
  • Lighter and thinner than LCDs
  • High contrast and color saturation
  • Lower power consumption
OLED Disadvantages
  • Higher cost compared to LCD and TFT
  • Shorter lifetime than LCD and TFT
PMOLED Characteristics
  • Passive matrix addressing scheme with independent pixel control
  • High contrast and vibrant colors without backlight
  • Power efficient - only active pixels consume energy
  • Thin and flexible design suitable for wearable devices
  • Ideal for small-sized screens with moderate resolution requirements
Product Applications
  • Wearable devices
  • Portable audio players
  • Thermostats and home automation
  • Car dashboards and instrument clusters
  • Medical devices
  • Consumer electronics
  • Industrial and professional equipment
Manufacturer Information

Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi | Founded: 2009

High technology enterprise specializing in research, development, and production of LCD, LCM, TFT, backlight, and OLED displays.

Company Advantages
  • Cost-effective inland manufacturing base
  • Advanced equipment for stable quality
  • Automated processes for efficiency
  • 20+ years experience in LCD field
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Production Capacity (thousands/day)
Product 2021 2022 2023 2024 2025
LCD 4.5 9 9 9 9
LCM 70 150 300 450 450
Backlight 100 200 300 500 500
OLED 10 20 30 40 50
