12.6 Inch AMOLED display module 1600*2560 Dots MIPI Interface 400c/d brightness driving IC RM69380/RM692E6
12.6 Inch AMOLED display module 1600*2560 Dots MIPI Interface 400c/d brightness driving IC RM69380/RM692E6
12.6 Inch AMOLED display module 1600*2560 Dots MIPI Interface 400c/d brightness driving IC RM69380/RM692E6
12.6 Inch AMOLED display module 1600*2560 Dots MIPI Interface 400c/d brightness driving IC RM69380/RM692E6
12.6 Inch AMOLED display module 1600*2560 Dots MIPI Interface 400c/d brightness driving IC RM69380/RM692E6
12.6 Inch AMOLED display module 1600*2560 Dots MIPI Interface 400c/d brightness driving IC RM69380/RM692E6
12.6 Inch AMOLED display module 1600*2560 Dots MIPI Interface 400c/d brightness driving IC RM69380/RM692E6
12.6 Inch AMOLED display module 1600*2560 Dots MIPI Interface 400c/d brightness driving IC RM69380/RM692E6
Specifications
Brand Name :
HuaXin
Model Number :
HX60QBC74.N
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000
Price :
$118~114
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
amoled display
Size :
12.6 inch
Name :
amoled screen
Resolution :
1600*2560
interface :
MIPI
Brightness :
400 cd/M2
Driving IC :
RM69380/RM692E6
Description
12.6 Inch AMOLED display module 1600*2560 Dots MIPI Interface 400c/d brightness driving IC RM69380/RM692E6
Product Specifications
Part No: HX60QBC74.N
display Mode 12.6 inch AMOLED display
outline size(mm) 295.11*193.33*2.43mm
AA size(mm) 271.4112*169.63mm
Display dots 1600*2560
view Angle all
Brightness 400c/d
interface MIPI
Driving IC RM69380/RM692E6

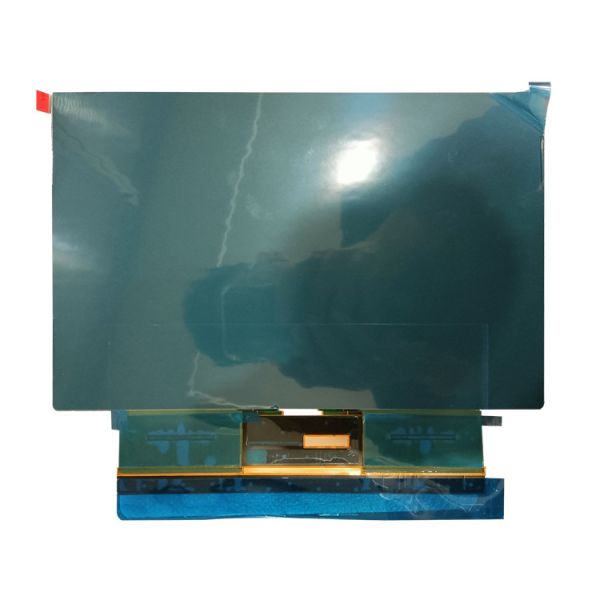

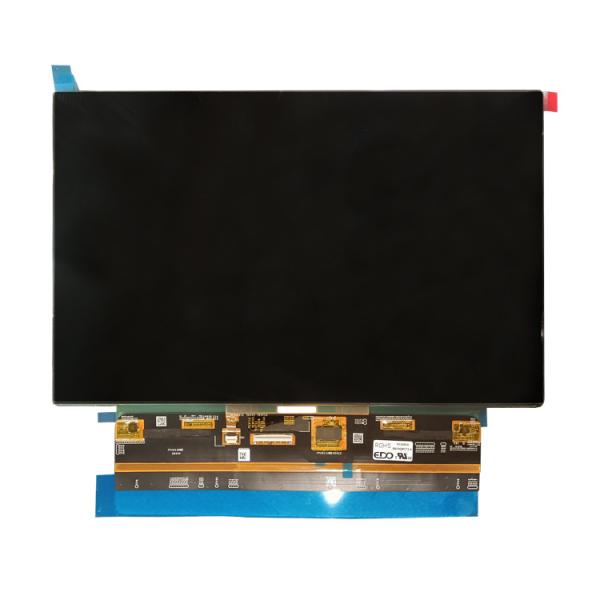

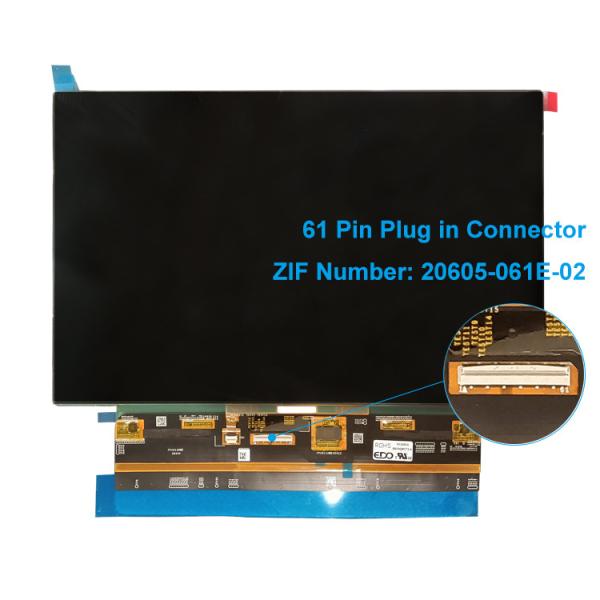

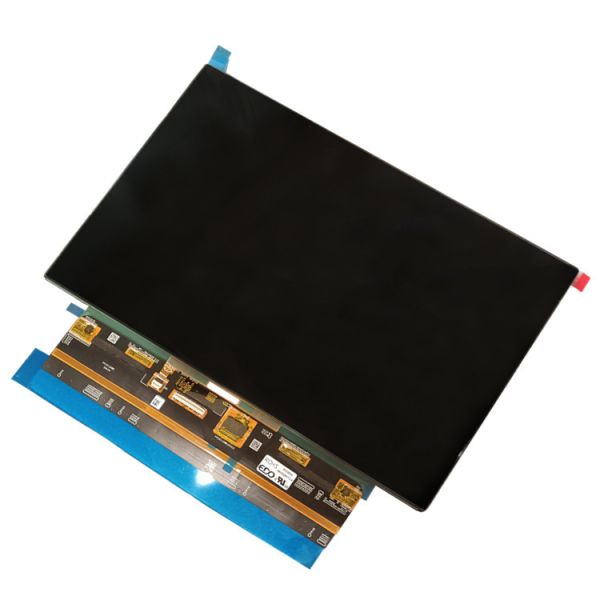

Product Images

12.6 Inch AMOLED display module 1600*2560 Dots MIPI Interface 400c/d brightness driving IC RM69380/RM692E6

12.6 Inch AMOLED display module 1600*2560 Dots MIPI Interface 400c/d brightness driving IC RM69380/RM692E6

12.6 Inch AMOLED display module 1600*2560 Dots MIPI Interface 400c/d brightness driving IC RM69380/RM692E6

12.6 Inch AMOLED display module 1600*2560 Dots MIPI Interface 400c/d brightness driving IC RM69380/RM692E6

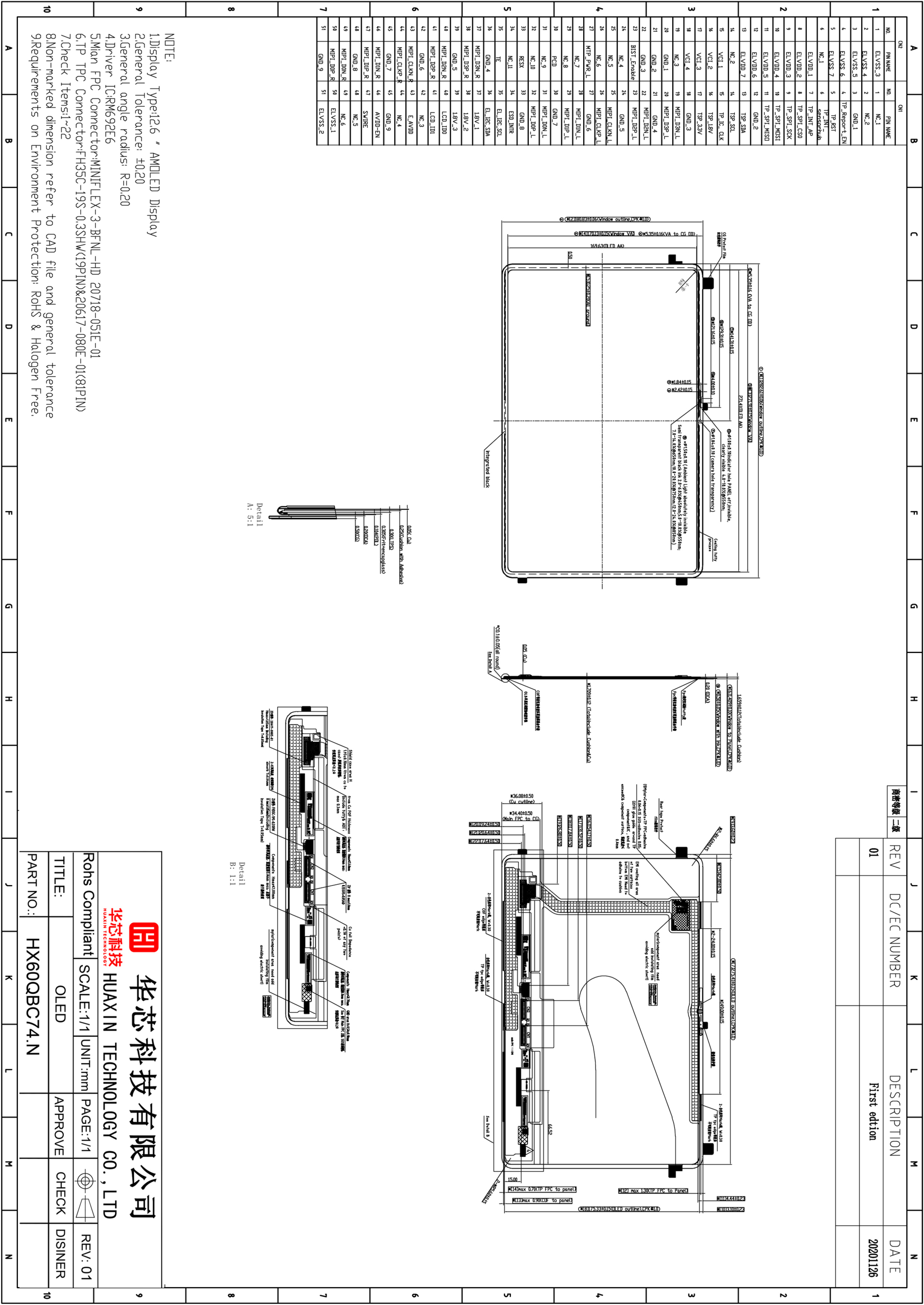

Technical Drawing
12.6 Inch AMOLED display module 1600*2560 Dots MIPI Interface 400c/d brightness driving IC RM69380/RM692E6

AMOLED Technology Overview
Key Advantages:
  • Perfect Blacks & Infinite Contrast
  • Vibrant Colors & Wide Gamut
  • Ultra-Fast Response Times
  • Flexibility & Thin Designs
  • Energy Efficiency
  • Always-On Displays (AOD)
  • Superior Viewing Angles
  • HDR Performance
Considerations:

AMOLED displays are more expensive than LCD/TFT with shorter lifetime and lower peak brightness in sustained use.

Manufacturer Advantages
  • Cost-effective inland factory location
  • Advanced equipment for stable quality
  • Automated processes for efficiency
  • 20+ years of LCD industry experience
  • Custom design capabilities
Certifications:

ISO14001, ISO9001/IATF16949, SGS

Production Capacity
Product 2021 2022 2023 2024 2025
LCD (k logs/day) 4.5 9 9 9 9
LCM (k pieces/day) 70 150 300 450 450
Backlight (k pieces/day) 100 200 300 500 500
OLED (k pieces/day) 10 20 30 40 50
Applications
  • Smartphones and tablets
  • Wearables (smartwatches)
  • AR/VR headsets
  • Television and monitors
  • Automotive displays
  • Medical and smart home devices
Power Efficiency Comparison

AMOLED displays offer superior power efficiency in several scenarios:

  • Per-pixel power consumption (dark content uses less power)
  • Dynamic brightness adjustment capability
  • More efficient for smaller display sizes
  • No constant backlight required (unlike LCD/LED)
