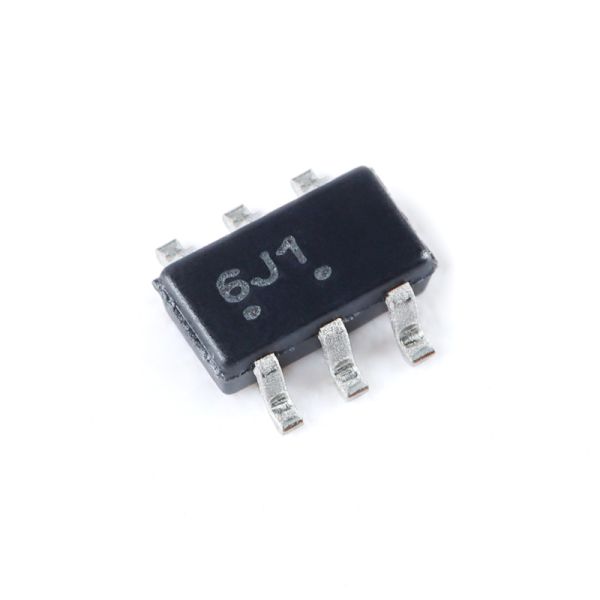

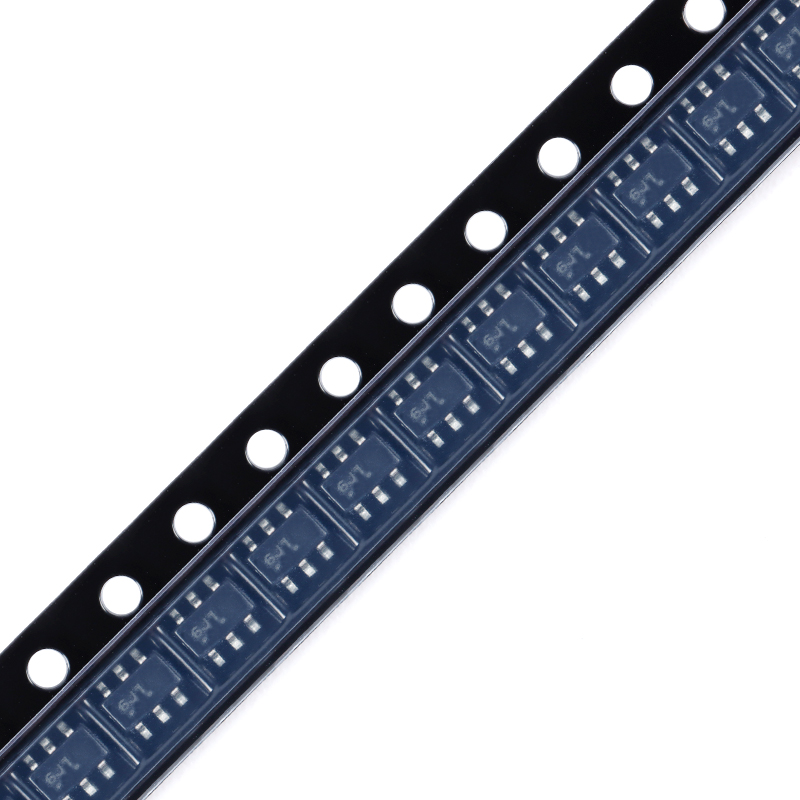

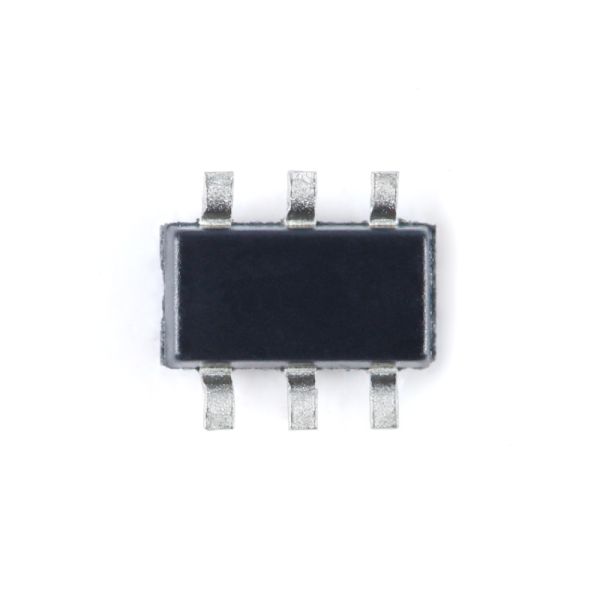

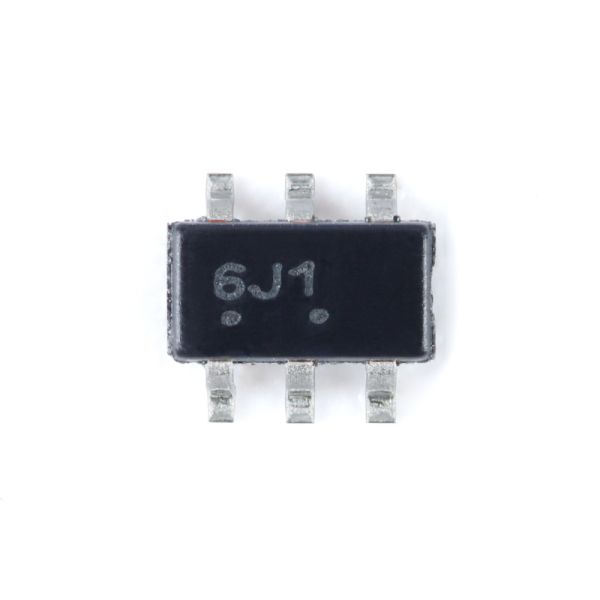

SMS05CT1G ESD Protection Diode Array 5-Line Designed For Applicationrequiring Transient Voltage Protection Capability
SMS05CT1G ESD Protection Diode Array 5-Line Designed For Applicationrequiring Transient Voltage Protection Capability
SMS05CT1G ESD Protection Diode Array 5-Line Designed For Applicationrequiring Transient Voltage Protection Capability
SMS05CT1G ESD Protection Diode Array 5-Line Designed For Applicationrequiring Transient Voltage Protection Capability
SMS05CT1G ESD Protection Diode Array 5-Line Designed For Applicationrequiring Transient Voltage Protection Capability
SMS05CT1G ESD Protection Diode Array 5-Line Designed For Applicationrequiring Transient Voltage Protection Capability
SMS05CT1G ESD Protection Diode Array 5-Line Designed For Applicationrequiring Transient Voltage Protection Capability
SMS05CT1G ESD Protection Diode Array 5-Line Designed For Applicationrequiring Transient Voltage Protection Capability
Specifications
Brand Name :
onsemi
Model Number :
SMS05CT1G
Certification :
ROHS
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
10000
Delivery Time :
5-8DAY
Packaging Details :
T/R
Brand :
onsemi
Reverse Cut-offVoltage (Vrwm) :
5V
Clamp Voltage :
14.5V
Pulse PeakCurrent (lpp) :
24A@8/20us
Peak PulsePower (Ppp) :
350W@8/20us
Breakdown Voltage :
7.2V
Description
SMS05CT1G ESD Protection Diode Array 5-Line Designed For Applicationrequiring Transient Voltage Protection Capability
SMS05C, SMS12C, SMS15C,SMS24C
Features
  • Protects up to 5 Lines in a Single TSOP−6 Package
  • Peak Power Dissipation − 350 W (8 20 s Waveform)
  • ESD Rating of Class 3B (Exceeding 8.0 kV) per Human Body Model and Class C (Exceeding 400 V) per Machine Model
  • Compliance with IEC 61000−4−2 (ESD) 15 kV (Air), 8.0 kV(Contact)
  • Flammability Rating of UL 94 V−0
  • These are Pb−Free Devices
Applications
  • Hand−Held Portable Applications
  • Networking and Telecom
  • Automotive Electronics
  • Serial and Parallel Ports
  • Notebooks, Desktops, Servers
Symbol Rating
Symbol Rating Value Unit
PPK 1 Peak Power Dissipation 8 20 s Double Exponential Waveform (Note 1) 350 W
TJ Operating Junction Temperature Range −40 to 150 °C
TSTG Storage Temperature Range −55 to 150 °C
TL Lead Solder Temperature (10 s) 260 °C
ESD Human Body Model ( HBM) >8000 V
Machine Model (MM) >400 V
IEC 61000−4−2 Air (ESD) >15000 V
IEC 61000−4−2 Contact (ESD) >8000 V
SMS05CT1G ESD Protection Diode Array 5-Line Designed For Applicationrequiring Transient Voltage Protection CapabilitySMS05CT1G ESD Protection Diode Array 5-Line Designed For Applicationrequiring Transient Voltage Protection CapabilitySMS05CT1G ESD Protection Diode Array 5-Line Designed For Applicationrequiring Transient Voltage Protection CapabilitySMS05CT1G ESD Protection Diode Array 5-Line Designed For Applicationrequiring Transient Voltage Protection Capability
Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions
How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
