TMP117AIDRVR High-Accuracy Low-Power Digital Temperature SensorWith SMBus™- And I2C-Compatible Interface
TMP117AIDRVR High-Accuracy Low-Power Digital Temperature SensorWith SMBus™- And I2C-Compatible Interface
TMP117AIDRVR High-Accuracy Low-Power Digital Temperature SensorWith SMBus™- And I2C-Compatible Interface
TMP117AIDRVR High-Accuracy Low-Power Digital Temperature SensorWith SMBus™- And I2C-Compatible Interface
TMP117AIDRVR High-Accuracy Low-Power Digital Temperature SensorWith SMBus™- And I2C-Compatible Interface
TMP117AIDRVR High-Accuracy Low-Power Digital Temperature SensorWith SMBus™- And I2C-Compatible Interface
Specifications
Brand Name :
TI
Model Number :
TMP117AIDRVR
Certification :
ROHS
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
10000
Delivery Time :
5-8day
Packaging Details :

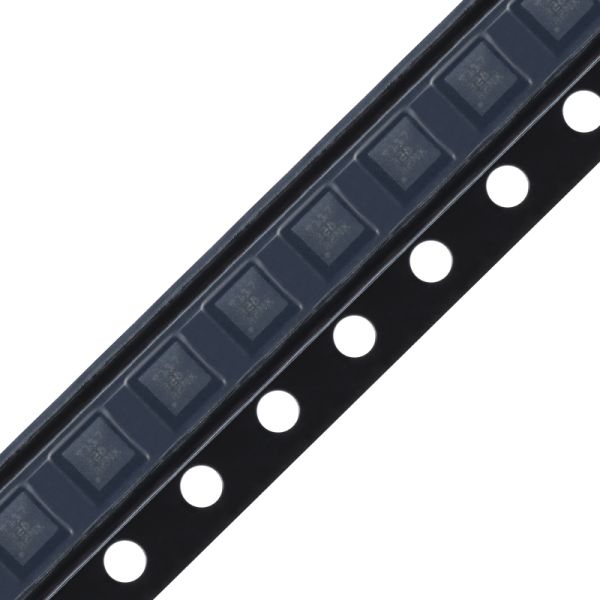

T/R
Local sensor accuracy (max) :
0.1, 0.2
Rating :
Catalog
Operating temperature range (°C) :
-50 to 150
Supply voltage (min) (V) :
1.8
Supply voltage (max) (V) :
5.5
Supply current (max) (µA) :
5
Interface type :
I2C, SMBus
Description
TMP117AIDRVR High-Accuracy Low-Power Digital Temperature Sensor
High-precision digital temperature sensor with SMBus™ and I2C-compatible interface for demanding industrial and medical applications.
Key Features
  • High-Accuracy Temperature Sensing:
    • ±0.1°C maximum from –20°C to 50°C
    • ±0.15°C maximum from –40°C to 70°C
    • ±0.2°C maximum from –40°C to 100°C
    • ±0.25°C maximum from –55°C to 125°C
    • ±0.3°C maximum from –55°C to 150°C
  • Wide operating temperature range: –55°C to 150°C
  • Ultra-low power consumption: 3.5-μA at 1-Hz conversion cycle, 150-nA shutdown current
  • Broad supply voltage range: 1.7V to 5.5V (–55°C to 70°C), 1.8V to 5.5V (–55°C to 150°C)
  • 16-bit resolution: 0.0078°C (1 LSB)
  • Programmable temperature alert limits and selectable averaging
  • Digital offset for system correction
  • 48-bit general-purpose EEPROM
  • NIST traceability
  • SMBus™ and I2C interface compatibility
  • Medical grade: meets ASTM E1112 and ISO80601-2-56 standards
  • Direct replacement for RTDs: PT100, PT500, PT1000
Applications
  • Electronic thermometers
  • Wireless environmental sensors
  • Thermostats
  • Automotive test equipment
  • Wearable fitness and activity monitors
  • Cold chain asset tracking
  • Gas meters and heat meters
  • Temperature transmitters
Part Number Details
Part Number Package Body Size (Nominal)

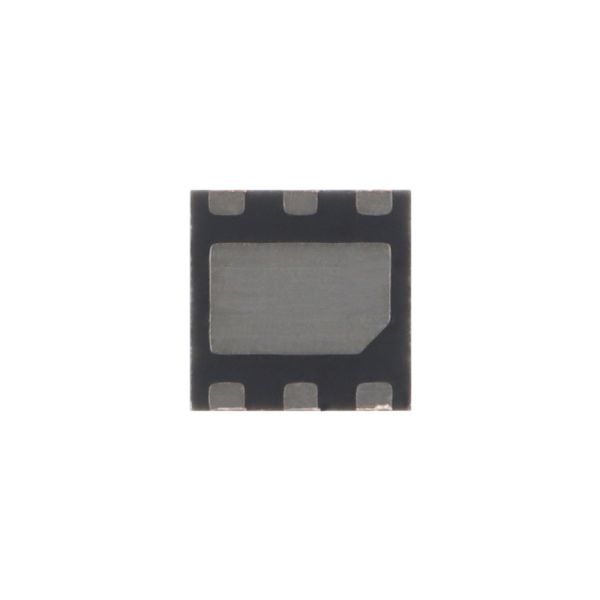

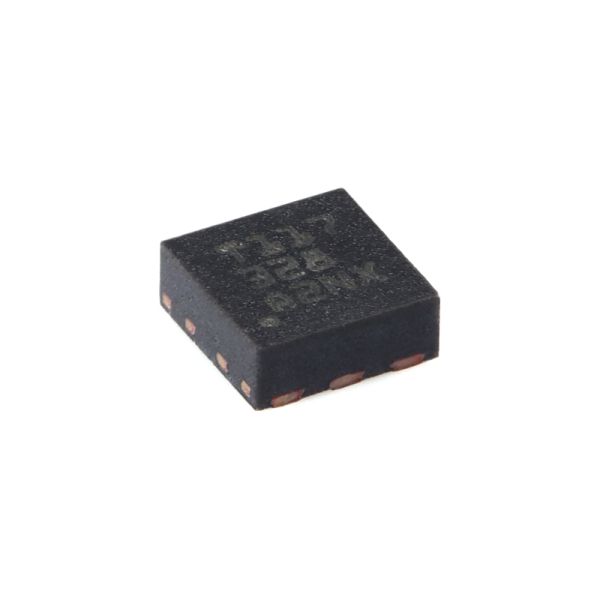

TMP117 WSON (6) 2.00 mm × 2.00 mm
TMP117 DSBGA (6) 1.53 mm × 1.00 mm
TMP117AIDRVR High-Accuracy Low-Power Digital Temperature SensorWith SMBus™- And I2C-Compatible Interface TMP117AIDRVR High-Accuracy Low-Power Digital Temperature SensorWith SMBus™- And I2C-Compatible Interface TMP117AIDRVR High-Accuracy Low-Power Digital Temperature SensorWith SMBus™- And I2C-Compatible Interface
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
