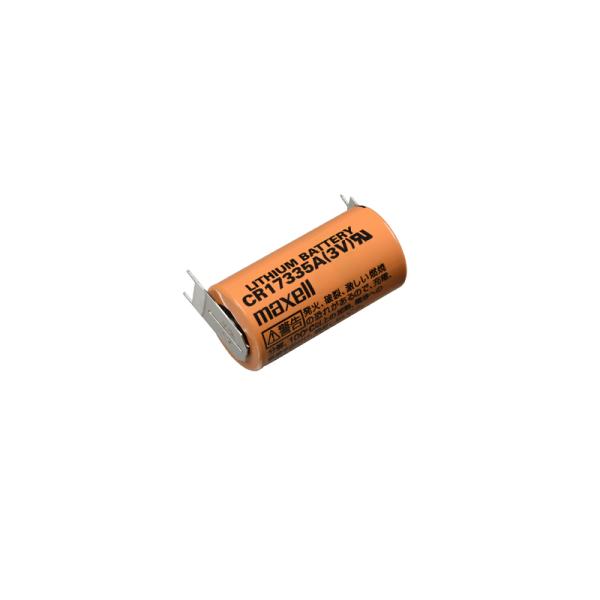

1650mAh Cylindrical Industrial Lithium Battery Manganese Dioxide CR Disposable CR17335A
1650mAh Cylindrical Industrial Lithium Battery Manganese Dioxide CR Disposable CR17335A
1650mAh Cylindrical Industrial Lithium Battery Manganese Dioxide CR Disposable CR17335A
1650mAh Cylindrical Industrial Lithium Battery Manganese Dioxide CR Disposable CR17335A
1650mAh Cylindrical Industrial Lithium Battery Manganese Dioxide CR Disposable CR17335A
1650mAh Cylindrical Industrial Lithium Battery Manganese Dioxide CR Disposable CR17335A
1650mAh Cylindrical Industrial Lithium Battery Manganese Dioxide CR Disposable CR17335A
1650mAh Cylindrical Industrial Lithium Battery Manganese Dioxide CR Disposable CR17335A
Specifications
Brand Name :
maxell
Model Number :
CR17335A
Certification :
ROHS
Place of Origin :
JP
MOQ :
1
Price :
7
Payment Terms :
T/T,Western Union
Supply Ability :
10000
Delivery Time :
5-8day
Packaging Details :
T/R
Model :
CR17335A
Nominal voltage (V) :
3
Nominal capacity (mAh)*1 :
1650
Nominal discharge current (mA) :
5
Operating temperature range (deg. C)*2 :
-40 to +85
Diameter (mm) :
17
Height (mm) :
33.5
Weight (g)*3 :
17
Description

Cylindrical Lithium Manganese Dioxide Batteries (CR) disposable industrial lithium battery CR17335A


Support multi-function loT devices with high capacity technology
and long-term reliability

Maxell's cylindrical type lithium manganese dioxide battery realizes stable discharge characteristics with its original sealing structure, unique configuration to enhance electrical conductivity, and negative electrode material. This battery’s long-term reliability makes it ideal for use as a power source in industrial applications such as IoT devices and smart meters (e.g. gas, water). Battery packs can also be produced to meet special customer requirements.

Battery packs can also be produced to meet special customer requirements.

Features

High energy density*1

High energy density has been achieved by optimizing the filling rate of the material by means of a unique electrode structure.

*1 Volumetric energy density of 15% or more compared to typical cylindrical CR batteries (depending on battery size). Surveyed by Maxell as of March 2024.

Long-term reliability lasting more than 10 years*2

The employment of a heat-resistant gasket and a laser-seal structure prevents water intrusion and electrolyte evaporation, ensuring long-term reliability that lasts more than 10 years*2. The self-discharge rate is about 0.5% per year.

*2 Designed lifetime at 20 deg. C when not yet used. Actual lifetime will vary depending on conditions such as discharge current and temperature.

Stable discharge characteristics

The original negative electrode material maintains low internal resistance even at high depths of discharge and ensures stable discharge.

Superior low-temperature characteristics

High safety due to internal short-circuit prevention structure

UL Recognized Components

The cylindrical type lithium manganese dioxide battery is a UL recognized component. (User Replaceable)

Recognized models:CR17450A, CR17335A, CR17450AH, CR17500AU

Certification number: MH12568

Applications

  • Smart meters (e.g. gas, water)
  • IoT devices
  • Communication devices (e.g. LPWA, cellular networks)
  • In-vehicle devices
  • Security devices
  • Memory backup power

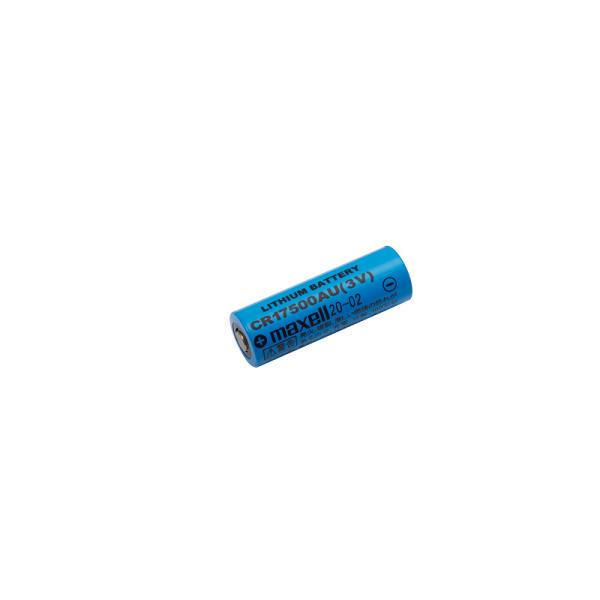

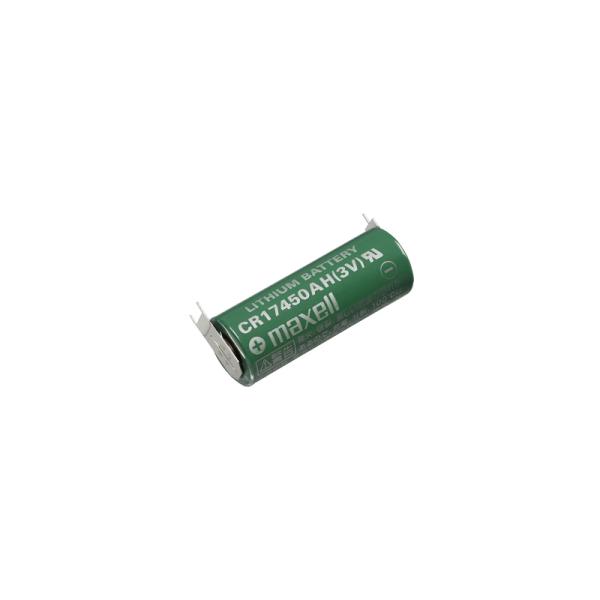

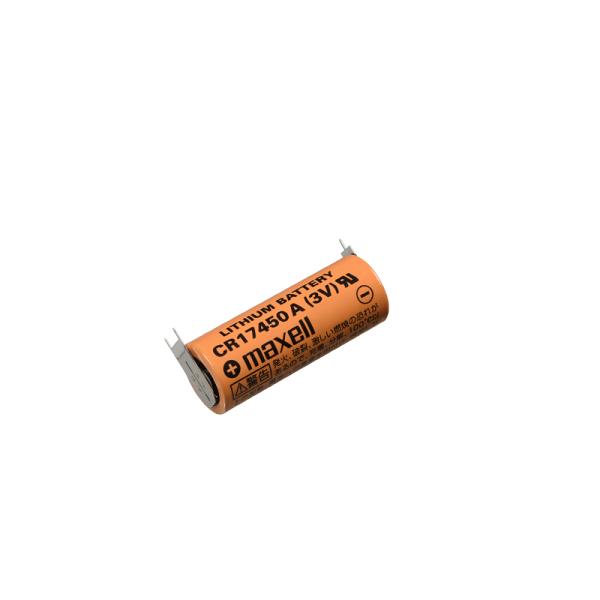

  • Model CR17335A CR17450A CR17450AH CR17500AU

    Nominal voltage (V)

    		 3 3 3 3
    Nominal capacity (mAh)*1 1650 2500 3000 3500
    Nominal discharge current (mA) 5 5 1 1
    Operating
    temperature range (deg. C)*2    		 -40 to +85
    Dimensions*3 Diameter (mm) 17 17 17 17
    Height (mm) 33.5 45 45 50
    Weight (g)*3 17 22 24 26

    1650mAh Cylindrical Industrial Lithium Battery Manganese Dioxide CR Disposable CR17335A

    1650mAh Cylindrical Industrial Lithium Battery Manganese Dioxide CR Disposable CR17335A

    1650mAh Cylindrical Industrial Lithium Battery Manganese Dioxide CR Disposable CR17335A

    1650mAh Cylindrical Industrial Lithium Battery Manganese Dioxide CR Disposable CR17335A

  • Packaging and transportation instructions

    - According to the standard export packaging.

    Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
