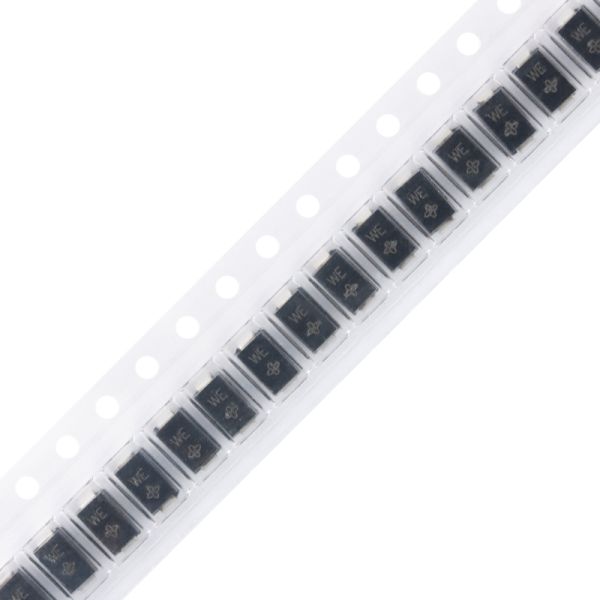

SMAJ5.0CA Transient Voltage Suppression Diodes Designed Specifically To Protectsensitive Electronic Equipment From Voltage Transientsinduced By Lightning And Other Transient Voltage Events.
SMAJ5.0CA Transient Voltage Suppression Diodes Designed Specifically To Protectsensitive Electronic Equipment From Voltage Transientsinduced By Lightning And Other Transient Voltage Events.
SMAJ5.0CA Transient Voltage Suppression Diodes Designed Specifically To Protectsensitive Electronic Equipment From Voltage Transientsinduced By Lightning And Other Transient Voltage Events.
SMAJ5.0CA Transient Voltage Suppression Diodes Designed Specifically To Protectsensitive Electronic Equipment From Voltage Transientsinduced By Lightning And Other Transient Voltage Events.
SMAJ5.0CA Transient Voltage Suppression Diodes Designed Specifically To Protectsensitive Electronic Equipment From Voltage Transientsinduced By Lightning And Other Transient Voltage Events.
SMAJ5.0CA Transient Voltage Suppression Diodes Designed Specifically To Protectsensitive Electronic Equipment From Voltage Transientsinduced By Lightning And Other Transient Voltage Events.
SMAJ5.0CA Transient Voltage Suppression Diodes Designed Specifically To Protectsensitive Electronic Equipment From Voltage Transientsinduced By Lightning And Other Transient Voltage Events.
SMAJ5.0CA Transient Voltage Suppression Diodes Designed Specifically To Protectsensitive Electronic Equipment From Voltage Transientsinduced By Lightning And Other Transient Voltage Events.
Specifications
Brand Name :
Littelfuse
Model Number :
SMAJ5.0CA
Certification :
ROHS
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
10000
Delivery Time :
5-8day
Packaging Details :
T/R
Product Catalog :
(TVS/ESD)
Reverse Cut-offVoltage (Vrwm) :
YOKOGAWA
Clamp Voltage :
HHR-30HF5G1
Pulse PeakCurrent (lpp) :
Nickel-metal
Peak PulsePower (Ppp) :
6V
Breakdown Voltage :
3000mAh
Description

SMAJ5.0CA Transient Voltage Suppression Diodes Designed Specifically To Protectsensitive Electronic Equipment From Voltage Transientsinduced By Lightning And Other Transient Voltage Events.

  • 400W Peak pulse powercapability at 10/1000µswaveform, repetition rate(duty cycle): 0.01%
  • Excellent clampingcapability
  • Typical IR less than 1μAwhen VBR min>12V
  • For surface mountedapplications to optimizeboard space
  • Low profile package
  • Typical failure mode isshort from over-specifiedvoltage or current
  • Whisker test is conductedbased on JEDECJESD201A per its table 4aand 4c
  • IEC-61000-4-2 ESD30kV(Air), 30kV (Contact)
  • ESD protection of datalines in accordance withIEC 61000-4-2
  • EFT protection of datalines in accordance withIEC 61000-4-4
  • Built-in strain relief
  • Fast response time:typically less than 1.0psfrom 0 Volts to VBR min
  • Glass passivated junction
  • Low inductance
  • High temperatureto reflow solderingguaranteed: 260°C/40sec
  • VBR @ TJ= VBR@25°Cx (1+αT x (TJ - 25))(αT:TemperatureCoefficient, typical valueis 0.1%)
  • Plastic package isflammability ratedV-0 per UnderwritersLaboratories
  • Meet MSL level1, perJ-STD-020, LF maximunpeak of 260°C
  • Matte tin lead–free Plated
  • Halogen free and RoHS compliant
  • Pb-free E3 means 2ndlevel interconnect isPb-free and the terminalfinish material is tin(Sn)(IPC/JEDEC J-STD609A.01)
Parameter Symbol Value Unit
Peak Pulse Power Dissipation atTA=25ºC by 10/1000µs Waveform(Fig.2)(Note 1), (Note 2), (Note 5) PPPM 400 W
Power Dissipation on Infinite HeatSink at TL=50OC PD 3.3 W
Peak Forward Surge Current, 8.3msSingle Half Sine Wave (Note 3) IFSM 60 A
Maximum Instantaneous ForwardVoltage at 25A for UnidirectionalOnly (Note 4) VF 3.5/5.0 V
Operating Temperature Range TJ -65 to 150 °C
Storage Temperature Range TSTG -65 to 175 °C
Typical Thermal Resistance Junctionto Lead RθJL 30 °C/W
Typical Thermal Resistance Junctionto Ambient RθJA 120 °C/W
SMAJ5.0CA Transient Voltage Suppression Diodes Designed Specifically To Protectsensitive Electronic Equipment From Voltage Transientsinduced By Lightning And Other Transient Voltage Events. SMAJ5.0CA Transient Voltage Suppression Diodes Designed Specifically To Protectsensitive Electronic Equipment From Voltage Transientsinduced By Lightning And Other Transient Voltage Events. SMAJ5.0CA Transient Voltage Suppression Diodes Designed Specifically To Protectsensitive Electronic Equipment From Voltage Transientsinduced By Lightning And Other Transient Voltage Events. SMAJ5.0CA Transient Voltage Suppression Diodes Designed Specifically To Protectsensitive Electronic Equipment From Voltage Transientsinduced By Lightning And Other Transient Voltage Events.

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
