A GNSS navigation and positioning module with ultra-high sensitivity of 165dBm for unmanned aerial vehicle and vehicle and ship models RW12-A2

1. Product Overview

The RW12-A2 series GNSS navigation module is a brand-new generation of products specially designed by Ruijie Company for unmanned aerial vehicle model aircraft.

This product supports a high-performance multi-system three-mode positioning module, including BDS, GPS, GLONASS, and Galileo.

Global navigation satellite systems such as QZSS and SBAS.

The product features high sensitivity, ultra-low power consumption and small size, and is easy to integrate with unmanned aerial vehicles, LBS, PND and vehicle navigation

In systems and other equipment.

2. Product Features

Ultra-high sensitivity -165dBm

"Small size makes integration easy.

Built-in high-gain low-noise amplifier

An update frequency of up to 10Hz

It supports the NMEA-0183 and UBX protocols

<s:1> RF metal shielding cover to achieve optimal performance in noisy environments

The on-board QMC6309 or QMC5883P geomagnetic sensor (optional) defaults to QMC6309

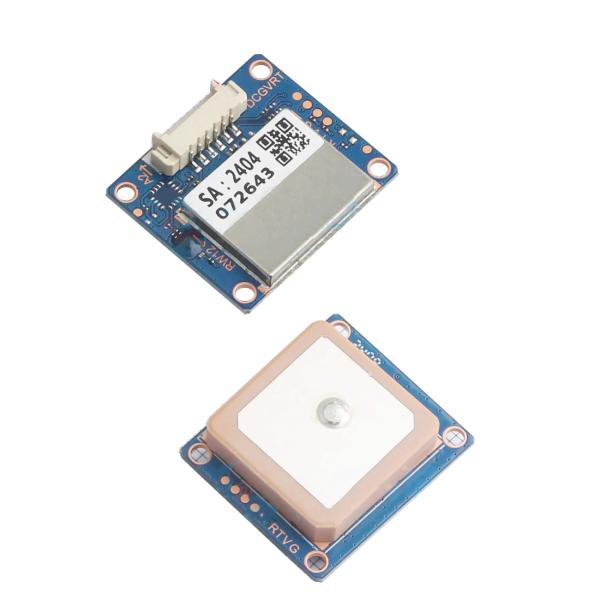

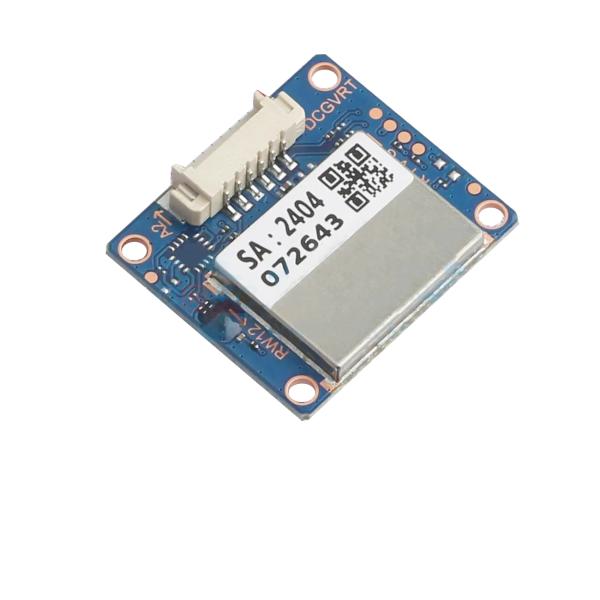

3. Product appearance

4. Application fields

Unmanned aerial vehicles and vehicle and ship models

Vehicle positioning monitoring

Product mechanical specifications

Product dimensions: 1) When installing a 4mm thick antenna, the maximum external dimensions are length * width * height =24.4*21.6*7.1mm, with a tolerance of ±0.5mm

Output port specification: 1.25*6P female socket

Product weight: Approximately 7.7g

Packaging and transportation instructions

- According to the standard export packaging.

Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
