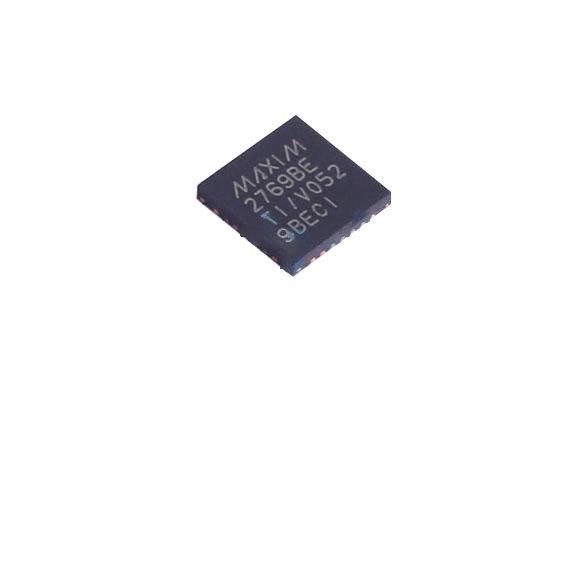

General-purpose GPS Receiver High-performance automotive-grade GPS RF Receiver supporting GLONASS Galileo and Beidou positioning systems RF Receiver Universal GPS Receiver MAX2769BETI/V+T

The MAX2769B is a next-generation Global NavigationSatellite System (GNSS) receiver covering GPS, GLONASS,Galileo, and Compass navigation satellite systems ona single chip. This single-conversion GNSS receiver isdesigned to provide high performance for industrial andautomotive applications.Designed on Maxim’s advanced, low-power SiGe BiCMOSprocess technology, the MAX2769B offers the highestperformance and integration at a low cost. Incorporatedon the chip is the complete receiver chain, including adual-input LNA and mixer, followed by the image-rejectedfilter, PGA, VCO, fractional-N frequency synthesizer,crystal oscillator, and a multibit ADC. The total cascadednoise figure of this receiver is as low as 1.4dB.The MAX2769B completely eliminates the need for external IF filters by implementing on-chip monolithic filtersand requires only a few external components to form acomplete low-cost GPS RF receiver solution.The MAX2769B is the most flexible receiver on the market. The integrated delta-sigma fractional-N frequencysynthesizer allows programming of the IF frequencywithin a ±30Hz (fXTAL = 32MHz) accuracy while operating with any reference or crystal frequencies that areavailable in the host system. The ADC outputs CMOSlogic levels with 1 or 2 quantized bits for both I and Qchannels, or up to 3 quantized bits for the I channel. I andQ analog outputs are also available.The MAX2769B is packaged in a 5mm x 5mm, 28-pin thinQFN package with an exposed paddle.ApplicationsAutomotive Navigation SystemsLocation-Enabled Mobile HandsetsPNDs (Personal Navigation Devices)Telematics (Asset Tracking, InventoryManagement)Marine/Avionics NavigationSoftware GPSLaptops and Netbooks

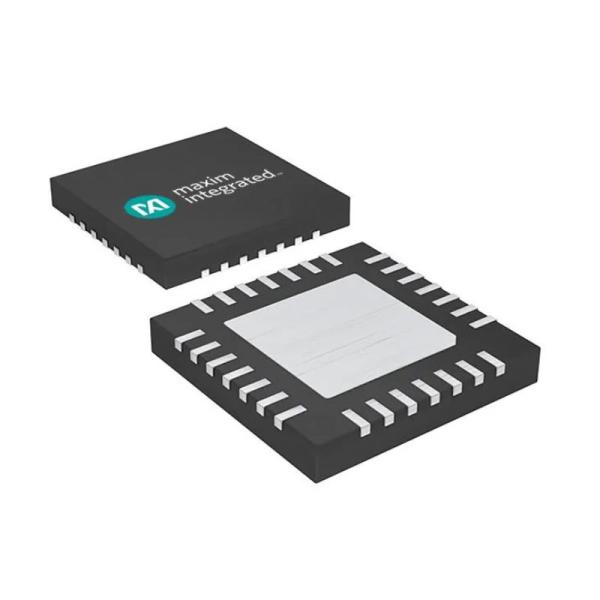

FeaturesS AEC-Q100 Automotive QualifiedS GPS/GLONASS/Galileo/Compass SystemsS 40pF Output Clock Drive CapabilityS No External IF SAW or Discrete Filters RequiredS Programmable IF FrequencyS Fractional-N Synthesizer with Integrated VCOSupports Wide Range of Reference FrequenciesS Dual-Input Uncommitted LNA for Separate Passiveand Active Antenna InputsS 1.4dB Cascade Noise FigureS Integrated Crystal OscillatorS Integrated Active Antenna SensorS 2.7V to 3.3V Supply VoltageS Small, 28-Pin, RoHS-Compliant, Thin QFN LeadFree Package (5mm x 5mm)
