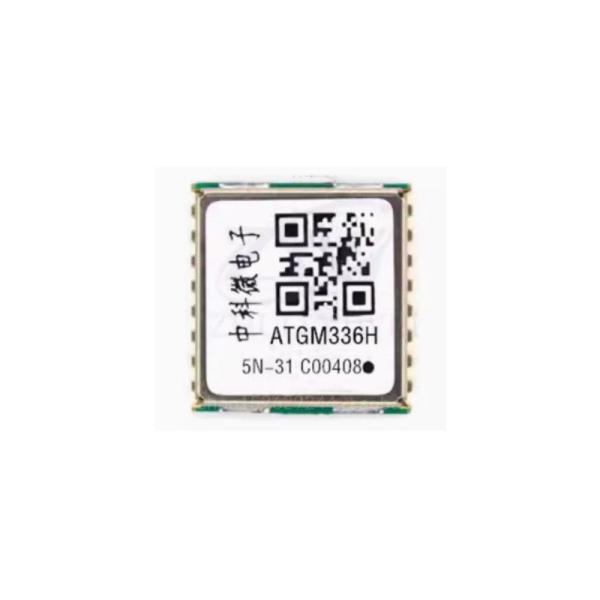

GNSS GPS Modules Satellite positioning module GPS+BDS ATGM336H-5N31

The ATGM336H-5N series modules are the general term for a series of high-performance BDS/GNSS all-constellation positioning and navigation modules with a size of 9.7X10.1. This series of module products are all based on the fourth-generation low-power GNSSSOC single-chip - AT6558 of Zhongke Wei, supporting multiple satellite navigation systems, including China's BDS (Beidou Navigation Satellite System), the United States' GPS, Russia's GLONASS, and the European Union's GALILEO. Japan's QZSS and satellite augmentation systems SBAS (WAAS, EGNOS, GAGAN, MSAS). The AT6558 is a truly six-in-one multi-mode satellite navigation and positioning chip, featuring 32 tracking channels. It can simultaneously receive GNSS signals from six satellite navigation systems and achieve joint positioning, navigation and timing. The ATGM336H-5N series modules have advantages such as high sensitivity, low power consumption and low cost. They are suitable for vehicle navigation, handheld positioning and wearable devices, and can directly replace the U-blox MAX series modules.

Performance indicators <e:1> Excellent positioning and navigation functions, supporting single-system positioning of BDS/GPS/GLONASS satellite navigation systems, as well as multi-system joint positioning of any combination, and supporting QZSS and SBAS systems <s:1> support A-GNSS <s:1> cold start capture sensitivity: -148 DBM <s:1> tracking sensitivity: -162 DBM <s:1> Positioning accuracy: 2.5 meters (CEP50) <e:1> First positioning time: 32 seconds <e:1> Low power consumption: continuous operation <25mA (@3.3V) <e:1> Built-in antenna detection and antenna short-circuit protection function

Application fields: vehicle positioning and navigation, mobile phones, tablet computers, handheld devices, embedded positioning devices, wearable devices

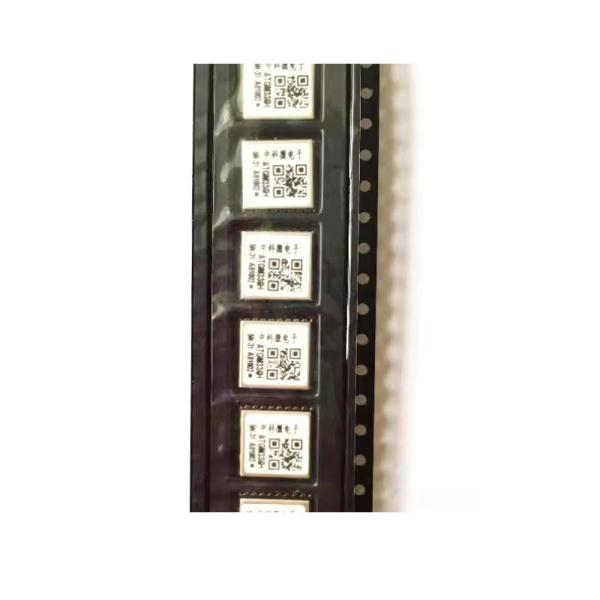

Packaging and transportation instructions

- According to the standard export packaging.

Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.

Q&A

1. How to obtain the price?

We usually quote within 24 hours after receiving your inquiry (except weekends and holidays). If you are in urgent need of a price, please send us an email or contact us in any other way so that we can provide you with a quotation.

2. What is your delivery time?

This depends on the quantity of the order and the season in which you place the order. Usually, we can ship the goods within 7 to 15 days (for small batches), and for large batches, it takes about 30 days.

3. What are your payment terms?

Factory price, 30% deposit, 70%T/T payment before shipment.

4. What is the mode of transportation?

It can be transported by sea, air or express delivery (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing an order.

5. How do you help our business establish a long-term and good relationship?

We maintain good quality and competitive prices to ensure that our customers benefit.

2. We respect every customer as our friend. We do business with them sincerely and make friends with them, no matter where they come from.
