The multi-satellite system navigation L26K module A58 supports GPS and Beidou positioning GNSS module L76KB-A58

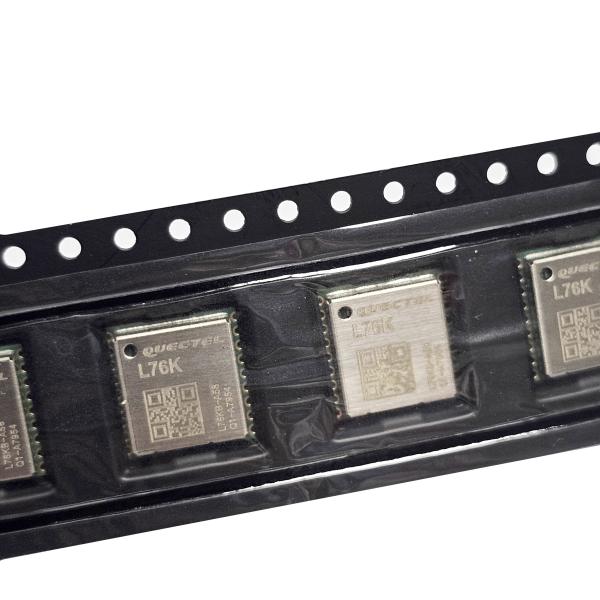

The voltage range of the L76K module is 2.7 to 3.4 volts, with a typical value of 3.3 volts. This module supports GPS, BeiDou, GLONASS and QZSS satellite navigation systems, and also supports AGNSS function. It is equipped with a built-in low-noise amplifier (LNA), enabling high-sensitivity, high-precision positioning as well as rapid tracking and capture of positioning signals. Supports active antenna detection and short-circuit protection. The antenna status can be output and displayed through NMEA statements, enabling the host to query the antenna status in a timely and convenient manner. The L76K is a surface mount module with 18 LCC pads. It features a compact package with dimensions of only 10.1mm × 9.7mm × 2.0mm. This module fully complies with the EU RoHS standard.

The L76K supports GPS + BeiDou by default. You can switch galaxies through the following commands (not saved in case of power failure) : ⚫ $PCAS04,1*18: single GPS⚫ $PCAS04,2*1B: single BeiDou⚫ $PCAS04,3*1A: GPS + BeiDou⚫ $PCAS04,4*1D: single GLONASS⚫ $PCAS04,5*1C: GPS + GLONASS⚫ $PCAS04,6*1F: BeiDou + GLONASS⚫ $PCAS04,7*1E: GPS + BeiDou + GLONASS3.4.2. Standby Mode Standby mode is a low-power mode. In this mode, the I/O, POR and RTC domains remain valid, but the kernel, RF, LNA and TCXO are turned off, and the module stops satellite search. Lowering the WAKE_UP pin will put the module into Standby mode; When the WAKE_UP pin is released, the module will return to the Full on mode. 3.4.3. Backup Mode The data consumption in Backup mode is lower than that in Standby mode. In this mode, only the RTC domain is valid, and the RTC domain contains the information required for the module to start up quickly. Cut off the power supply of VCC and keep the V_BCKP pin powered normally. The module will enter the Backup mode from the Full on mode. At this point, as long as the VCC pin is powered on, the module will immediately enter the Full on mode.

Passive antenna frequency range: 1559-1609 MHz voltage standing wave ratio: < 2 (typical value) Polarization: right-hand circular polarization Passive gain: > 0 dBi Active antenna frequency range: 1559-1609 MHz voltage standing wave ratio: < 2 (typical value) Polarization: right-hand circular polarization passive gain: > 0 dBi noise figure Total gain of active antenna < 1.5 dB: < 17 dB (typical value)
