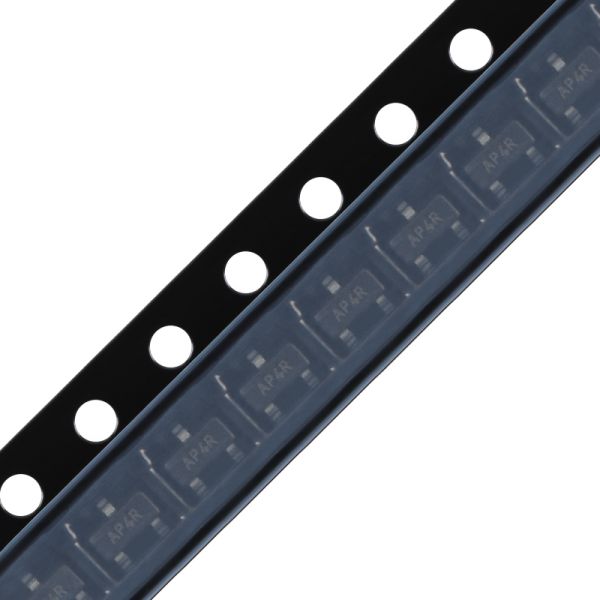

MCP9701AT-E/TT Low-Power Linear Active Thermistor ICs
MCP9701AT-E/TT Low-Power Linear Active Thermistor ICs
MCP9701AT-E/TT Low-Power Linear Active Thermistor ICs
MCP9701AT-E/TT Low-Power Linear Active Thermistor ICs
MCP9701AT-E/TT Low-Power Linear Active Thermistor ICs
MCP9701AT-E/TT Low-Power Linear Active Thermistor ICs
Specifications
Brand Name :
MICROCHIP
Model Number :
MCP9701AT-E/TT
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
10000
Delivery Time :
5-8day
Packaging Details :
T/R
Operating temperature range (°C) :
-10℃~+125℃
Interface type :
-
Operating Voltage :
3.1V~5.5V
standby current :
-
Temperature conversion time :
-
Temperature resolution :
-
Description
MCP9701AT-E/TT Low-Power Linear Active Thermistor ICs
The MCP9701AT-E/TT is a low-power linear active thermistor IC designed for precise temperature sensing applications across various industries.
Key Features
  • Tiny analog temperature sensor with compact form factor
  • Available in multiple packages: SC70-5, SOT-23-3, TO-92-3
  • Wide temperature measurement range: -40°C to +125°C (Extended Temperature)
  • High temperature variant: -40°C to +150°C (MCP9700, SOT-23-3 and SC70-5 only)
  • High accuracy: ±2°C maximum at 0°C to +70°C (MCP9700A/9701A)
  • Standard accuracy: ±4°C maximum at 0°C to +70°C (MCP9700/9701)
  • Optimized for analog-to-digital converters (ADCs)
  • Temperature coefficient: 10.0 mV/°C typical (MCP9700/9700A)
  • Temperature coefficient: 19.5 mV/°C typical (MCP9701/9701A)
  • Wide operating voltage range: 2.3V to 5.5V (MCP9700/9700A)
  • Operating voltage: 3.1V to 5.5V (MCP9701/9701A)
  • Low operating current: 6 µA typical
  • Optimized to drive large capacitive loads
Typical Applications
  • Hard disk drives and other PC peripherals
  • Entertainment systems
  • Home appliances
  • Office equipment
  • Battery packs and portable equipment
  • General purpose temperature monitoring
Pinout Information
Pin No. SC70 Pin No. SOT-23 Pin No. TO-92 Symbol Function
1 -- -- NC No Connect (this pin is not connected to the die)
2 3 3 GND Power Ground Pin
3 2 2 VOUT Output Voltage Pin
4 1 1 VDD Power Supply Input
5 -- -- NC No Connect (this pin is not connected to the die)
MCP9701AT-E/TT Low-Power Linear Active Thermistor ICs
MCP9701AT-E/TT Low-Power Linear Active Thermistor ICs
MCP9701AT-E/TT Low-Power Linear Active Thermistor ICs
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
  • How to obtain the price?
    We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
  • What is your delivery time?
    Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
  • What are your payment terms?
    Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
  • What are the shipping options?
    Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
