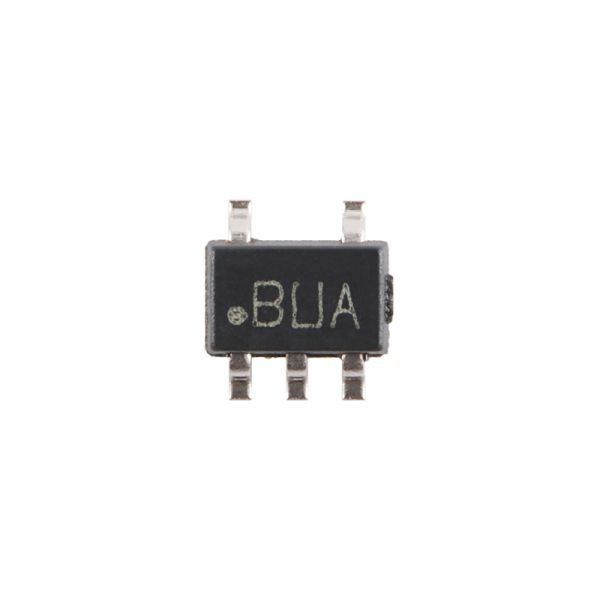

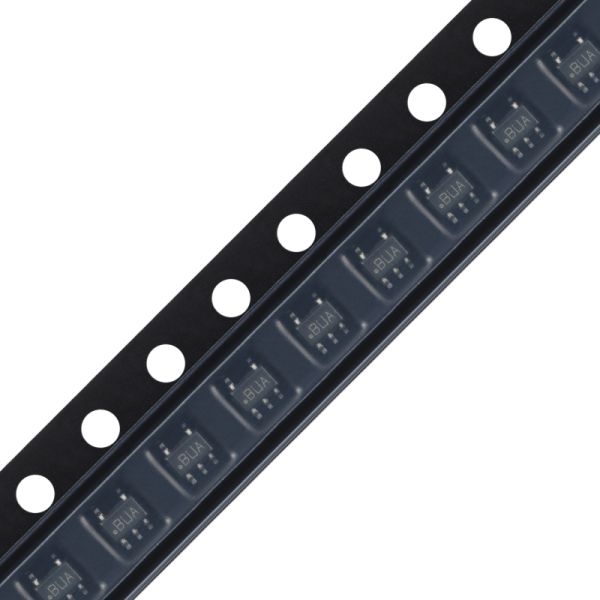

LMT87DCKR SC70/TO-92/TO-92S,Analog Temperature Sensors With Class-AB Output
LMT87DCKR SC70/TO-92/TO-92S,Analog Temperature Sensors With Class-AB Output
LMT87DCKR SC70/TO-92/TO-92S,Analog Temperature Sensors With Class-AB Output
LMT87DCKR SC70/TO-92/TO-92S,Analog Temperature Sensors With Class-AB Output
LMT87DCKR SC70/TO-92/TO-92S,Analog Temperature Sensors With Class-AB Output
LMT87DCKR SC70/TO-92/TO-92S,Analog Temperature Sensors With Class-AB Output
Specifications
Brand Name :
TI
Model Number :
LMT87DCKR
Certification :
ROHS
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
10000
Delivery Time :
5-8day
Packaging Details :
T/R
Local sensor accuracy (max) :
2.7
Rating :
Catalog
Operating temperature range (°C) :
-50 to 150
Supply voltage (min) (V) :
2.7
Supply voltage (max) (V) :
5.5
Supply current (max) (µA) :
8.1
Interface type :
Analog output
Description
LMT87DCKR SC70/TO-92/TO-92S Analog Temperature Sensors With Class-AB Output
High-precision analog temperature sensors featuring Class-AB output for accurate thermal monitoring across a wide range of applications.
Key Features
  • LMT87LPG (TO-92S package) features fast thermal time constant: 10-s typical (1.2 m/s airflow)
  • Exceptional accuracy: ±0.4°C typical
  • Low voltage operation: 2.7V
  • Average sensor gain: -13.6 mV/°C
  • Ultra-low quiescent current: 5.4 µA
  • Wide temperature range: –50°C to 150°C
  • Short-circuit protected output
  • Push-pull output with ±50 µA drive capability
  • Footprint compatible with industry-standard LM20/19 and LM35 temperature sensors
  • Cost-effective alternative to thermistors
Applications
  • Automotive systems
  • Infotainment and cluster
  • Powertrain systems
  • Smoke and heat detectors
  • Drones
  • Appliances
Part Number Specifications
Part Number Package Body Size (Nom)
LMT87 SOT (5) 2.00 mm × 1.25 mm
TO-92 (3) 4.30 mm × 3.50 mm
TO-92S (3) 4.00 mm × 3.15 mm
