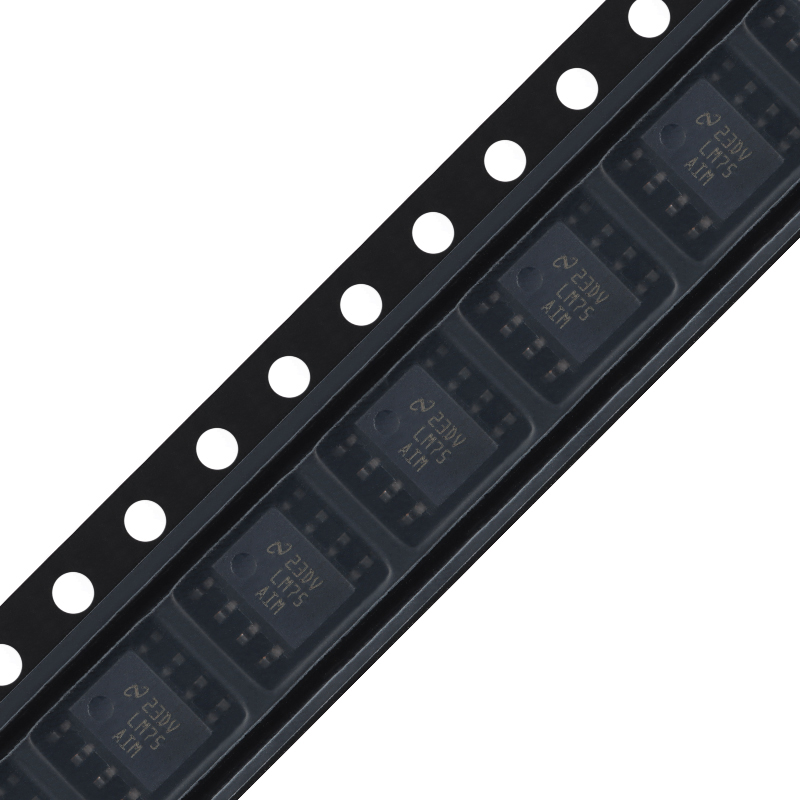

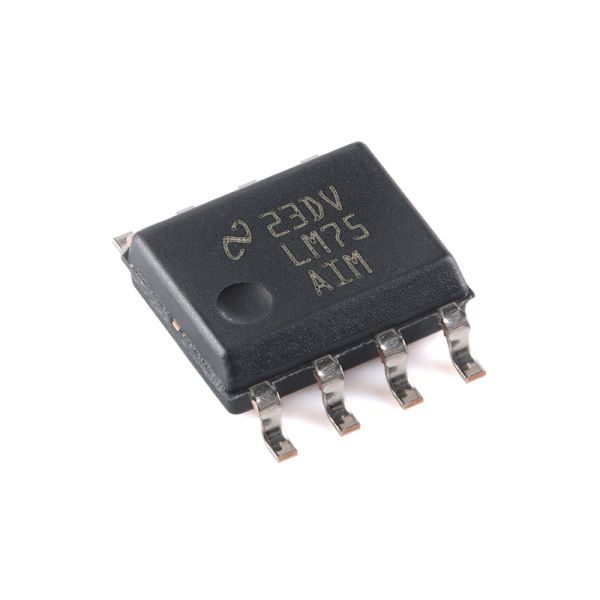

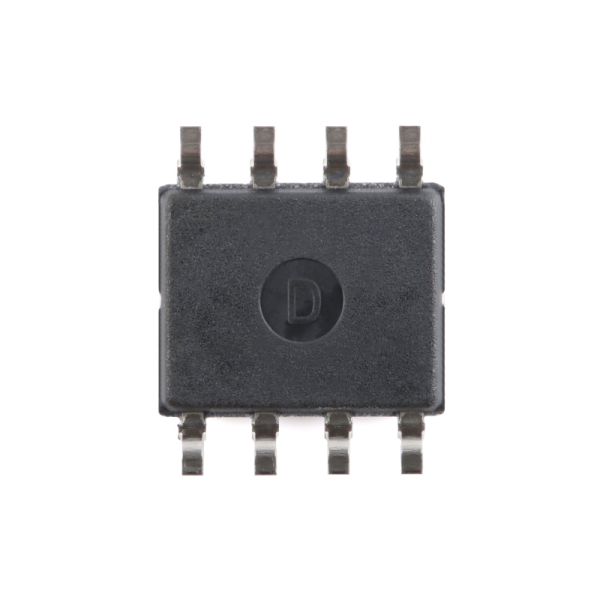

LM75AIMX/NOPB Digital Temperature Sensor And Thermal Watchdog With Two-Wire Interface
LM75AIMX/NOPB Digital Temperature Sensor And Thermal Watchdog With Two-Wire Interface
LM75AIMX/NOPB Digital Temperature Sensor And Thermal Watchdog With Two-Wire Interface
LM75AIMX/NOPB Digital Temperature Sensor And Thermal Watchdog With Two-Wire Interface
LM75AIMX/NOPB Digital Temperature Sensor And Thermal Watchdog With Two-Wire Interface
LM75AIMX/NOPB Digital Temperature Sensor And Thermal Watchdog With Two-Wire Interface
Specifications
Brand Name :
TI
Model Number :
LM75AIMX/NOPB
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
10000
Delivery Time :
5-8day
Packaging Details :
T/R
Operating temperature range (°C) :
-55 to 125
Rating :
Catalog
Supply current (max) (µA) :
500
Interface type :
I2C, SMBus
Features :
ALERT, UL recognized
Supply voltage (min) (V) :
2.7
Description
LM75AIMX/NOPB Digital Temperature Sensor and Thermal Watchdog
The LM75AIMX/NOPB is a high-precision digital temperature sensor and thermal watchdog featuring a two-wire interface for reliable thermal management in industrial applications.
Key Features
  • No external components required for operation
  • Shutdown mode for minimal power consumption
  • Supports up to eight devices on a single bus
  • Power-up defaults enable standalone thermostat operation
Technical Specifications
Parameter Value
Supply Voltage Range 2.7 V to 5.5 V
Operating Current 280 μA (Typical)
Shutdown Current 4 μA (Typical)
Temperature Accuracy (-25°C to 100°C) ±2°C (Maximum)
Temperature Accuracy (-55°C to 125°C) ±3°C (Maximum)
Product Description
The LM75A is an industry-standard digital temperature sensor featuring an integrated sigma-delta analog-to-digital converter (ADC) and I2C interface. It delivers 9-bit digital temperature readings with exceptional accuracy across wide temperature ranges.
Operating with a single supply from 2.7V to 5.5V, the LM75A communicates via a 2-wire interface operating at up to 400 kHz. Three address pins allow up to eight devices to operate on the same bus. The sensor includes a dedicated overtemperature output (O.S.) with programmable limit and hysteresis, along with programmable fault tolerance for defining consecutive error conditions before activation.
Applications
  • General System Thermal Management
  • Communications Infrastructure
  • Electronic Test Equipment
  • Environmental Monitoring
Device Information
(1) Package specifications
Part Number Package Body Size (Nominal)
LM75A SOIC (8) 4.90 mm × 3.91 mm
LM75A VSSOP (8) 3.00 mm × 3.00 mm
LM75AIMX/NOPB Digital Temperature Sensor And Thermal Watchdog With Two-Wire Interface LM75AIMX/NOPB Digital Temperature Sensor And Thermal Watchdog With Two-Wire Interface LM75AIMX/NOPB Digital Temperature Sensor And Thermal Watchdog With Two-Wire Interface
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.
Frequently Asked Questions
  • How to obtain the price?
    We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
  • What is your delivery time?
    Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
  • What are your payment terms?
    Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
  • What are the shipping options?
    Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
